Help CenterSG Power Transformer
Related Products
Specifications
1. IEC60076&CE2. Single phase
3. 3 years Quality warranty
4. Easy installation
5. SG power transformer manufacturer
About us
Our transformers sell well all over the world, and are exported to Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa, etc. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future!
Trade Terms
1.Payment: 30% in advance, balanced 70% to be paid before dispatch. L/C
2.Port of loading: Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time:10-30 days according to order quantities.
Why Us?
1.Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2.Competitive production capacity: monthly production more than 1500 sets
3.Manufactuer's price: Factory direct sale, most competitive price.

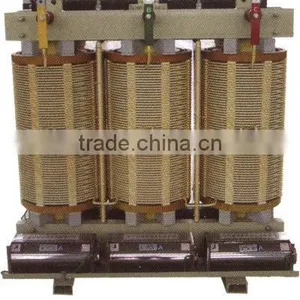

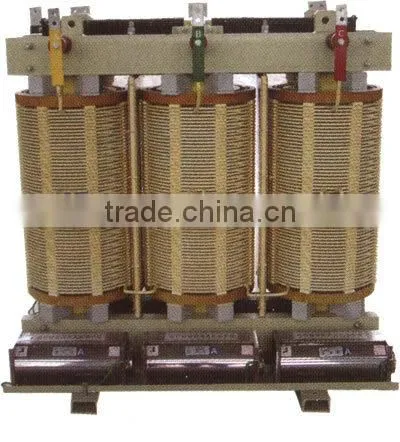

SG three phase dry power transformer
1.Three Phase oil immersed Distribution Transformer with highest standard of quality,reliability and durability.
2.It is suitable for frequency 50Hz electric network system,can be used in Transmission and distribution project.
Main technical characters
1)The three-phase three-pillar structure outside the box rolling.
2) All fasteners have been processed with special treatment to prevent them from loosening
3) High-quality rubber sealing material, which can prevent the transformers form aging or leakage
4)The ripple tank, sealed structure, no leakage, maintenance-free
5) Core is not deformed and not rust
Technical Specification :
Ratings |
CRGO - Upto 2000 kVAAMT - Upto 1000 kVA |
Applicable Standards |
IS, IEC, ANSI, JIS, BS etc. |
Cooling |
ONAN, OA |
Insulating Fluid |
Mineral Oil to specification |
Frequency |
50 Hz, 60 Hz |
Polarity |
As specified |
Primary voltage |
Upto 33 kV |
Secondary Voltage |
415, 433 V (Other Voltages as required) |
Winding material |
Copper / Aluminium |
Taping range |
± 5% in steps of 2.5% (Other tapings as required) |
Model&capacity(KVA) |
Dimension(cm) |
Install size(cm) |
weight |
SG-1.5 |
18x11x18 |
8x15 |
9 |
SG-2 |
23x15x22 |
10x14 |
13 |
SG-3 |
26x20x25 |
12x18 |
23 |
SG-4 |
30x20x28 |
14x20 |
28 |
SG-5 |
30x20x33 |
15x27 |
32 |
SG-6 |
30x21x33 |
15x31 |
53 |
SG-8 |
35x21x35 |
15x32 |
62 |
SG-10 |
42x21x42 |
15x32 |
75 |
Factory certificate:
Factory pictures
