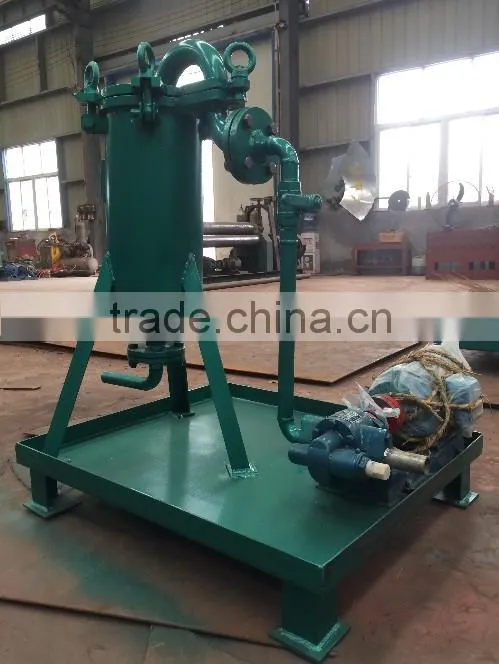

Mixing Oil Filter
Mix oil filter is a kind of applied to vegetable oil after leaching of the filtering of the mixed oil of mechanical
equipment.Filtered oil greatly reduces the mix oil at the end of the meal in the content, improve the effect of
the mixed oil evaporation,for the comprehensive utilization of wool oil quality improvement and by-product
was significant.
Features
1. Compact structure, good filtering effect, filter the mixed oil impurity content is about 0.2%
2. Mix the oil filter to realize continuous operation, equipment is not easy to jam, convenient disassembly,
low labor intensity
3. Improve the quality of the leaching hair oil, at the same time to provide the premise for making plant of
phospholipids
4. Increase the use time equipment, increase the rate of refining, filtration precision is higher
5. Recoil type cleaning ,cleaning mesh was adopted, the lifetime of filter was prolonged
Structure performance
the mixed oil filter HL is supported by supporting seat a horizontal band around the circular cylinder head,
cylinder body has several pieces of circular filter plate, fixed on a with hollow shaft, hollow shaft rotate at
the age of filter plate.Horizontal cylinder is installed on a set of several solvents nozzle, can be carried out
on the filter plate is not regular cleaning. Cylinder bottom set a filter residue collection measures, through
the ZW type self-priming sewage pump will play back to leaching residue.Mixed oil imports,free gas outlet
is located in the upper barrel.Hollow shaft is driven by a chain turn to attack.After the filter net mixed oil
pool in the hollow shaft through rotary joint consists of pumps.
Technical Parameters
Item |
Extraction Capacity(t/d) |
Power(Kw) |
Mainshaft speed(rpm) |
Overall dimension |
Filter Area(m2) |
Machine Weight(Kg) |
HHY15 |
30 |
2.2 explosion proof type |
10 |
2430×1800×1800 |
15 |
1750 |
HHY20 |
50-100 |
2.2 explosion proof type |
10 |
2430×2000×2000 |
20 |
2080 |
HHY25 |
100-150 |
2.2 explosion proof type |
10 |
2430×2000×2000 |
25 |
2450 |
HHY30 |
200-300 |
3.0 explosion proof type |
10 |
2790×2000×2000 |
30 |
2450 |
HHY40 |
400-600 |
4.0 explosion proof type |
10 |
2830×2200×2200 |
40 |
3560 |
HHY60 |
600-800 |
4.0 explosion proof type |
10 |
2830×2260×2200 |
60 |
4000 |
