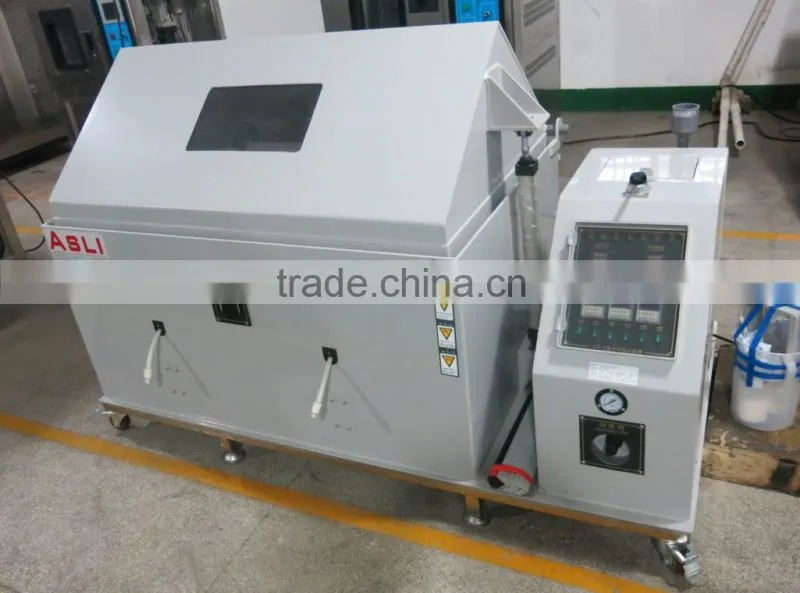

Help CenterTemperature Humidity Salt Spray Test Machine
Related Products
-
Salt Mist Corrosion Test ChamberUS$ 2,000 - 10,000MOQ: 1 Set -
Vibration Absorber Temp. Humidity Saline Test ChamberUS$ 5,500 - 9,500MOQ: 1 Set
-
Climatic and Corrosion Test ChamberUS$ 5,500 - 9,500MOQ: 1 Set
-
Salt Spray EquipmentUS$ 2,000 - 10,000MOQ: 1 Set
-
Cyclic Corrosion Testing MachineUS$ 2,000 - 10,000MOQ: 1 Set
Temperature Humidity Salt Spray Test Machine application:
It is used for imitating natural status in increase imitation test. The imitating condition is harder than status that we usually meet. The tester can combine the follow status such as: salt smog, dry, humidity, normal temperature, low temperature.The tester is for product used in intense changeable environment, such as: parts of automobile, navigation equipment, camera equipment, building material, electroplate coating and resistant to metal electrolytic corrosion in electrical system.
Temperature Humidity Salt Spray Test Machine features
1. Adopt Humidity and temperature Controller with LCD touch screen digital display, RS-232 or RS-485 communication interface. (Temperature and humidity recorder, can keep complete records of the humidity and temperature graphs. This is optional.)
2. Operation mode: programmable or constant
3 Capacity of Programmable operation is 100 groups 100 steps per group, and 100H per step
4. Capacity of constant operation is 10000H.
5. Memory function: in case of a power cut, the machine can resume the unfinished test as soon as power is recovered.
Temperature Humidity Salt Spray Test Machine technical parameters:
Model |
THS-900A |
THS-900B |
Test Standard |
ACSS,SOAK,DRYAIR,HUMI,ROOMAIR |
ACSS,DRYAIR,HUMI |
|
Inner Dimension W×H×D (mm) |
900×600×500 |
900×600×500 |
|
External Dimension W×H×D (mm) |
1500×1300×1000 |
1500×1300×1000 |
Temperature Range |
-10°C ~ +80°C |
RT +10 °C ~ +80°C |
Humidity Range |
60% ~ 95%R.H. (Temperature RT+10°C ~ 70°C) |
60% ~ 95%R.H.( Temperature 50°C ~ 70°C) |
|
Indication Resolution / Distribution Uniformity of Temperature and Humidity |
0.1°C; 0.1% R.H./±2.0°C; ±3.0% R.H. |
|
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
|
|
Pressure Bucket T emperature |
Saline test method (NSS ACSS) 47±1 °C Corrosion Test (CASS)63±1 °C |
|
|
Compressed Air Pressure (KGf) |
1.0~6.0 |
|
Spray Volume |
1.0~2.0ml /80cm² /h(working at least 16 hours, and take the average value) |
|
Spray Method |
Continuous Spray |
|
Power |
AC220V 20A |
AC220V 15A |
