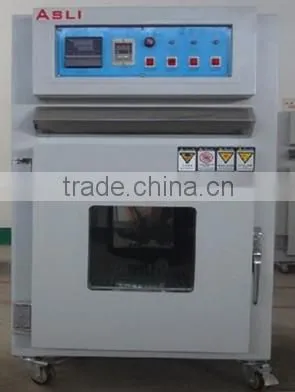

Vacuum test chamber factory
Application:
High temperature oven are used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.
Features:
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating
Technical Parameters:
Model |
RHD - 45 |
RHD - 60 |
RHD - 90 |
RHD - 120 |
Internal Dimension W×H×D(mm ) |
450×400×400 |
500×600×500 |
600×900×500 |
800×1200×700 |
External Dimension W×H×D(mm ) |
650×900×550 |
700×1200×650 |
850× 1600×700 |
1200× 1680×900 |
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated. |
|||
Temperature Range |
RT-200ºC; (300-500ºC is optional) |
|||
Analytic Accuracy / Distribution Uniformity of Temperature |
0.1ºC/±2.0ºC;( When temperature is 100ºC) |
|||
Control Accuracy of Temperature |
±0.5ºC; |
|||
Temperature Rising Speed Rate |
Temperature rising speed rate: RT~200ºC; Approx. 35mins |
|||
Control Method |
Micro PID+SSR+Timer |
|||
Storage Shelf |
Two layers |
|||
Observation Glass Window |
When temperature is RT-200ºC ,with observation glass widow When temperature is 200ºC-500ºC ,without observation glass widow |
|||
Power |
AC 220V(±10%), 1 ø 3 Lines ,50/60HZ ; AC 380 V(±10%) ,3 ø 5 Lines,50/60HZ |
|||
