Test Chambers for Solar Panels and Photovoltaic Modules
High-Low Temperature and Temperature/Humidity Test Chambers
Custom sizes and configurations available.
Suitable for the following test standards:
Humidity Freeze Test
+85°C ± 2°C , 85% ± 5% RH / -40°C ± 3°C
To determine the ability of the module to withstand the effects of high temperature and humidity followed by sub-zero temperatures.
IEC61215, 10.12 (JIS C-8990)
IEC61646, 10.12 (JIS C-8991)
Thermal Cycling Test
-40°C / +90°C
To make an assessment of the module's ability to withstand exposure to several environmental conditions during transportation and/or storage.
JIS C-8917
JIS C-8938
-40°C / +85°C
To make an assessment of the module's ability to withstand exposure to several environmental conditions during transportation and/or storage.
IEC61215, 10.11 (JIS C-8990)
IEC61646, 10.11 (JIS C-8991)
Damp Heat Test
+85°C ± 2°C , 85% ± 5% RH
To evaluate the ability of the module for use and/or storage under high temperature and humidity.
IEC60068-2-78 (JID C-8917, C-8938, C-60068-2-3)
To determine the ability of the module to withstand the effects of long-term penetration of humidity.
IEC61215, 10.13 (JIS C-8990)
IEC61646, 10.13 (JIS C-8991)
Temperature/Humidity Cycling Test
+85°C ± 2°C , 85% ± 5% RH / -40°C ± 3°C
To determine the deterioration level for use and/or storage in short time under condition of temperature change in high relative humidity.
JIS C-8917
JIS C-8638
Low Temperature Sub-Cycle Test
+65°C ± 2°C , 93% ± 3% RH /+25°C ± 2°C , 80-96% RH / -10°C ± 3°C
IEC60068-2-38, 6.3.1 (JIS C-8962)
Temperature Test
+85°C ± 2°C
To evaluate the ability of the module for use and/or storage under high temperature
IEC60068-2-2, (JIS C-8917, C-60068-2-2)
IEC60068-2-2, (JIS C-8938, C-60068-2-2)
Main Technical Parameters of the Test Chamber :
Model |
THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 80℃ (80℃ ~150℃ is optional) |
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
|
Indication Resolution/Distribution Uniformity of Temperature & Humidity |
0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H. |
|
Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. |
|
Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
Cooling System |
Water cooled |
Protection Devices |
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories |
Slope for cart , Recorder, Water Purifier, Dehumidifier |
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
Power |
AC 380 V(±10%),50/60HZ ,3 Phase 5 Lines |

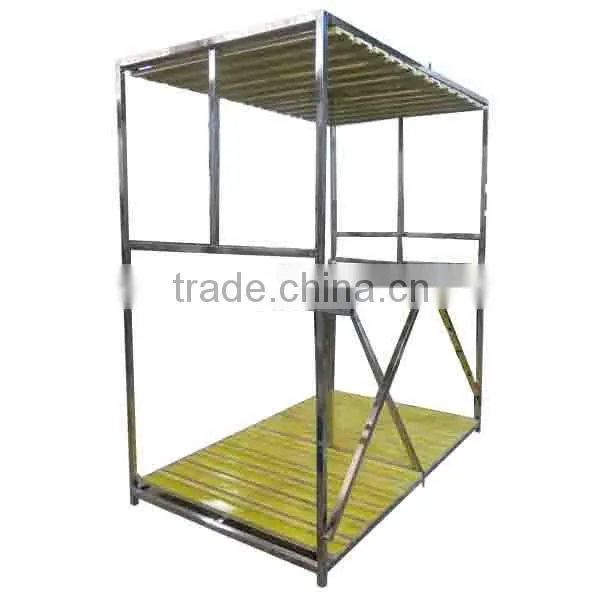

More Pictures for reference :
...
