Help CenterAutomobile Part Electrodynamic High Frequency Vibration Test System
Related Products
-
High Frequency Vibration Test BenchUS$ 27,500 - 80,000MOQ: 1 Set -
High Frequency Electrodynamic Vibration Test SystemUS$ 27,500 - 80,000MOQ: 1 Set
-
Electrodynamic Shaker & Vibration Testing EquipmentUS$ 27,500 - 80,000MOQ: 1 Set
-
Non-standard Customized Air Cooled Vibration Test SystemUS$ 27,500 - 80,000MOQ: 1 Set
-
X,Y,Z Axial High Frequency Vibration Testing Equipment/ Test Machine/ Test TableUS$ 25,000 - 250,000MOQ: 1 Set

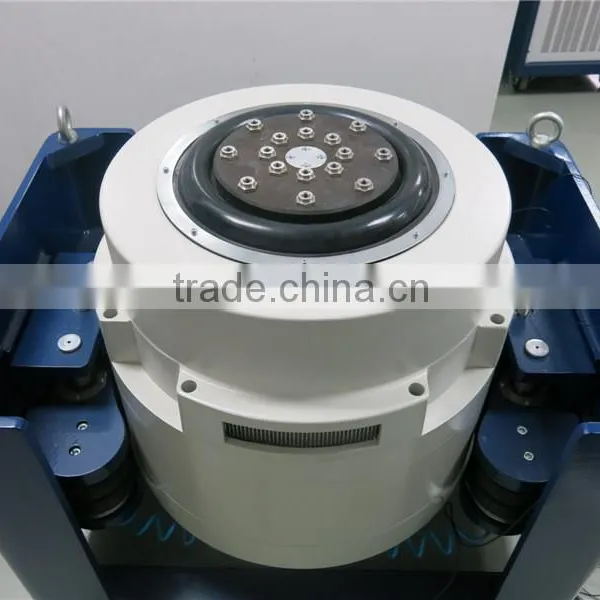

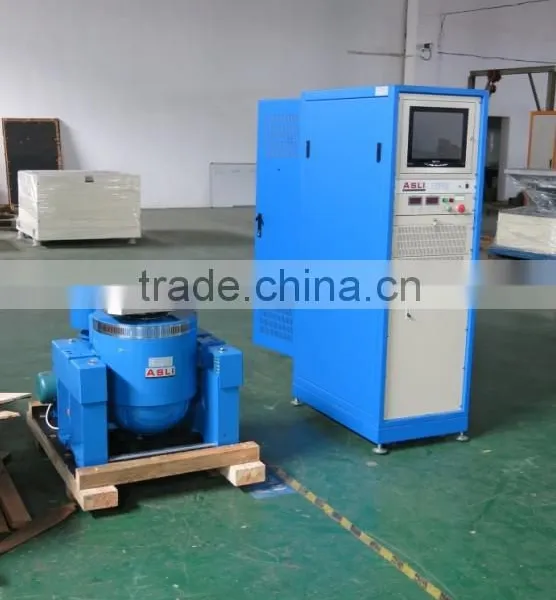

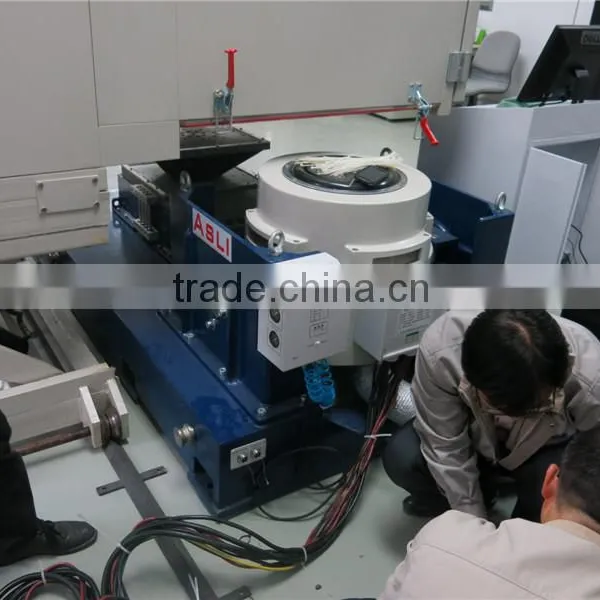

Automobile Part Electrodynamic High Frequency Vibration Test System Application:
We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit structure',self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation'
advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in
national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications,
home appliances and other fields.
Automobile Part Electrodynamic High Frequency Vibration Test System Feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
Automobile Part Electrodynamic High Frequency Vibration Test System Technical Parameters:
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) |
Rated Speed(m/s) |
Rated Replacement (p-p)mm |
Max. Loading (Kg) |
moving coil(Kg) |
Dimension of Moving coil(mm) |
ES-1 |
1000 |
1000 |
3-3500 |
400 |
1.2 |
25 |
70 |
2.5 |
Φ150 |
ES-2 |
2000 |
2000 |
3-3500 |
800 |
1.6 |
25 |
70 |
2.5 |
Φ150 |
ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
ES-60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
ES-100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |
ES-160 |
160000 |
160000 |
3-2100 |
1000 |
1.8 |
51 |
1500 |
150 |
Φ600 |
ES-200 |
200000 |
200000 |
3-2000 |
1000 |
1.8 |
51 |
2500 |
200 |
Φ650 |
ES-350 |
350000 |
350000 |
3-1700 |
1000 |
1.8 |
51 |
4500 |
300 |
Φ870 |
ASLI Certifications:
