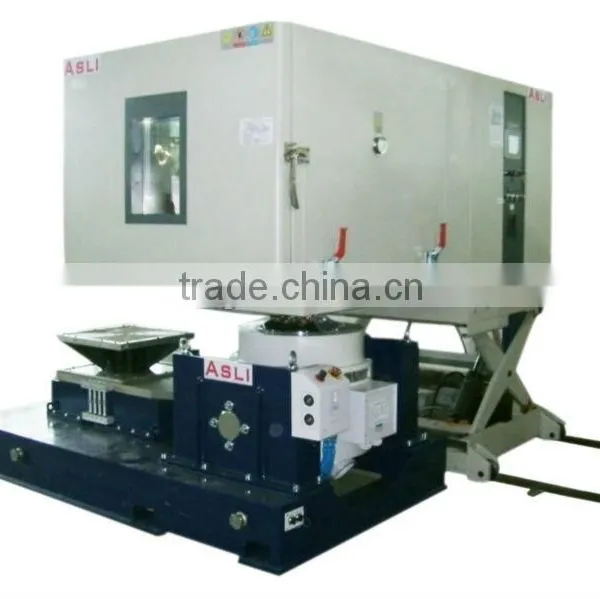

Environmental combined vibration tester Technical Parameters :
Model |
THV-1000(A~F) |
||
Internal Dimension WxHxD(mm) |
1000x1000x1000 |
|
|
External dimension WxHxD (mm) |
1300x2200x2400 |
|
|
Temperature Range |
Low temperature: (A:25°C; B:0°C; C:-20°C; D: -40°C; E: -60°C; F:-70°C) High temperature:100°C(150°C) |
||
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier) |
||
| Indication Resolution / Distribution uniformity of temperature and humidity | 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
||
Control Accuracy of temperature and humidity |
±0.5°C; ±2.5% R.H. |
||
Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min ; temperature falling approx. 0.1~1.5°C/min; ( Falling velocity Min.1.5°C/min is optional ) |
||
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. |
||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||
Cooling System |
Wind cooling or water cooling; single segment compressor for -40°C, double segment compressor for -70°C |
||
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||
Optional Accessories |
Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier |
||
Vibration Test Equipment |
Choose proper vibration test bench according to customer’s test condition, the technical parameters please take Electrodynamics Type Vibration Tester’s parameters in this catalog for reference |
||
Environmental combined vibration tester Features:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer’s unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
Environmental combined vibration tester Application
1 This chamber Series reproduces combinations of mechanical stress such as vibration or shocks with environmental stress such as temperature and humidity.
These conditions are particularly needed for test of aircraft and automotive parts, but also precision instruments, and to a great extent electronics parts in general.
Environmental combined vibration tester Performs
· Reliability tests
· Qualification tests
· Environmental Stress Screening (ESS) tests
Industries Where Used
· Electronic industry
· Automotive industry
· Telecommunications industry
