Help CenterThermostatic Three-way Control Valve for Boiler Return Bypass
Related Products
Production Description:

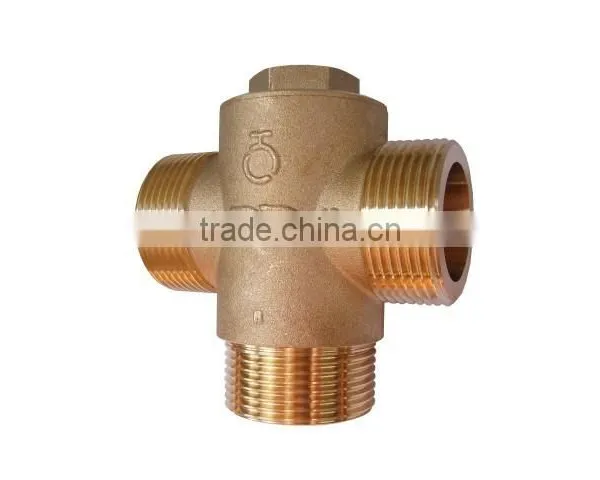

1. The Winning Three-Way valve is equipped with a pre-set constant temperature control and
is used as mixer in return. For throttling of bypass between flow and return. Max. application temperature range till 100 °C
Operations:
Winning TM temperature control valve is designed for 3-way mixing or diverting applications.
The models TM 01 and TM 02 incorporate a fixed bypass; The control temperature for path A --- AB: approx 45 °C
Installation of a regulating valve in the bypass between the boiler flow and return is recommended (see diagram)
the models TM11 and TM12 are designed with a closing function on the bypass At a mixing temperature of approx 50 °C the bypass is closed (B-AB branch) and opens again at a temperature of approx 42 °C.
The installation of a regulating valve in the bypass is not necessary.
Application for boilder return bypass:

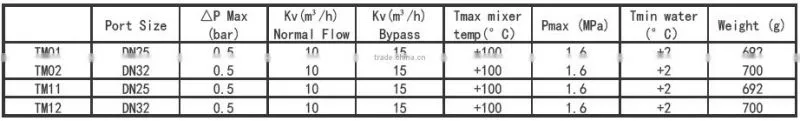

Specifications:
Note:
1. The regulating valve no 6 should be set at 10% of the total water volume.
2. Unless noted, all set points listed have a +/-3 °C tolerance range.
3. Our technical staff will be more happy to adivse you other connections.
find the best thermal control valves in
Teams:
Beijing Winning Thermo Control Equipment Co., Ltd focuses on economical solutions
of thermostatic control .
The teammates are positive, innovative, professional, and self-motivated.

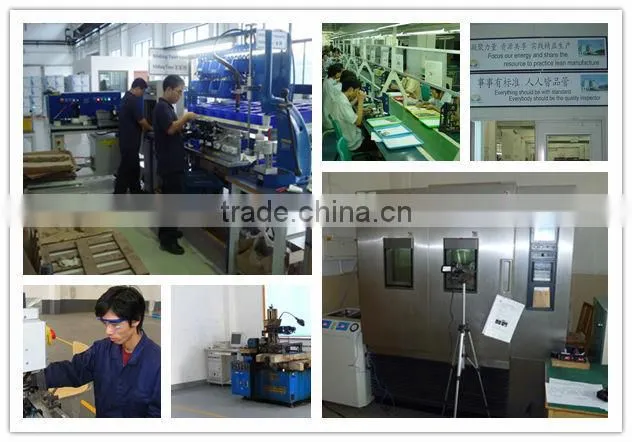

Production and Testing:
The Key to success is Quality. Take the European data as our standard, we provide
the most economical thermal control valves.
Exhibition:
Visitors:
