Specifications

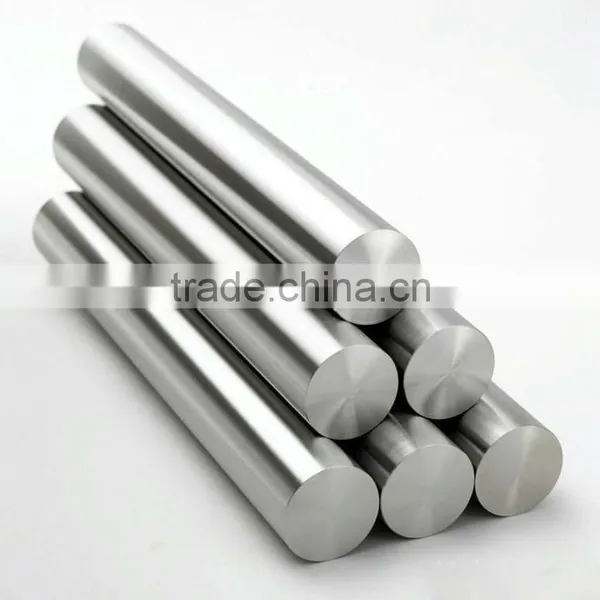

1: For cutting iron and mild steel solid bars2: Used on automatic cold saw machine
3: Cermet tipped available

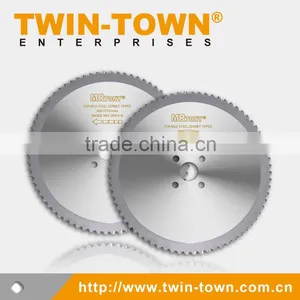

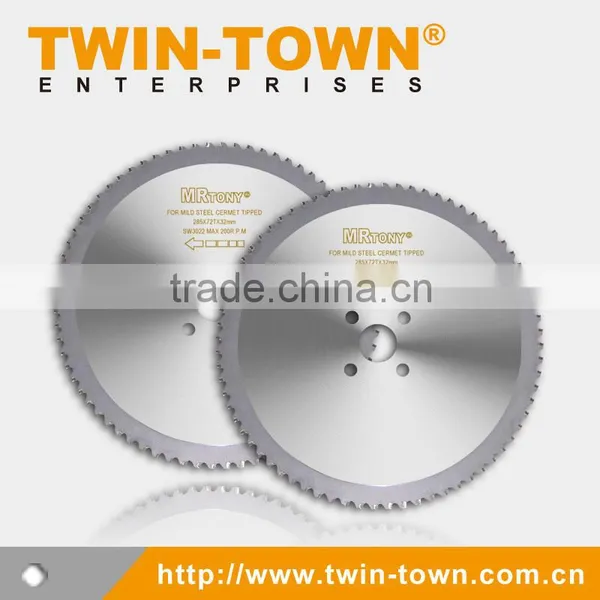

TCT Thin-Cut Circular Saw Blades
Cermet-Tipped for Cold Circular Saw Automats
Cermet is a composite material composed of ceramic and metallic materials. A cermet is ideally designed to have the optimal properties of both a ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. Cermets are being used instead of tungsten carbide in saws and other brazed tools due to their superior wear and corrosion properties.

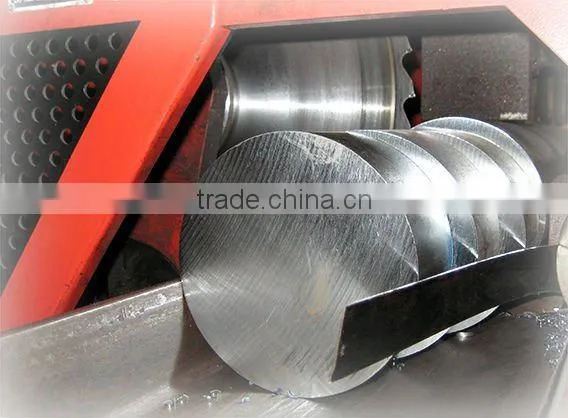

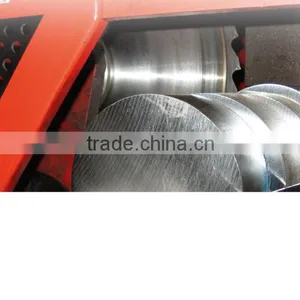

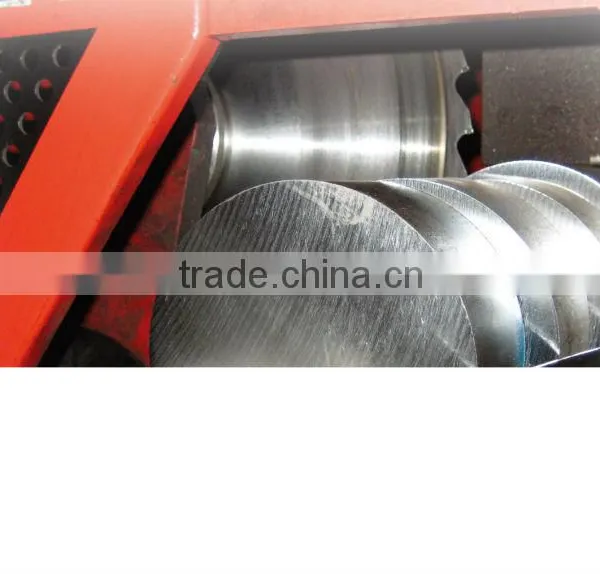

• This series is used on automatic cold saw machine, for cutting iron and mild steel solid bars.

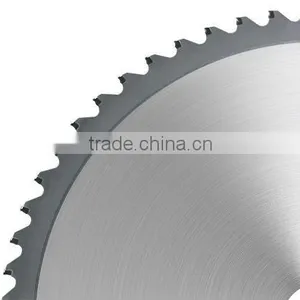

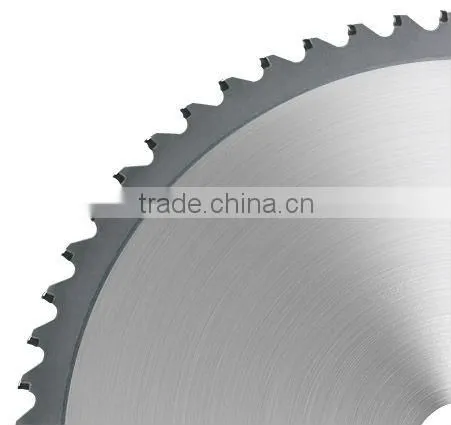

• Notched type teeth with breaker enable truly cold cutting, no heat transferred to the saw body or the metal material.
Size available as follows:
Code |
D(mm) |
B/b(mm) |
H(mm) |
Pin Hole |
Z |
SW3011 |
250 |
2.0/1.75 |
32 |
4/9/50 + 4/11/63 |
60 |
SW3012 |
250 |
2.0/1.75 |
32 |
4/9/50 + 4/11/63 |
80 |
SW3021 |
285 |
2.0/1.75 |
32 |
4/9/50 + 4/11/63 |
60 |
SW3031 |
315 |
2.25/2.0 |
32 |
4/11/50 + 4/11/63 |
80 |
SW3032 |
315 |
2.25/2.0 |
40 |
2/12/65 + 2/15/80 |
80 |
SW3041 |
360 |
2.6/2.25 |
40 |
2/12/65 + 2/15/80 +4/11/90 |
80 |
SW3042 |
360 |
2.6/2.25 |
50 |
4/16/80 |
60 |
SW3043 |
360 |
2.6/2.25 |
50 |
4/16/80 |
80 |
SW3051 |
420 |
2.6/2.25 |
40 |
2/12/65 + 2/15/80 |
80 |
SW3061 |
425 |
2.6/2.25 |
50 |
4/16/80 |
80 |
Main Production Process:
Cutting Material as follows:
