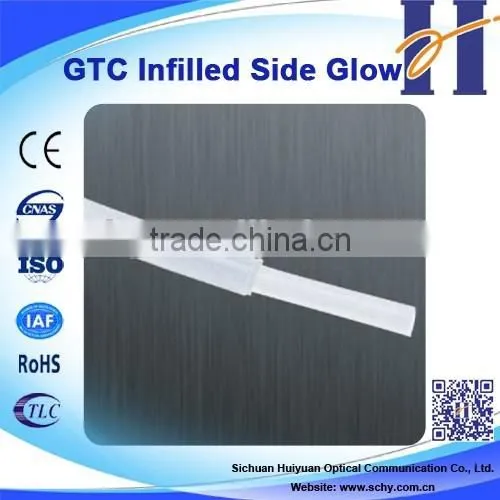

Infilled Side Glow Cable Plastic optic fiber cable
A.Optic fiber Description:
This fiber and cable are formed by filling super flexible acrylic polymer in fluroresin tube and then solidifying it. And the cable is formed by coating the fibers with transparent PVC; while the side light effect is created by modifying the material properties of processing technology which forms fiber interface defects.
B.Optic fiber applications
1. Interior lighting decoration of KTV, pubs, coffee houses, hotels and restaurants;
2. Artistic design of 2D and 3D figures;
3. Lighting in swimming pools and underwater facilities.
C.Basic properties
Fiber core material |
Polymethy lmethacrylate(PMMA) |
Clad material |
Fluroresin |
Numerical aperture |
0.5 |
Cable appearance |
Smooth surface , no visible crackles , defects or mechanical damage |
Cable diameter fluctuation |
±5% |
Using temperature range of the cable |
-20~+70 ℃ |
D.Model specifications
Model |
Fiber diameter(mm) |
Cable diameter(mm) |
material |
GTC-2 |
2 |
- |
Polyacrylate /Fluoresin |
GTC-2.5 |
2.5 |
||
GTC-3 |
3 |
||
GTC-4 |
4 |
||
GTC-5 |
5 |
||
GTC-6 |
6 |
||
GTC-8 |
8 |
||
GTC-10 |
10 |
||
GTC-12 |
12 |
||
GTC-14 |
14 |
||
GTCV-3.5 |
2 |
3.5 |
Polyacrylate /Fluoresin/Transparent PVC |
GTCV-4 |
2.5 |
4 |
|
GTCV-4.5 |
3 |
4.5 |
|
GTCV-5 |
4 |
5 |
|
GTCV-8.8 |
6 |
8.8 |
|
GTCV-11 |
8 |
11 |
|
GTCV-13 |
10 |
13 |
|
GTCV-14 |
12 |
14 |
|
GTCV-17 |
14 |
17 |
|
GTCV-18 |
16 |
18 |
|
GTCV-20 |
18 |
20 |

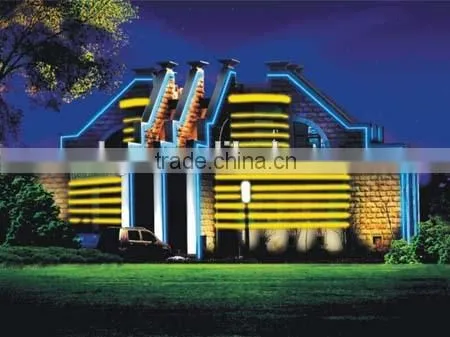

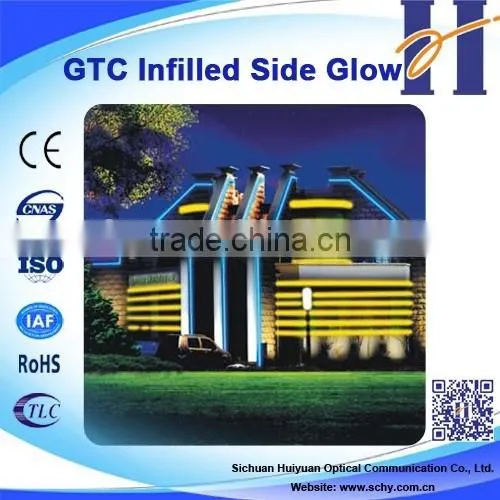

E. Infilled Side Glow Cable Plastic optic fiber cable
F.Factory
Why choose us?
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW,ADSS and Plastic optic fiber are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
