Specifications
symons cone crusher1.CE,ISO9001:2000 approved.
2.high crushing ratio.
3.easy adjustment.
4.long service life.
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.

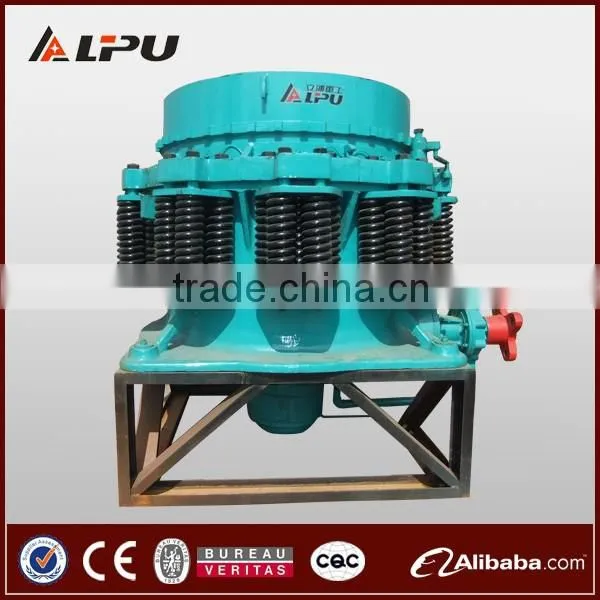

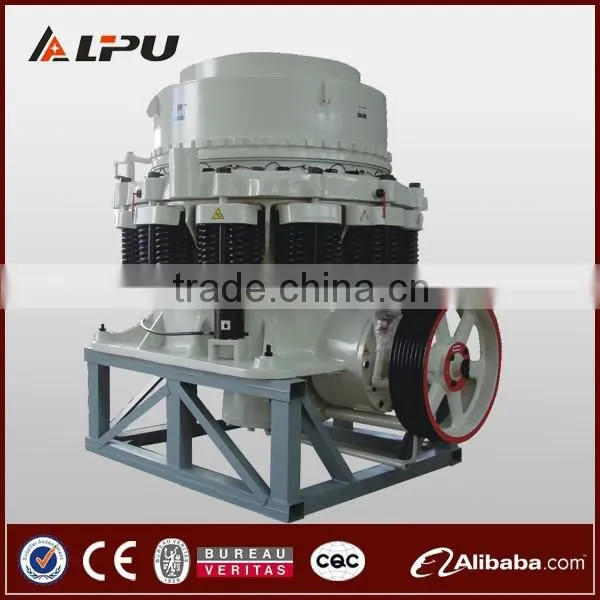

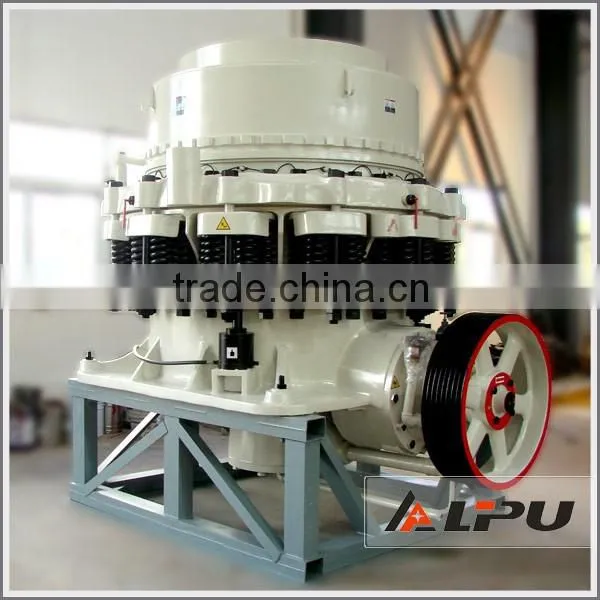

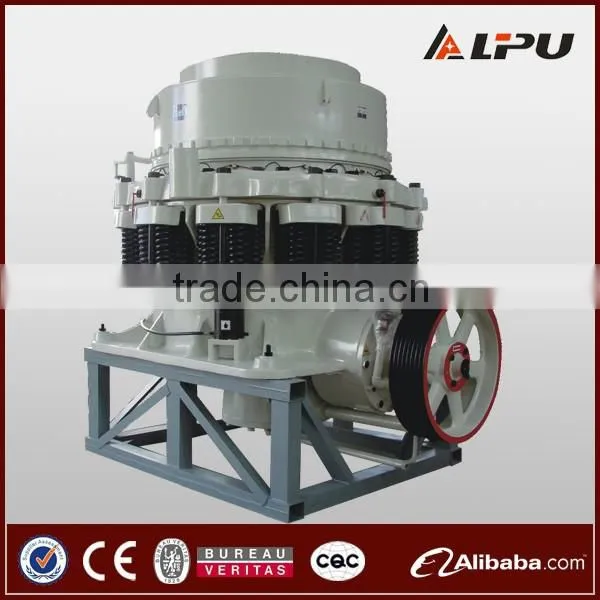

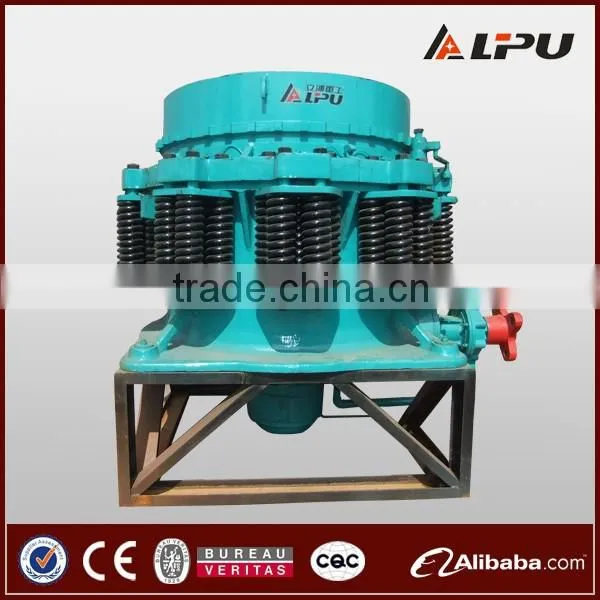

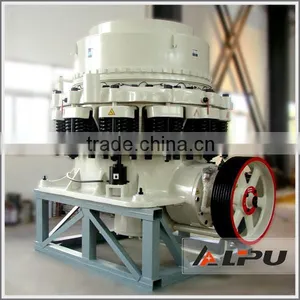

LIPU Reliable Performance and Large Crushing Ratio Symons Cone Crusher Price
Brief Introduction of Symons Cone Crusher:
PY Series Spring Cone Crusher is suitable for crushing middle and high hardness materials such as various chrome ore, iron ore, diabase,basalt, granite and etc. It has been extensively used in intermediate crushing & fine crushing in many areas such as mining, metallurgy, cement, ceramic, chemical, refractory material, building material and water conservancy industries.
Performance Features of Symons Cone Crusher:
1.High production efficiency, because moving cone continuously moves, and the crushing process and discharging process goes along with working surface alternately.
2.Low power consumption, as materials were placed between fixed cone and moving cone, and then materials were squeezed,bended and sheared.
3.Average aggregate size, mostly cubic.
4.Average wear on the working surface of the moving cone.
Symons Cone Crusher Working Principle:
1.Driven by the electri-motor, the eccentric shaft bush will rotate with the triangle belt, small and big bevel gear, big bear, transmission shaft.
2.Driven by the eccentric shaft bush, the cone crusher axis will move in circle, which makes the mantle close or leave the cone from time to time. and then the materials will be crushed by continuously compacting, striking, and bending in the circle crushing cavity between the fixed and moving cone.
3.After several times' repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.
Technical Parameters of Symons Cone Crusher:
Model |
Max. Feed Size |
Discharge Size(mm) |
Capacity |
Power |
Overall Dimension L×W×H(mm) |
Weight |
|
PYB600 |
65 |
12--25 |
12--25 |
30 |
2800×1300×1700 |
5 |
|
PYD600 |
35 |
3--15 |
5--23 |
30 |
2800×1300×1700 |
5.5 |
|
PYB900 |
115 |
15-50 |
50-90 |
55 |
3050×1640×2350 |
10.2 |
|
PYZ900 |
60 |
5--20 |
20-65 |
55 |
3050×1640×2350 |
10.2 |
|
PYD900 |
40 |
3--13 |
15-50 |
55 |
3050×1640×2350 |
10.3 |
|
PYB1200 |
145 |
20-50 |
110-200 |
110 |
4152×2300×2980 |
24.7 |
|
PYZ1200 |
100 |
8--25 |
50-150 |
110 |
4152×2300×2980 |
25 |
|
PYD1200 |
50 |
3--25 |
18-105 |
110 |
4152×2300×2980 |
25.6 |
|
PYB1750 |
215 |
25-60 |
280-480 |
160 |
4870×3800×4192 |
50.3 |
|
PYZ1750 |
185 |
10--30 |
115-320 |
160 |
4870×3800×4192 |
50.3 |
|
PYD1750 |
85 |
5--15 |
75-230 |
160 |
4870×3800×4192 |
50.4 |
|
PYB2200 |
300 |
30-60 |
590-1000 |
260-280 |
7705×3430×4852 |
80 |
|
PYZ2200 |
230 |
10--30 |
200-580 |
260-280 |
7705×3430×4852 |
80 |
|
PYD2200 |
100 |
5--15 |
120-340 |
260-280 |
7705×3430×4852 |
81.4 |

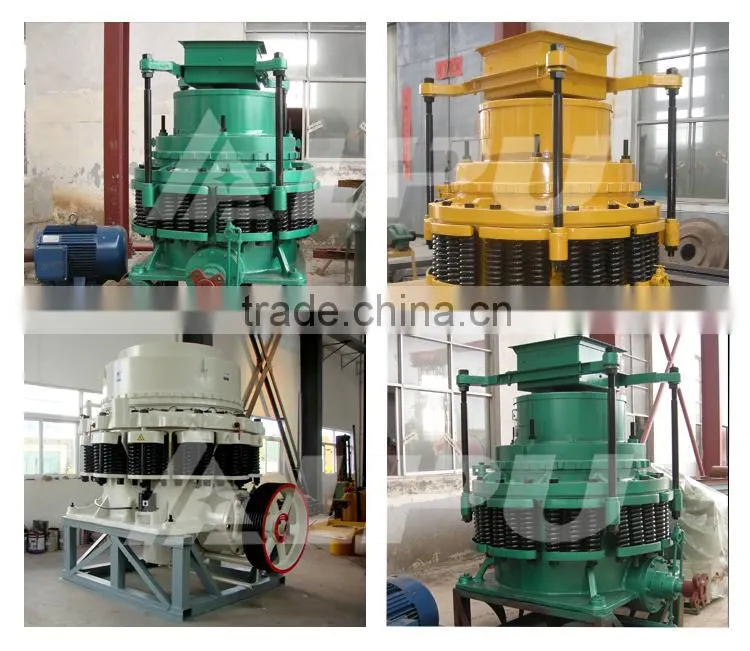

Producing Process of Symons Cone Crusher:

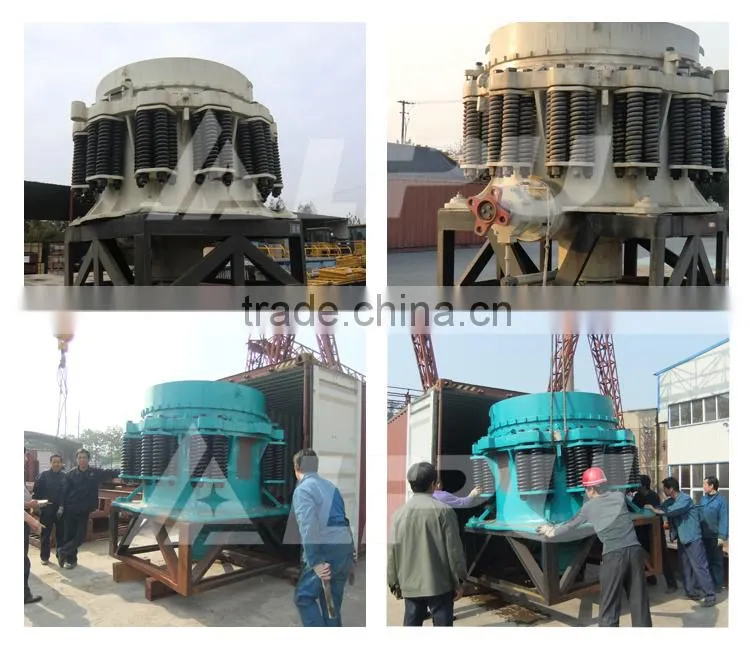

Delivery Site of Symons Cone Crusher:

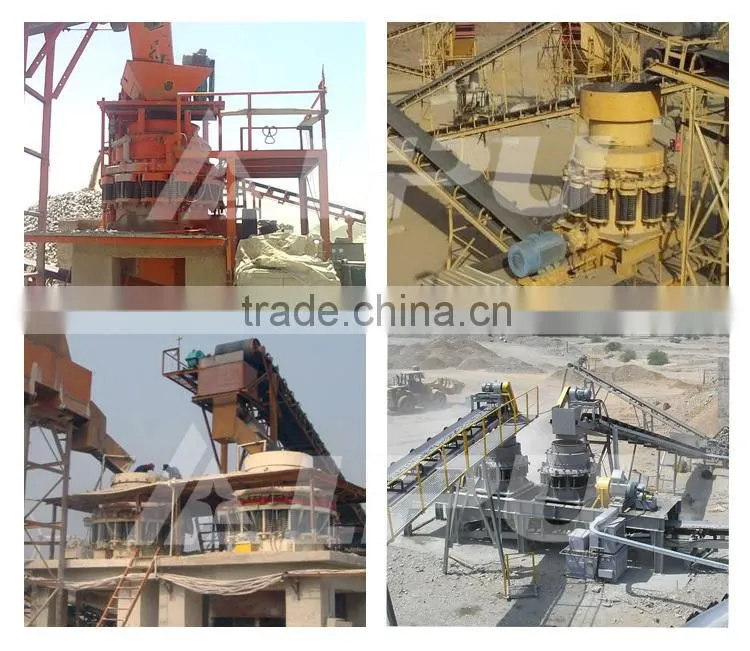

Work Site of Symons Cone Crusher:
