A.Commodity: Slitting Line for 0.8-5.0mm Hot/cold Rolled Steel Coil
1. Material: Hot/cold rolled coil, etc
2. Thickness: 0.8-5.0mm
3. Width: 60-1250mm
4. Inner diameter: 508-610mm
5. Max outer diameter: 1800mm
6. Capacity: 20T(depends on client's demand)
B.Main data of Slitting Line for 0.8-5.0mm Hot/cold Rolled Steel Coil
1. Standard power source: AC380V/50Hz, or depends on client's need
2. Speed: 10-80m/min
3. Main power: About 300KW
4. Installation height: About 2M
5. Total weight: About 60 tons
6. Operators for the machine: 2-3 workers
7. Paint of the machine: Main body in green, moveable units and danger area in yellow (or according to Buyer's demands)
8. Running direction (decoiling direction): Depends on Buyer's requiremen
C. Work Flow of Slitting Line for 0.8-5.0mm Hot/cold Rolled Steel Coil
Loading trolley---hydraulic decoiler---feeding unit---sheet head cutter---rectification unit---rotary slitter---scrap re-coiler---loop---separator & tensioner---recoiler---unloading trolley
D.Application of Slitting Line for 0.8-5.0mm Hot/cold Rolled Steel Coil
The Steel Coil Sheet Slitting Line/Slitter is used for coil with different specifications, through uncoiling slitting - recoiling to any needed width.The line is reasonable in layout, easy operation, high level of automation, high productivity which could processing CR & HR coil.
E.More type for the Coil Slitting Line/Slitter Machine
| No. | Model |
Raw Width(mm) | Thickness(mm) | After slitting width(mm) | Speed(m/min) |
| 1 | HX-400 | 100-400 | 0.3-2.0 | 20-380 | 10-120 |
| 2 | HX-500 | 100-500 | 0.3-2.0 | 20-380 | 10-120 |
| 3 | HX-700 | 120-700 | 0.3-2.0 | 40-580 | 10-100 |
| 4 | HX-800 | 120-800 | 0.7-3.5 | 40-750 | 10-100 |
| 5 | HX-1300 | 400-1300 | 0.8-5.0 | 60-1250 | 10-80 |
| 6 | HX-1600 | 600-1600 | 2.0-8.0 | 60-1550 | 10-80 |
| 7 | HX-1800 | 900-1800 | 3.0-10.0 | 90-1750 | 10-60 |
| 8 | HX-2050 | 1000-2000 | 4.0-12.7 | 90-2000 | 10-40 |
| 9 | HX-2200 | 1000-2200 | 8.0-16.0 | 90-2150 | 10-30 |

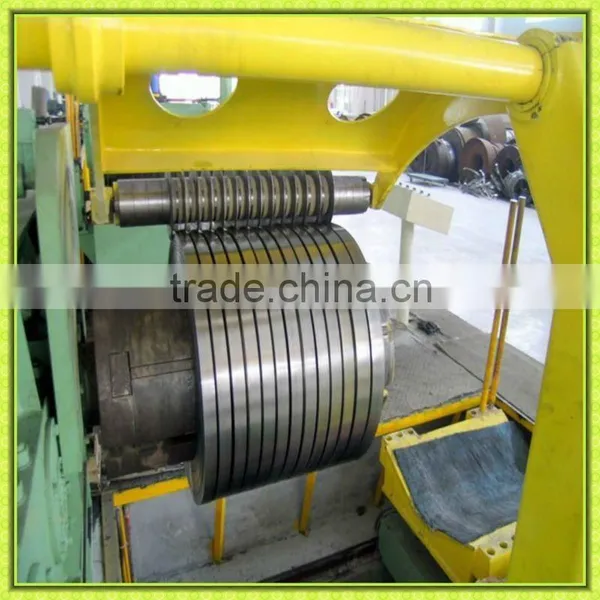

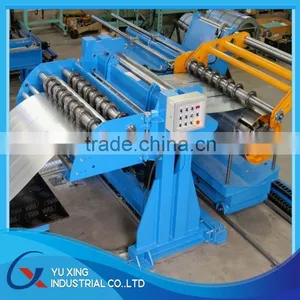

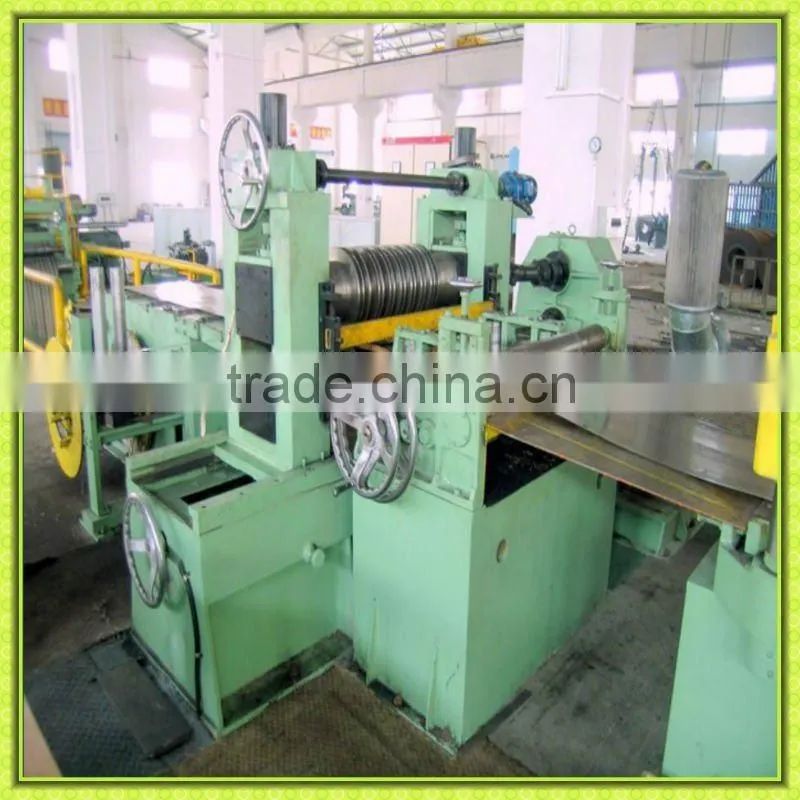

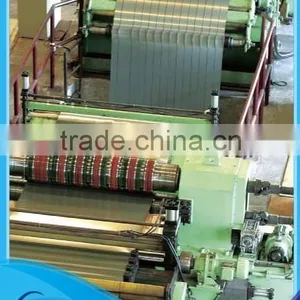

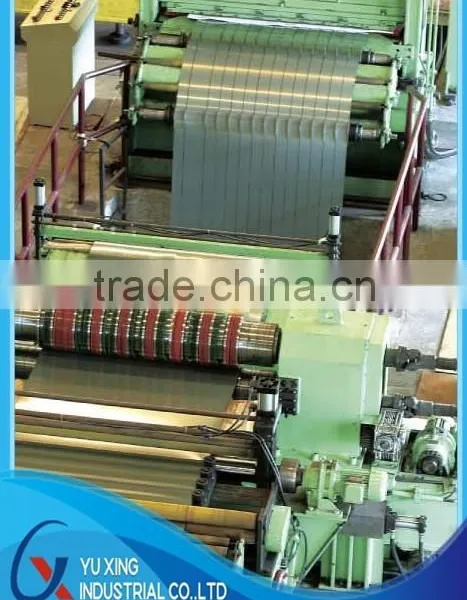

Pictures of product
Company profile
Hengxing Metallurgical Machinery Manufacturing CO.,LTD. has a history of more than 14 years in the steel equipment manufacturing industry,with an annual production of 60 sets of various types of equipment,400 tons of roll.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.We have won overseas customer's trust.
We has our own steel pipe production company,and all machinery be used are designed and made by ourself. The steel pipe we produce got the authentication ABS and API.We are the only company to get this authentication in Tianjin.
