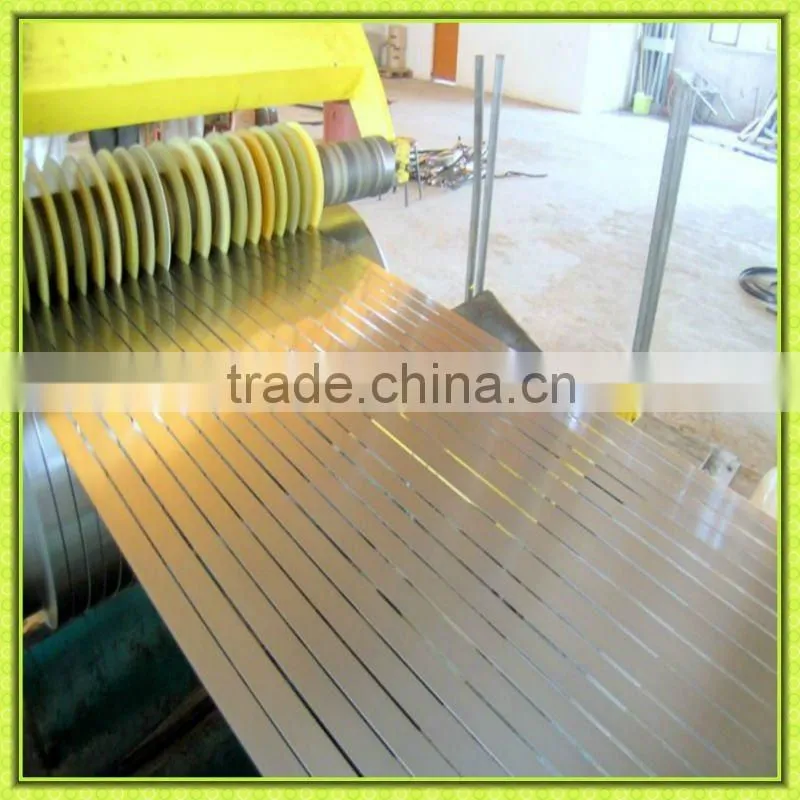

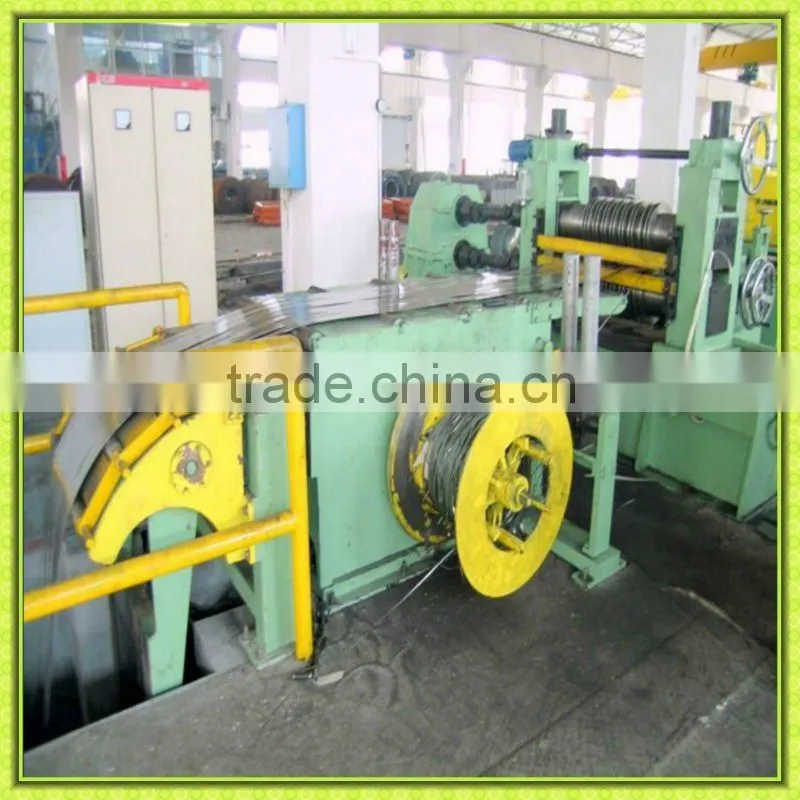

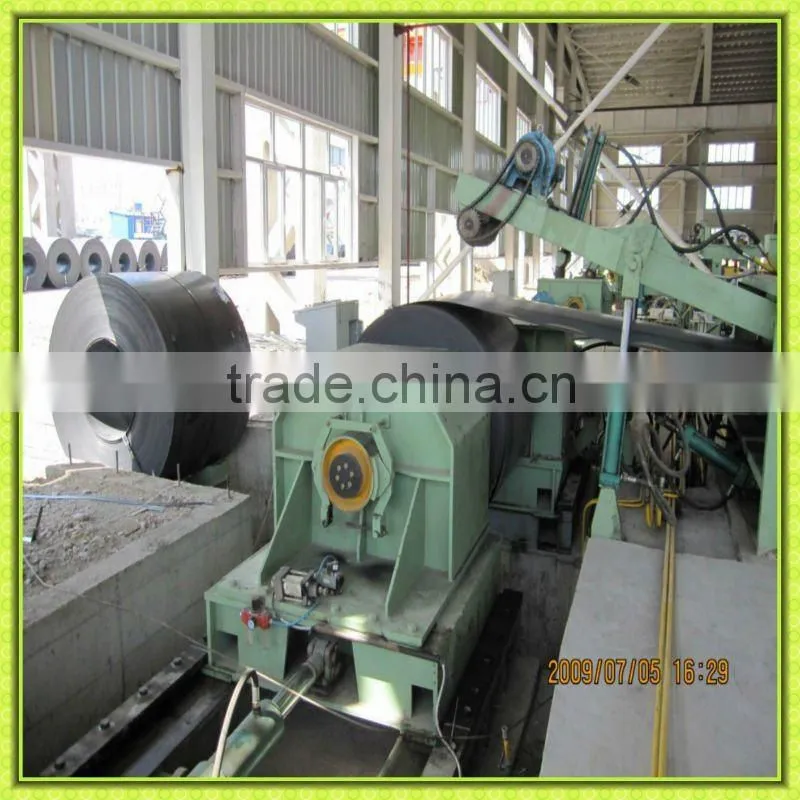

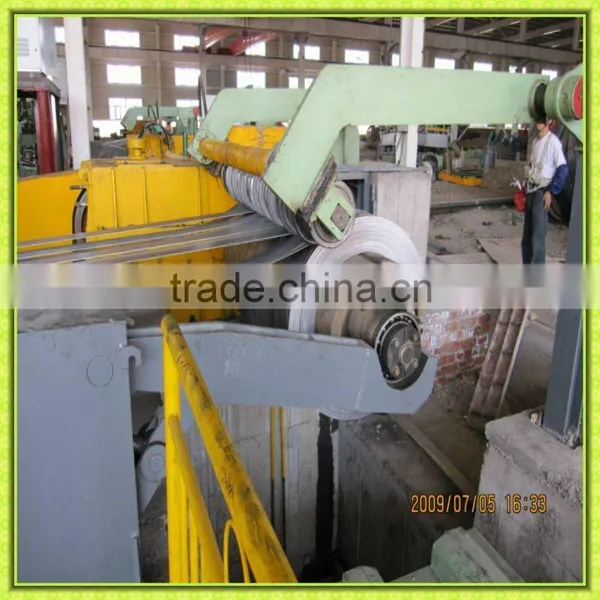

Commodity: Slitting Line for 120-800mm Hot/cold Rolled Steel Coil
A.Capacity of the Slitting Line for 120-800mm Hot/cold Rolled Steel Coil
1. Thickness: 0.7--3.5mm
2. Metal Sheet Width: 120--800mm
3. Milling Speed: 10--100m/min
4. Material:Hot/cold rolled steel, stainless steel
5. Coil Outer Diameter (max): 1500mm
6. Inner Diameter: (Feeding): 460mm-520mm (manual expansion)
(Run-out): 480mm-508mm (manual expansion)
B.Consist of the Slitting Line for 120-800mm Hot/cold Rolled Steel Coil
a.Decoiler
1. Loading Capacity: 8 Tons
2. Expansion Diameter: 460mm, 520mm x 1300mm
3. Hand expansion to tighten the coil, with brake device.
b.Slitting Machine
1. Slitting blade shaft: 140mm x 1300mm, 40Cr, Chrome coated
2. Blade Diameter: 280mm
3. Motor: 22KW
c.Looping Bridge
d.Pneumatically powered
e.Tension Station
f.Electric Recoiler
1. Loading Capacity: 8 Tons
2. Expansion Diameter: 480mm, 508mm x 1300mm
3. Equipped with 33kw speed-adjustable motor
4. Hand expansion to tighten the coil
g.Electronic System
1. Power Supply: 380V, 3phs
2. Voltage fluctuation should be limited within +10%
3. Control Power: 220V
C.Application of the Slitting Line for Hot/cold Rolled Steel Coil
The slitting line is used for coil with different specifications, through uncoiling slitting - recoiling to any needed width coil for the application of all kinds of welded pipe/tube making machine.
The line is reasonable in layout, easy operation, high level of automation, high productivity which could processing CR & HR coil.
D.More type of Slitting Line for Hot/cold Rolled Steel Coil
| No. | Model | Raw Width(mm) | Thickness(mm) | After slitting width(mm) | Speed(m/min) |
| 1 | HX-400 | 100-400 | 0.3-2.0 | 20-380 | 10-120 |
| 2 | HX-500 | 100-500 | 0.3-2.0 | 20-380 | 10-120 |
| 3 | HX-700 | 120-700 | 0.3-2.0 | 40-580 | 10-100 |
| 4 | HX-800 | 120-800 | 0.7-3.5 | 40-750 | 10-100 |
| 5 | HX-1300 | 400-1300 | 0.8-5.0 | 60-1250 | 10-80 |
| 6 | HX-1600 | 600-1600 | 2.0-8.0 | 60-1550 | 10-80 |
| 7 | HX-1800 | 900-1800 | 3.0-10.0 | 90-1750 | 10-60 |
| 8 | HX-2050 | 1000-2000 | 4.0-12.7 | 90-2000 | 10-40 |
| 9 | HX-2200 | 1000-2200 | 8.0-16.0 | 90-2150 | 10-30 |

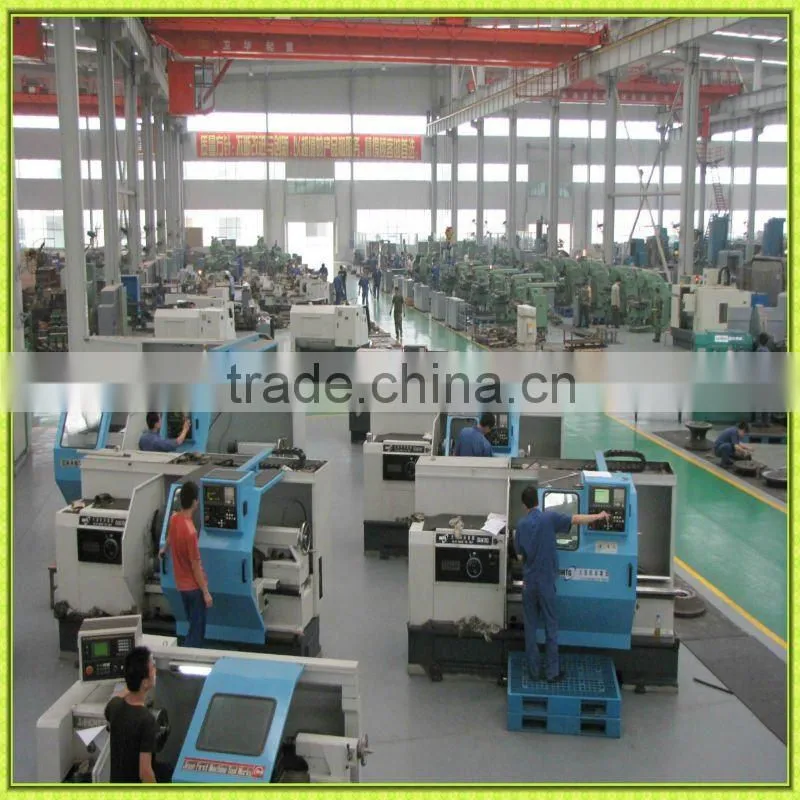

Hengxing Metallurgical Machinery Manufacturing CO.,LTD. has a history of more than 14 years in the steel equipment manufacturing industry,with an annual production of 60 sets of various types of equipment,400 tons of roll,the annual sales is RMB80,000,000. Our products are being sold to many countries ,such as Brazil in south america,Ukraine in eastern Europe,Kazakhstan,Kenya,India and some other countries.We have won overseas customer's trust.
If you need more information,please feel free to contact me.
Best wishes
