Specifications
High Quality Steel Strip Hot Dip Galvanizing Machine Line1.Capacity: 400,000t/a
2.Thickness: 0.25~4.0mm
3.Width: 800~2000mm
Dear Customers,
This is Ada,thanks for your interest in our products. The following is for your reference, we have our own design teams and factory ,we can design according to your requirement.Welcome your inquiry,I will reply you as soon as possible.

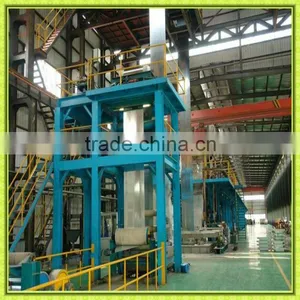

High Quality Steel Strip Hot Dip Galvanizing Machine Line
A.Features of High Quality Steel Strip Hot Dip Galvanizing Machine Line :
1.Highly automated entry and exit sections that ensure effcient coil handling.
2.Vertical or horizontal strip accumulators.
3.Acid pre-cleaning sections.
4.Elevating pots are also available for use with fixed furnace snouts.
5.Closed-loop coating weight gauges for controlling coating thinknesses.
6. Dip, spray and coater-type passivating systems, including resin coaters.
7.Tension-levelling sections and skin pass mills.
B.finish products description:
| Annually Production Ability | 100-200 Thousand Tons |
| Produce Speed | 5-60m/min |
| Raw Material | Cold Rolled Steel Coil full hard |
| Steel Coil Weight | 10Tons/Roll,5Tons/Roll |
| Coil OD | φ800-2100mm |
| Coil ID | φ508mm-φ610mm |
| Steel Thickness | 0.2-1.2mm,1.2-3.5mm |
| Coil Width | 600-1250mm,250-600mm |
| Energy | Electricity/Natural Gas/Coal Gas |
| Average Zinc Coating | 120g/m²-275g/m² |
| Quality Standard | According to GB2518-88 |
| Outside Equipment | Fire and environmental equipment |
C. High Quality Steel Strip Hot Dip Galvanizing Machine Line
1.The hot-dip galvanizing production line is a kind of unitary production line which can pay off, heat treatment anneal, surface treatment, hot dip galvanize and take up.
2.The acid washing of surface treatment is full sealed that prevent acid fog volatilizing, and it saves the acid quantity as well as improve plant environment.
3.The galvanized vessel of galvanizing furnace adopts heat-proof ceramic galvanized vessel, which has the specialities of high corrosion resistance and long service life.
4.The payoff equipment can adopt payoff swift or steel bobbin to set out, and the take-up equipment can adopt horizontal type or vertical type to take up, so that user can choose either according to respective technology condition.
If you need more information,please feel free to contact me.
Best wishes
Hengxing Metallurgical Machinery Manufacturing CO.,LTD. has a history of more than 14 years in the steel equipment manufacturing industry,with an annual production of 60 sets of various types of equipment,400 tons of roll.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.We have won overseas customer's trust.
