XFLB miniature continuous flotation machine
Company information
Jiangxi Walker Machinery is a leading large-scale professional manufacturer of laboratory equipment for mineral processing, as well as sample preparation equipment. We concentrate on researching, designing, and manufacturing many kinds of laboratory machines.
Our products mainly include below:
lab pulverizer for sample preparation,
lab crusher divider, lab crusher,
lab ball mill, lab grinding mill machine,
lab flotation machine ,
lab vacuum filter,
lab magnetic separator,
laboratory shaking table,
lab spiral chute, lab hydrocyclone
lab centrifugal machine, lab sieve shaker, and many other lab testing
Usage of miniature continuous flotation machine
Laboratory XFLB continuous closed-type flotation machine is representative ore samples with a small amount of continuous flotation tests.
Test results can represent the results of laboratory experiments and closed single small semi-industrial tests, and can provide a laboratory or industrial mineral indicators used in a relatively short time.XFLB continuous closed-type flotation machine is self-priming continuous mechanical agitation flotation machine.
It does not need or require a small amount of auxiliary equipment, device configuration easily adjustable, complete non-ferrous metals, ferrous metals and non-metallic mineral processing experiments

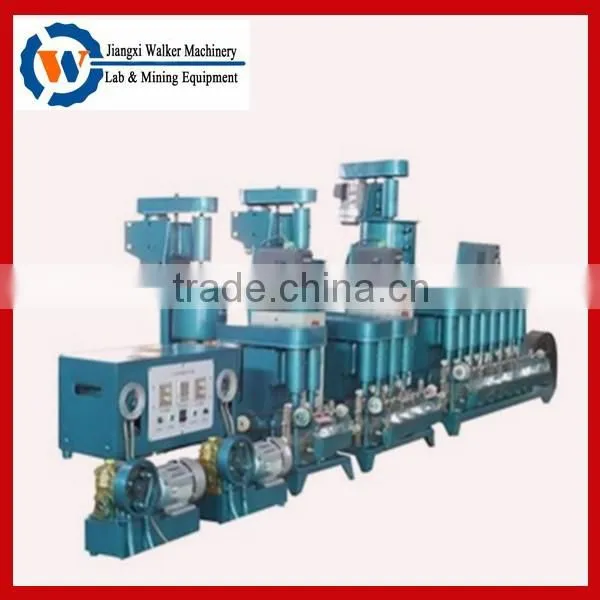

Main structure of miniature continuous flotation machine
Laboratory XFLB continuous closed-type flotation machine mainly stabbed by slurry storage, mixing bucket, micro-dosing machine hose pump and 1 liter, 0.75 liters, 0.5 liters of continuous flotation machine.
Poke slurry storage is used to store a good tune to grind pulp, using impeller agitation so as not to precipitate.
Stirred by rotating mixing bucket wheel, making uniform pulp, pulp slurry from the reservoir to flow mixing barrels and barrels of flotation machine, the size of the flow by changing the flow area to achieve.
This continuous flotation machine has a self-priming capability, large inflatable and other characteristics, the flow of the slurry, foam products and air intake flow by the impeller rotation is caused by the formation of a negative pressure in the mine returned as may be appropriate to increase the pump hose . Level by adjusting the telescopic tube, changing the length of the extension tube, you can adjust the liquid level, easy adjustment without clogging.
Administration floating selection of auxiliary supply machine foaming agents and modifiers inhalants.
the component of XFLB type Micro closed flotation machine
Slurry storage barrels : 1 set
Mixing bucket : 2 set
Hose Pumps : 2 set
Continuous Flotation Machine:
1L 8 cell 1 set
0.75L 4 cell 1 set
0.5L 2 cell 1 set
Specification of miniature continuous flotation machine

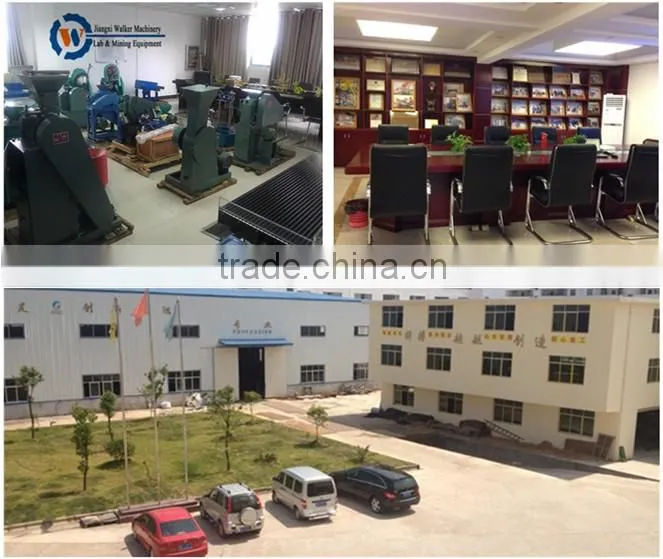

Workshop of miniature continuous flotation machine

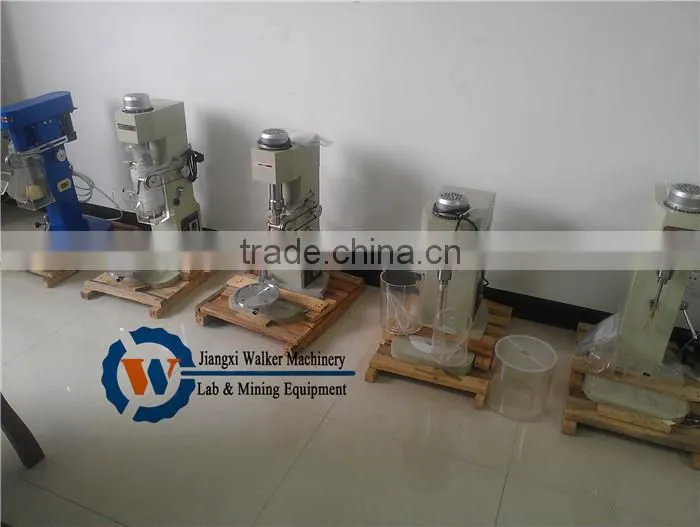

We have many other type lab flotation machine, such as lab multi-cell flotation machine, lab small leaching agitation machine,
lab FX series continuous mechanical agitation flotation machine, replaceable groove multi cells lab flotation machine:
Any other question,Please feel free to contact me
skype : manlyzhang
Tel: +86 18172711202
