Specifications
High Pressure Homogenizer for juiceCapacity: 500L/h -10000L/h
Rated pressure: 25-80Mpa
Stainless steel ss304

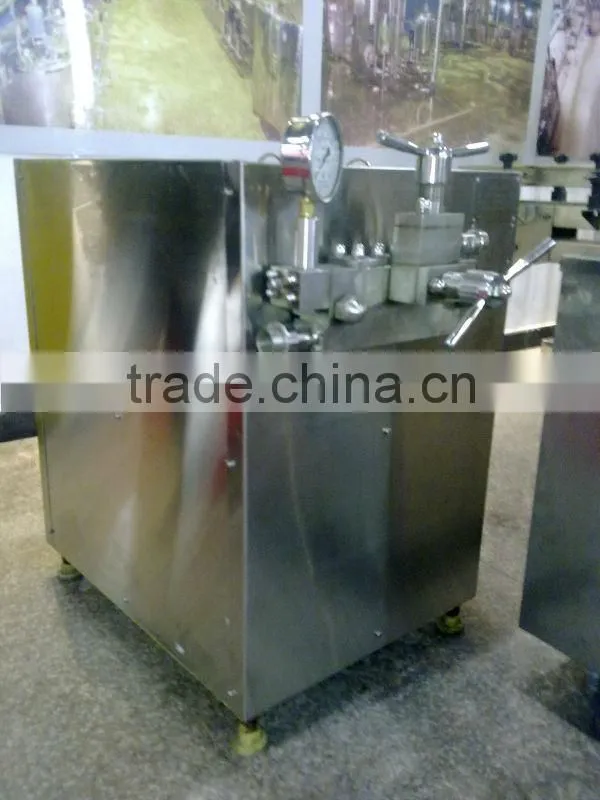

High Pressure Homogenizer for juice
pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process. Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological developme
Tehchnique parameter of homogenizer
Name |
type |
Rated flowL/H
|
Rated pressure Mpa |
Working pressureMPa |
Weight |
Size (cm) |
Power Kw
|
|
High pressure homogenizer |
HD500-25 |
500 |
25 |
0~20 |
670 |
100×75×110 |
5.5 |
HD 1000-25 |
1000 |
25 |
0~20 |
670 |
100×75×110 |
7.5 |
|
HD 1500- 25 |
1500 |
25 |
0~20 |
720 |
100×75×110 |
11 |
|
HD 1000-30 |
1000 |
30 |
0~24 |
720 |
100×75×110 |
11 |
|
HD 2000-25 |
2000 |
25 |
0~20 |
1150 |
100×75×110 |
18.5 |
|
HD 2500-25 |
2500 |
25 |
0~20 |
1250 |
100×75×110 |
22 |
|
HD 3000-25 |
3000 |
25 |
0~20 |
1350 |
100×75×110 |
30 |
|
HD 4000-25 |
4000 |
25 |
0~20 |
1400 |
100×75×110 |
37 |
|
HD 5000-25 |
5000 |
25 |
0~20 |
2000 |
100×75×110 |
45 |
Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
Sealing material can work under less than 150oC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later.
