Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > China-made Extruder for Extruding Pvc Windows and Doors Profiles
China-made Extruder for Extruding Pvc Windows and Doors Profiles
US$ 120,000 - 179,888
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Profile
Plastic Processed:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cutting Device for Pvc Windows and DoorsUS$ 6,999 - 11,999MOQ: 1 Set -
PVC Plastic Co-extruder for Coextrusion on ProfilesUS$ 16,888 - 17,889MOQ: 1 Set
-
The NEW Type of PVC Plastic Co-extruder for Coextrusion on ProfilesUS$ 16,888 - 17,889MOQ: 1 Set
-
Downstream Equipment for Pull off and Cutting the Pvc ProfilesUS$ 50,499 - 63,999MOQ: 1 Set
-
Haul-off Device With 6-14m Calibration Table and Cutting MachineUS$ 50,499 - 63,999MOQ: 1 Set
Condition
New
Application
Profile
Plastic Processed
PVC
Screw Design
Double-screw
Automatic Grade
medium
Place of Origin
Anhui, China
Brand Name
TRINITY
Model Number
TRINITY92-31/P
Voltage
380v
Power(W)
45
Dimension(L*W*H)
5100x1400x2600mm
Weight
4500kg
Certification
CE,ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
china-made Extruder for extruding pvc windows and doors profiles
Product Description

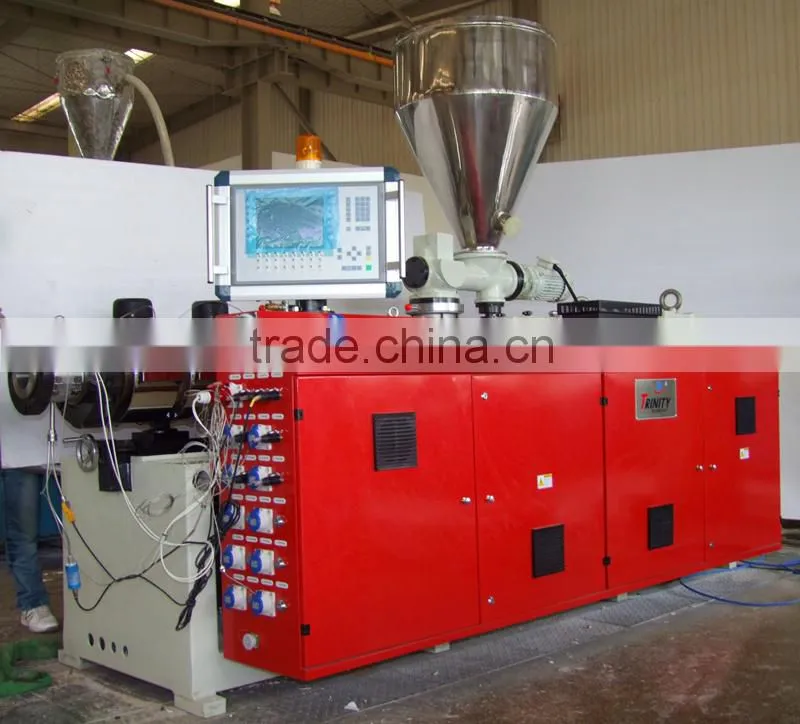

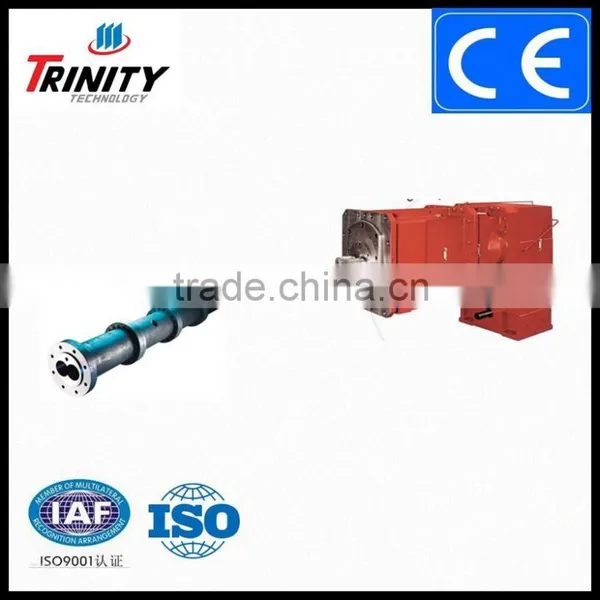

Based on many years of research experience,Zonfa Trinity successfully made the new type extruder with high output, which using the European highest level technology, can guarantee customers' requirement on hjgh quality extrusion. This machine is using B&R control system and Nordson Xaloy. What's more, Trinity adopts ZAMBELLO Gearbox.
Company Information
Our Services
Before the delivery, we will pre-test the machine in our factory. If everything is ok with the extruder, we will deliver the machine to your site. And we can send the technician to your factory to test the machine if you require.
Main specifications of the extruder:
| Material: | PVC powder | |||||||
| Output: | 350 Kg/H | |||||||
| POWER SUPPLY: |
380 V/3 PHASE/50 HZ | |||||||
| 1 Hopper: | Stainless steel fabricated hopper with material level view window and dumping gate. And fitted with a magnetic rack. | |||||||
| 2 Extrusion unit: | ||||||||
| Screw: | Big Dia.: 55mm, Small Dia: 110mm. | |||||||
| Screw structure: | New structure with high efficiency | |||||||
| Material of screw: | High quality alloy steel (38CrMoAla) and with gas nitrided hardened treatment. | |||||||
| Thickness of screw nitrided layer: | 0.3~0.6mm | |||||||
| Hardness of screw surface: | HV740~HV940 | |||||||
| Roughness of screw surface: | Ra<0.8 | |||||||
Different types of Extruder:
| Type | Trinity75-31P | Trinity92-31p | Trinity114-26p |
| Screw rotate speed | 28 | 24 | 19 |
| Screw L/D | 31 | 31 | 26 |
| Motor Power | 30 | 45 | 65 |
| Capacity | 80/240 | 130/350 | 230/460 |
| Centerline height | 1100 | 1100 | 1100 |
| L*w*H | 4400x1400x2500 | 5100x1400x2600 | 5500x1400x2600 |
| Torque | 9600 | 16100 | 35000 |
| Net weight | 3600 | 4500 | 6400 |
Main exhibitions atended:
Chinaplas in Shanghai:
K-show in Germany:
Welcome to our company!
china-made Extruder for extruding pvc windows and doors profiles
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2000
Factory Size
30,000-50,000 square meters
Total Employees
301 - 500 People
