Specifications
Germany famous Brand Phocos100/30A pwm solar charge controller*IP68 protection

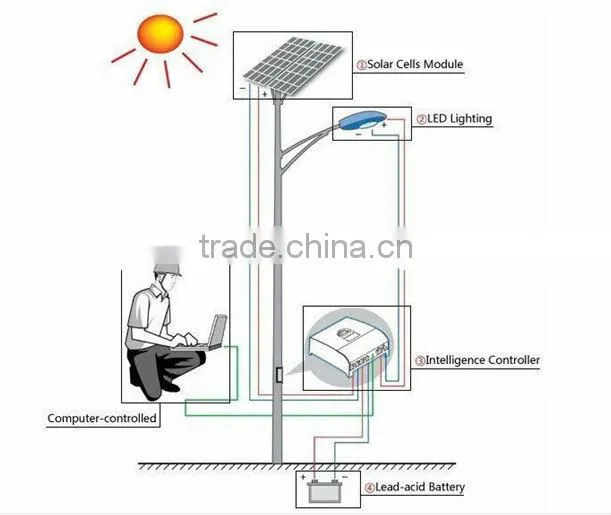

*design for solar street light
Germany famous Brand Phocos100/30A pwm solar charge controller
Features for:
Germany famous Brand Phocos100/30A pwm solar charge controller
• Maximum Power Point Tracking technology increases
the efficiency of your PV system
• Less expensive solar-panels for gridfeed-in systems can
now be used for 12/24 V off-grid systems
• Electronic protection (reverse polarity, over-current,
short-circuit, overtemperature)
• High efficiency
• DIN Rail compatible
• Negative ground
Specification for:
Germany famous Brand Phocos100/30A pwm solar charge controller
| Type | MPPT 100/30 |
| Nominal voltage | 12/24 V, automatic recognition |
| Nominal battery charge current | 30 A |
| Max. solar input voltage Voc | Max. solar input voltage Voc |
| Max. PV input power | 450 W@12 V, 900 W@24 V |
| Max. battery charge current | 33 A |
| Power conversion efficiency | up to 98% |
| Standby power consumption | < 30 mW at 12 V system voltage (< 2 mA); < 80 mW at 24 V system voltage (< 3 mA) |
| Temperature compensation | –24 mV/K (12 V); –48 mV/K (24 V) |
| Max. wire size | 35 mm 2 |
| Dimensions (W x H x D) | 185 x 150 x 115 mm |
| Weight | 1.6 kg |
| Temperature range | –40 to +50 °C |
| Type of protection | IP22 |
| Float charge | 13.8/27.6 V (25 °C) |
| Main charge | 14.4 V/28.8 V (25 °C), 0.5 h (daily) |
| Boost charge activation | 14.4/28.8 V (25 °C), 2 h battery voltage < 12.3/24.6 V |
| Equalization activation | 14,8/29,6 V (25 °C), 2 h battery voltage < 12.1/24.2 V |
| Max. battery voltage | 32 V |
| Grounding | Negative grounding |
| Battery type | Battery type |
Supply Model for:
Germany famous Brand Phocos100/30A pwm solar charge controller
Packing of:
--------------------------------------------------------------
Why choose us?
1.Partner of F.A.O.
2.Serving wind&solar products for more than 6 years.
3.Specialized in the series of products supporting services.
4. Quality is the first.
--------------------------------------------------------------
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of “advanced technology,exquisite product and competent manufacturing”,the company is proceeding with the mission of energy saving and green planet building based on the spirit of credit,innovation,hard working and social responsibility.
