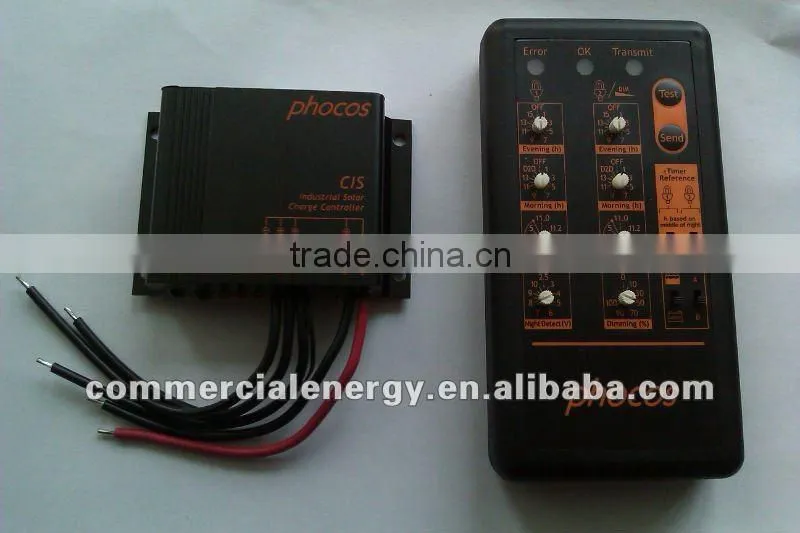

CIS 05 Phocos Solar Controller for Solar Street LightNegotiableMOQ: 50 Sets
-
Phocos CML 5/8/10/15/20 Solar Charge ControllerNegotiableMOQ: 50 Pieces
-
12V 24V Automatic Recognization Solar Charge ControllerNegotiableMOQ: 50 Sets
Specifications
12V Solar Charge ControllerBattery state of charge display with 3 LED
Acoustic load disconnect pre-warning
PWM-regulation
Phocos 12V Solar Charge Controller
- Feature of solar charge controller
1.Battery state of charge display with 3 LEDs
2.Acoustic load disconnect pre-warning
3.PWM-regulation
4.Boost, equalize and float charging, also for VRLA
5.Automatic 12/24 V detection
6.Integrated temperature compensation
7.Large terminals (up to 16 mm² wire size)
8.SOC and voltage controller LVD
9.Fully electronically protected

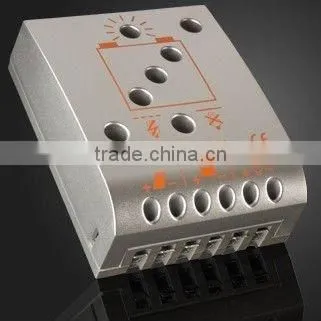

The CML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable tosealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.
- Parameter of solar charge controller
Type |
CML 05 |
System Voltage |
12/24 V auto recognition |
Max. Charge/Load Current |
5 A |
Float Charge |
13.7/27.4 V (25°C) |
Boost Charge |
14.4/28.8 V (25°C), 2Std. Activation:battery voltage<12.3/24 |
Equalization |
14.4/29.6 V (25°C), 2Std. Activation:battery voltage<12.1/24 |
|
Deep Discharge Protection State if Charge Dependent Voltage Dependent Reconnect Level |
11.4-11.9 V/ 22.8-23.8 V 11.0/22.0 V 12.8/25.6 V |
Overvoltage Protection |
15.5/31.0 V |
Undervoltage Protection |
10.5/21.0 V |
|
Max.Panel Voltage (Overvoltage Protection by Varistor) |
30V in 12 V system 50 V in 24 V system |
Temperature Compensation(Charge Voltage) |
-25 mV/K at 12 V -50 mV/K at 24 V |
Max.Self Consumption |
<4 mA |
Grounding |
Positive grounding possible |
Ambient Temperature |
-40 to +50°C |
Max. Height |
4,000 m above sea level |
Battery Type |
Lead acid (GEL,AGM flooded) |
Wire Cross Section |
< 16 mm² |
Weight |
160 g |
Dimension(B×H×T) |
80×100×32 mm |
Type of Protection |
IP 22 |
