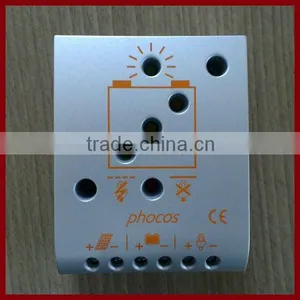

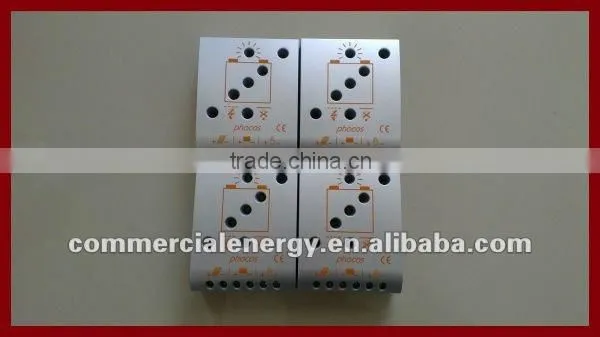

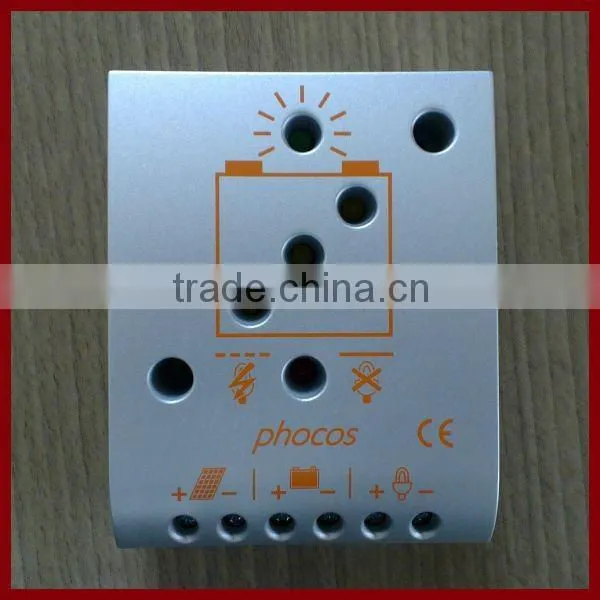

5A Solar System Solar Charge Controller

Name: 5A Solar System Solar Charge Controller
Brand: Phocos
SKU: 110443363

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Phocos

Model Number:

CML 05 Solar Charge Controller

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Phocos

Model Number CML 05 Solar Charge Controller

Application Solar System Controller

Rated Voltage 24V

Maximum Current 5 A

Specifications

Solar Charge Controller
Battery state of charge display with 3 LED
Acoustic load disconnect pre-warning
PWM-regulation

5A Solar System Solar Charge Controller

1.Battery state of charge display with 3 LEDs

2.Acoustic load disconnect pre-warning

3.PWM-regulation

4.Boost, equalize and float charging, also for VRLA

5.Automatic 12/24 V detection

6.Integrated temperature compensation

7.Large terminals (up to 16 mm² wire size)

8.SOC and voltage controller LVD

9.Fully electronically protected

Type	CML 05
System Voltage	12/24 V auto recognition
Max. Charge/Load Current	5 A
Float Charge	13.7/27.4 V (25°C)
Boost Charge	14.4/28.8 V (25°C), 2Std. Activation:battery voltage<12.3/24
Equalization	14.4/29.6 V (25°C), 2Std. Activation:battery voltage<12.1/24
Deep Discharge Protection State if Charge Dependent Voltage Dependent Reconnect Level	11.4-11.9 V/ 22.8-23.8 V 11.0/22.0 V 12.8/25.6 V
Overvoltage Protection	15.5/31.0 V
Undervoltage Protection	10.5/21.0 V
Max.Panel Voltage (Overvoltage Protection by Varistor)	30V in 12 V system 50 V in 24 V system
Temperature Compensation(Charge Voltage)	-25 mV/K at 12 V -50 mV/K at 24 V
Max.Self Consumption	<4 mA
Grounding	Positive grounding possible
Ambient Temperature	-40 to +50°C
Max. Height	4,000 m above sea level
Battery Type	Lead acid (GEL,AGM flooded)
Wire Cross Section	< 16 mm²
Weight	160 g
Dimension(B×H×T)	80×100×32 mm
Type of Protection	IP 22
