Specifications
1.Brand name: Phocos2.Battery charging with 3LEDS
3.12/24V auto detection
4.PWM-regulation

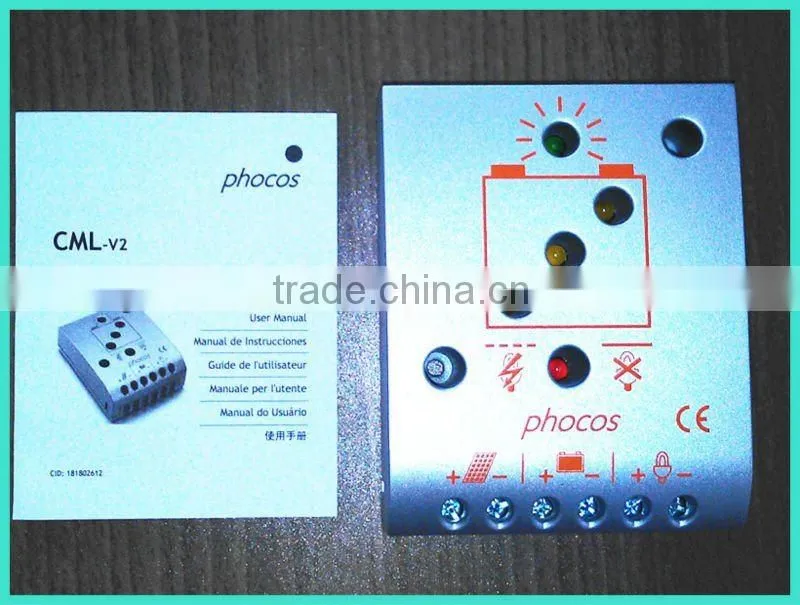

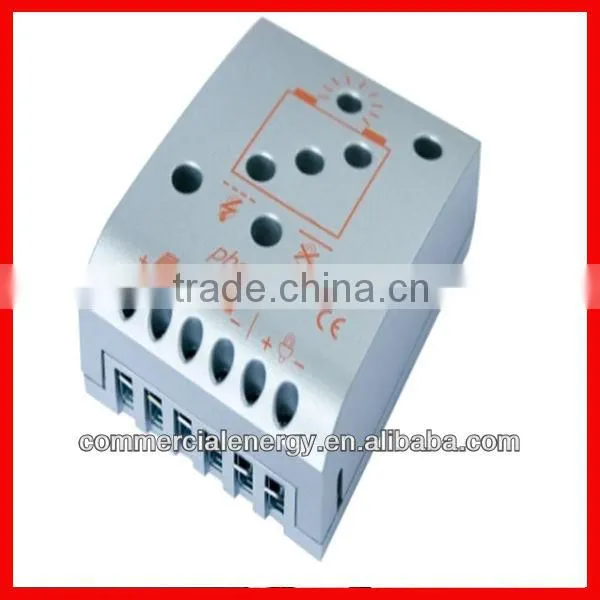

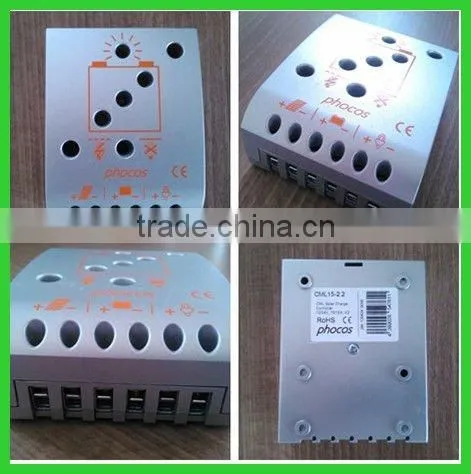

Phocos CML solar power charge controller
Feature:
•Battery State-of-Charge display with 3LEDS
•Acoustic load disconnect pre-warning
•PWM-regulation (series type)
•Boost, Equalize and Float charging, also for VRLA
•Automatic 12/24V detection
•Integrated temperature compensation
•Large terminals (up to 16 mm wire size)
•SOC and voltage controlled LVD
•Fully electronically protected
The CML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs. As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre- warning feature
TYPE |
CML 05 |
CML08 |
CML10 |
CML15 |
CML20 |
System voltage |
12/24 V auto recognition |
|
|||
Max. charge/load current |
5A |
8A |
10A |
15A |
20A |
Float charge |
13.7/27.4 V (25 °C) |
|
|||
Boost charge |
14.4 /28.8V (25 °C), 2 Std. activation: battery voltage < 12.3/24.6 V |
|
|
||
Equalization |
14.8/29.6 V (25 °C), 2 Std.
activation: battery voltage < 12.1/24.2 V |
||||
Deep discharge protection: |
|
||||
State of charge dependent |
11.4-11.9 V/ 22.8- 23.8 V |
||||
Voltage dependent |
11.0/22.0 V |
||||
Reconnect level |
12.8/25.6 V |
||||
Overvoltage protection |
15.5/31.0 V |
||||
Undervoltage protection |
10.5/21.0 V |
||||
Max. panel voltage |
30 V in 12 V system |
||||
(Overvoltage protection by varistor) |
50 V in 24 V system |
||||
Temperature compensation |
−25 mV/K at 12V |
||||
(Charge voltage) |
−50 mV/K at 24V |
||||
Max. self consumption |
< 4 mA |
||||
Grounding |
positive grounding possible |
||||
Ambient temperature |
−40 to +50 °C |
||||
Max. height |
4,000 m above sea level |
||||
Battery type |
lead acid (GEL, AGM, flooded) |
||||
Wire cross section |
< 16 mm2 |
||||
Weight |
160 g |
||||
Dimensions (W x H x D) |
80 x 100 x 32 mm |
||||
Type of protection |
IP22 |
||||
