IP68 Water Proof Phocos Solar Charge Controller

IP68 Water Proof Phocos Solar Charge Controller thumbnail-1
IP68 Water Proof Phocos Solar Charge Controller photo-1
US$ 1 - 2 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Phocos
Model Number:
CIS 05/10/20
Contact Supplier Request Quote Chat Now
Qingdao Commercial Energy Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Phocos
Model Number CIS 05/10/20
Application Charger Controller
Rated Voltage Other, 12V/24V
Maximum Current 05/10/20A

Specifications

IP68 water proof Phocos solar charge controller
*IP68 protection
*design for solar street light
*optioanl:remote control

Phocos solar charge controller



Ten times compensation for each replica (fraudulent,fake,ingeniune,sham) product found.

  • PV-Systems exposed to extreme weather/environmental conditions (street lights, navigation buoys, etc.) have increased risk for damage in the power electronics. In order to assure reliable battery charge control under such conditions, Phocos developed an encapsulated charge controller (IP68) to prevent corrosion: CIS.
  • CIS is an industrial-grade charge controller that is suitable for all practical PV applications. High-quality, 4-stage PWM-charging is combined with amazing features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display. CIS is available in two versions:
    • Dual load to independently control two loads.
    • Output Dimming to save energy in lighting applications.
  • The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.

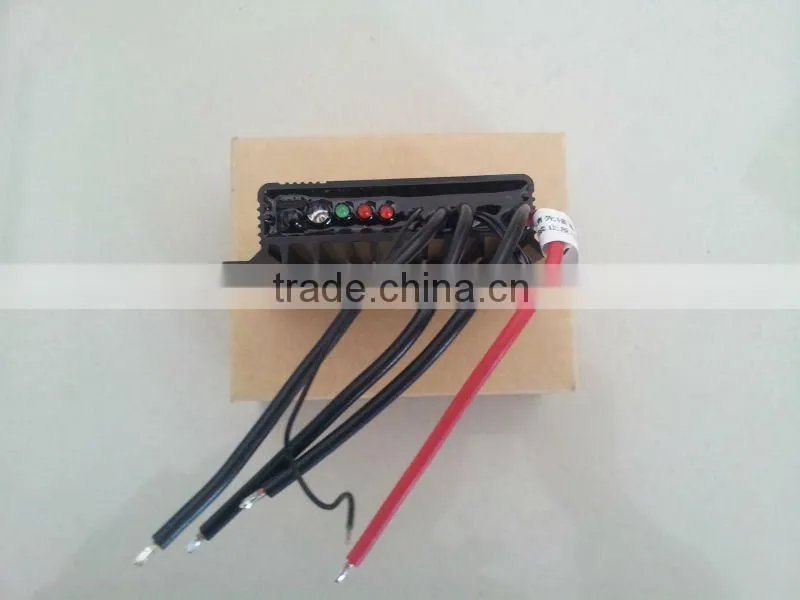

  • All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, physical shock) where components make electrical contact to the controller.

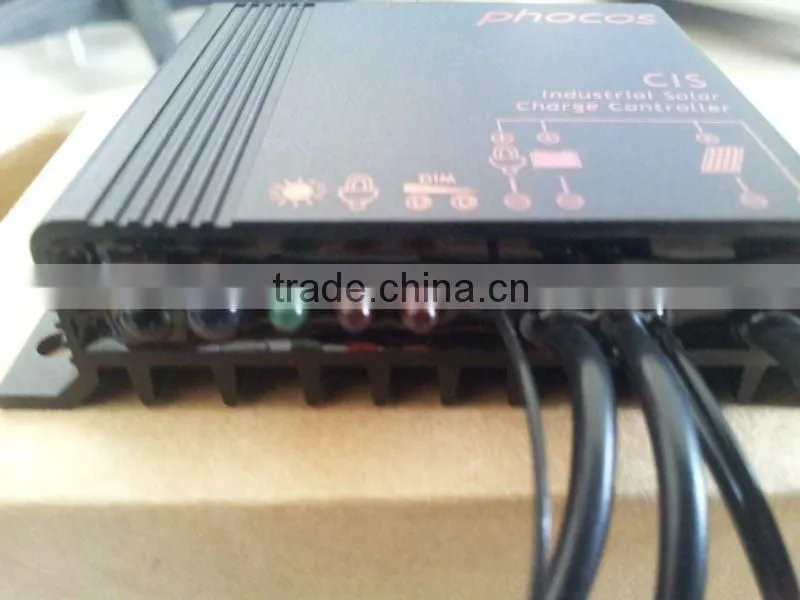

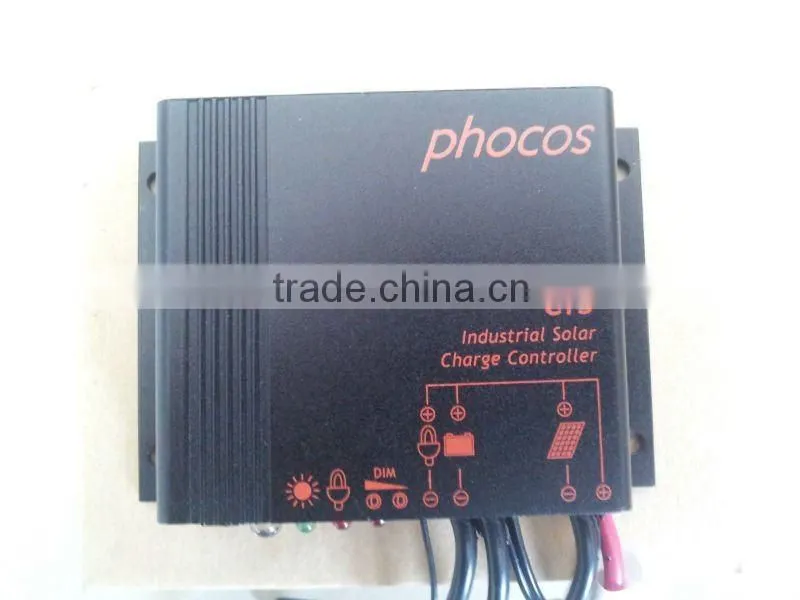

  • The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance ratio.
  • The CIS family is making room for some new members: the CIS-N and CIS-LED. The CIS-N and CIS-LED series have all the great features of the original CIS series, with the added benefit of negative grounding.
  • The CIS-N is designed especially for applications in the gas and oil industry, such as remote monitoring, weather stations, valve controlling, SCADA, and many more.
  • The CIS-LED combines three functions in one: Charge controller + flexible timer + LED drivers, making it perfect for users of solar LED lamps and solar LED street lights.
  • Robust Aluminum Housing
  • Epoxy Encapsulated PCB to Prevent Corrosion (IP68)
  • Compact Size

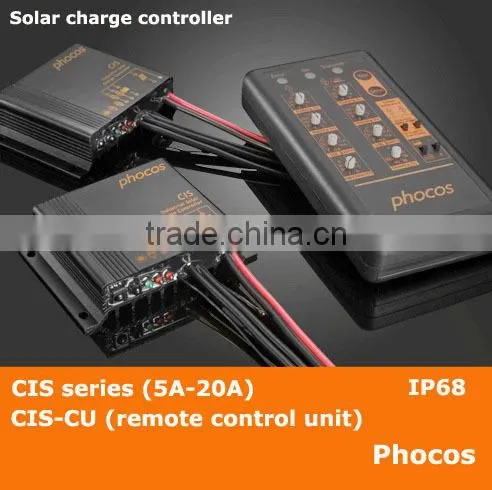

  • Infrared Remote Control Programming Accessory (CU)
  • Intelligent Timer Functions
  • Widely Programmable
  • External Temperature Sensor (Optional)
  • 4 Stage Battery Charging (Main, Float, Boost, Equalization)
  • Dual load or Dimmable Load Output
  • Automatic System Voltage Recognition (12/24 V)
Type

CIS 05

CIS 10

CIS 20


CIS-2L 05

CIS-2L 10

CIS-2L 20
System voltage 12/24 V auto recognition
Max. charge/load current 5 A



10 A

20 A
Float charge 13.8/27.6 V (25 °C)
Main charge 14.4/28.8 V (25 °C), 30 min. (daily)
Boost charge 14.4/28.8 V (25 °C), 2 h
activation: battery voltage <12.3/24.6 V
Equalization 14.8/29.6 V (25 °C), 2 Std.
activation: battery voltage <12.1/24.2 V (at least every 30 days)
Deep discharge protection: Cut-off voltage
Reconnect level

11 – 12 V / 22 – 24 V
12.8/25.6 V
Overvoltage protection 15.5/31.0 V
Undervoltage protection 10.5/21 V
Max. panel voltage
(Overvoltage protection by varistor)		 55 V
Temperature compensation
(Charge voltage)		 −25 mV/K at 12 V
−50 mV/K at 24 V
Max. self consumption 5 – 8 mA at 12 V
6 – 10 mA at 24 V
Grounding positive grounding possible
Ambient temperature −40 to +60 °C
Max. height 4,000 m above sea level
Battery type lead acid (GEL, AGM, flooded)
Adjustment range:
Evening/morning
hours Night/day detection
0 – 15 h / 0 – 14 h
2.5 – 10 V

Wire length 10 cm
Dimensions (B x H x T ) 82 x 58 x 20 mm
Weight 150 g
Wire cross section

1.5 mm2

1.5 mm2

2.5 mm2
Type of protection IP68 (1.5 m, 72 h)
Technical data dimming output

CIS 05

CIS 10

CIS 20
Dimming value 0 – 100% output power
Dimming output voltage 0 – 10 V (max. 1 mA)

IP68 water proof Phocos solar charge controllerIP68 water proof Phocos solar charge controllerIP68 water proof Phocos solar charge controllerIP68 water proof Phocos solar charge controllerIP68 water proof Phocos solar charge controller
