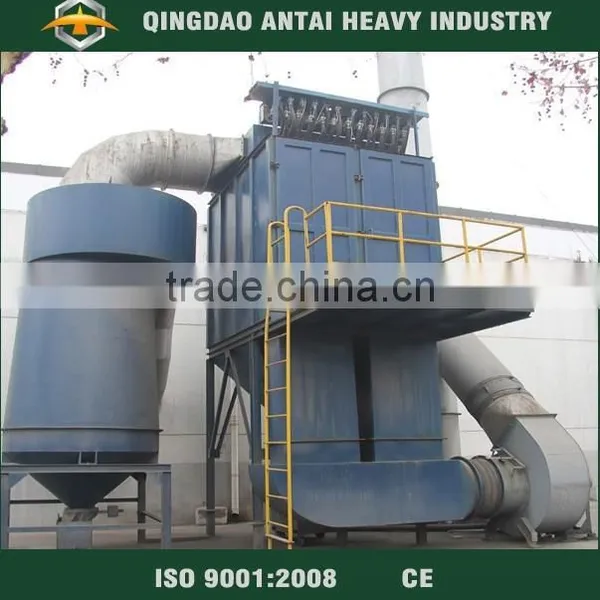

Industrial dust collector
1.Industrial dust collector description
The industrial dust collector is the most effective way to process dust smoke air at present time. High pressure air is used to blow off the dust sticking on bag surface. The pulse controller will control the blow-off time and interval. The working theory is: the pulse controller on top of dust collector will blow the bags in regular time, preset the pulse length and interval. The action of electromagnetic valve is controlled by pulse controller. The order of electromagnetic valve action is from left to right side.
Parameter of the industrial dust collector
Type |
Amount of filtering bag(piece) |
Filtering area(m²) |
Width(mm) |
Wind capacity treatment(m³/h) |
FD601 |
72 |
108 |
1150 |
6500-13000 |
FD610 |
108 |
162 |
1630 |
9700-19500 |
FD602 |
144 |
216 |
2198 |
13000-26000 |
FD611 |
180 |
270 |
2678 |
16500-32500 |
FD620 |
216 |
324 |
3158 |
19500-39000 |
FD612 |
252 |
378 |
3726 |
22700-45400 |
FD621 |
288 |
432 |
4206 |
26000-52000 |
FD630 |
324 |
486 |
4686 |
30000-60000 |
FD622 |
360 |
540 |
5254 |
33000-66000 |
FD631 |
396 |
594 |
5734 |
36000-72000 |
FD640 |
432 |
648 |
6214 |
39000-78000 |
FD632 |
468 |
702 |
6782 |
43000-86000 |
FD641 |
504 |
756 |
7262 |
45000-90000 |
FD650 |
540 |
810 |
7712 |
49000-98000 |
FD642 |
576 |
864 |
8310 |
52000-104000 |
FD651 |
612 |
918 |
8790 |
55000-110000 |
|
This is the parameter of our standard products , machines can be individually designed according to your requirements | ||||
3D design
Working theory
Working theory of FD series dust collector is settlement flow and outer surface filtration. After filtration, the dust is blocked on outer surface of bags, and clean air will be exhausted to open air through ducting under blower working. The efficiency of this dust collector can reach 99.9%,and dust emission concentration is less than 50mg/m 3 .

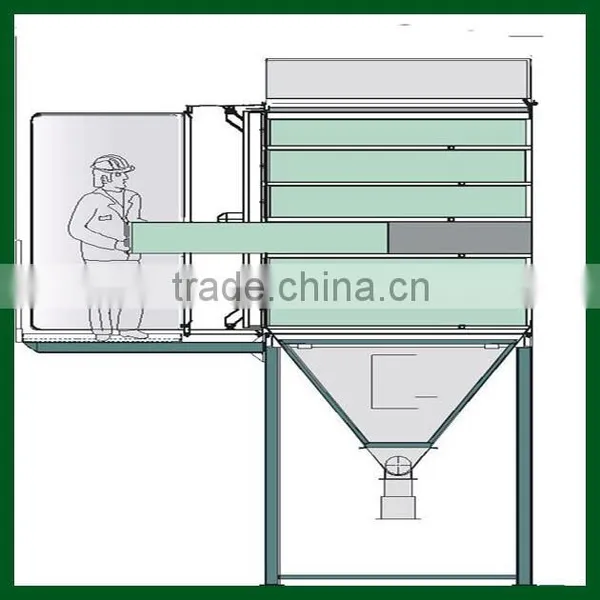

The bags are very convenient to repair and replace from the dust collector side, standing on platform. It avoids climbing to the top for replacement which happened in old type dust collector.
Application Field
♦ Founded in 2003, 10 years experience for making shot blasting machine.
♦ Fifteen experienced engineers to consider every possibility for customers.
♦ Five of them has over 25 years knowledge of shot blasting technology.
♦ 3D software for auxiliary design. Show every design details in front of you.
♦ Experienced technicians for production, installation, commissioning & service.
♦ ISO 9001 and CE certified company.
♦ All machining parts out sourced from professional CNC machining company with strict quality control procedure.
♦ Own foundry to produce special material spare parts for our machines.
certificate
Our products have already obtained seven parents
Equipment painting completed before delivery, and then wrapped with stretch film,avoid rubbing the paint off the surface,wooden packaging can be customized, key parts, such as electronic control box,will be wrappedd by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract.At the same time,the company established a long-term cooperative relation with cosco,for ensuring the goods arriving port on time.
What service antai can supply?
1: Our engineers can design according to customers' requirements,and send to customers for confirmation, to help customers save costs.
2:During equipment producing, we take pictures for the production schedule, and send to customers to track progress .
3: After the goods shipped , we will send original documents to customers, such as packing list, invoice, certificate(CO,Form E,Form F,Form A,Form M,etc), B/L.
4: Foundation drawings, installation drawings, operating manuals, maintenance manuals and parts drawings in Enlish can be provided freely.
5:We can send engeers to overseaas for installation,debugging and training. customers' operators and maintenance workers for free.
6:About the spare parts, we have a set of after-sales service system,each customer will get an ID, customers can log in to this system to see all the information and parts of the equipment purchased by themselves. providing 24-hour online consultation.
1.How many days do you need to produce this industrial dust collector ?
This is specially designed machine according to your specific requirement . From engineer designing to production completion , it needs about 45 to 60 days.
2.What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production . Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year . We choose world famouse brand components to keep our machine in perfect working condition .
4.Are you able to give installation and commissioning overseas?How long will it take ?
Yes , we supply overseas service ,but customer needs to pay for the engineers' flight tichkets and hotel , food .
Small machine usually takes within 5 days .
Big machine usually takes about 20 days.
5.How can i trust you to deliver the right machine as i ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order . The core of our company culture is innovation , quality , integrity and efficiency . Antai is ALIBABA'S GOLDEN supplier with BV & TUV assessment . You can check with ALIBABA , we have never got any complaint from our customers.
If the machine is not suitable for your workpiece, please tell us the following information:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your requirements , the most reasonable machines can be
designed by our engineers .
