Automatic Trolley Type Shot Blasting Machine

Automatic Trolley Type Shot Blasting Machine thumbnail-1
Automatic Trolley Type Shot Blasting Machine photo-1
US$ 40,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Antai
Model Number:
Q7630
Contact Supplier Request Quote Chat Now
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Antai
Model Number Q7630

Specifications

1.rotary table blasting
petitive price
mpt delivery
4.suitable for big castings ,steel parts
5.big load capacity

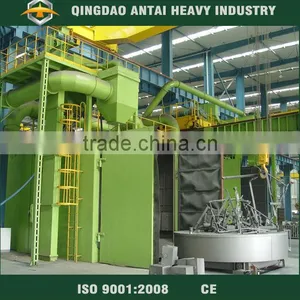

Automatic trolley type shot blasting machine

Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

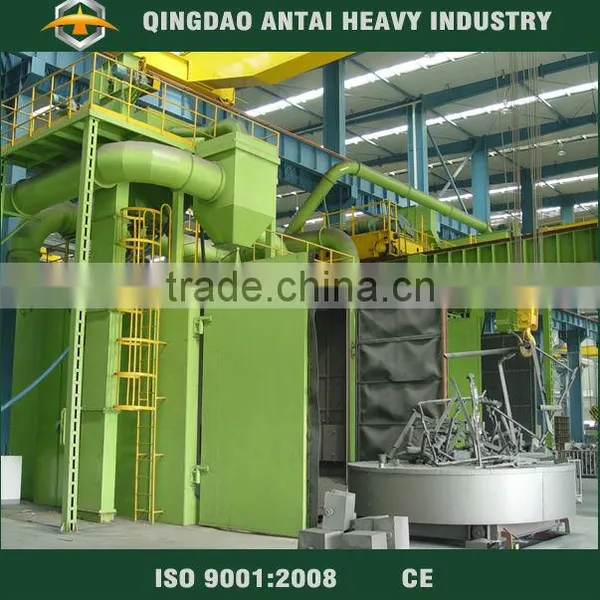

Rotary trolley shot blasting machine throws high speed shot to surface of big castings to remove gravel and scale.

The high speed turbines of rotary trolley shot blasting machine throw steel shot to surface of the workpiece on the trolley so as to remove sticky gravel and scale on big castings, obtaining natural metal color with cetain roughness. Usually, shot blasting is not enough to clean castings with deep angle or convex surface. Air sand blasting becomes a auxiliary method to it. This series of blasting machine mainly applied to clean large works such as construction machinery, machine tools, metallurgy, motor parts and mining machine parts

Specification of rotary table blasting machine:

No. Model
Item		 Q765C Q7610 Q7620 Q7630 Q7640 Q7650 Q7660 Q76120
1 Size of workpiece mm Φ2000
*730		 Φ2500*
860		 Φ2500*
1100		 Φ3700*
980		 Φ4000*
1120		 Φ4850*
1280		 Φ5000*
1280		 Φ7000*
1500
2 Load capacity kg 5000 10000 20000 30000 40000 50000 60000 120000
3 Abrasive flow rate kg/m 2*250 3*250 4*250 5*250 6*250 6*250 7*250 10*250
4 Air pressure Mpa 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6
5 Air consumption M3/m 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5
6 Elevating amount t/h 30 45 60 75 90 90 105 150
7 Separating amount t/h 30 45 60 75 90 90 105 150
8 Ventilation capacity M3/h 16000 20000 25000 30000 35000 35000 40000 60000
9 Power(no dust collector) kw 54 72 91 115 148 162 188 280
10 Outline
dimension		 mm 9000*
5200*
9290		 14900*
5500
*8100		 16900*
6540
*10028		 9168*
7680
*10874		 15000*
8200
*11000		 15800*
8600
*11960		 16800*
8670
*11800		 26000*
15000
*11000
