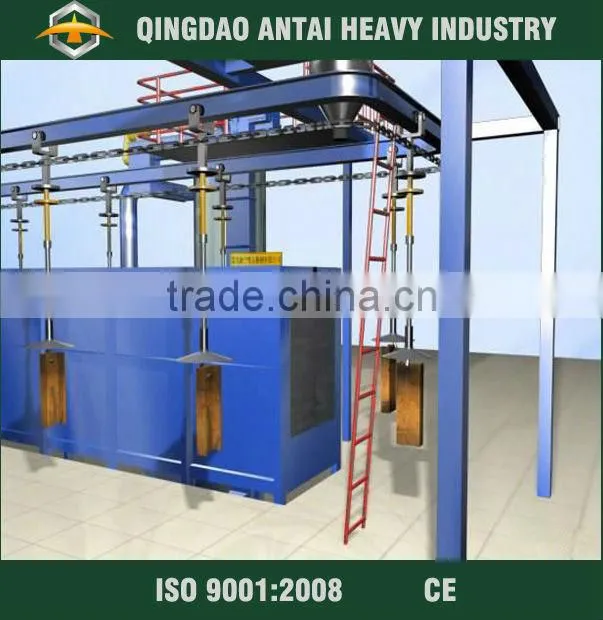

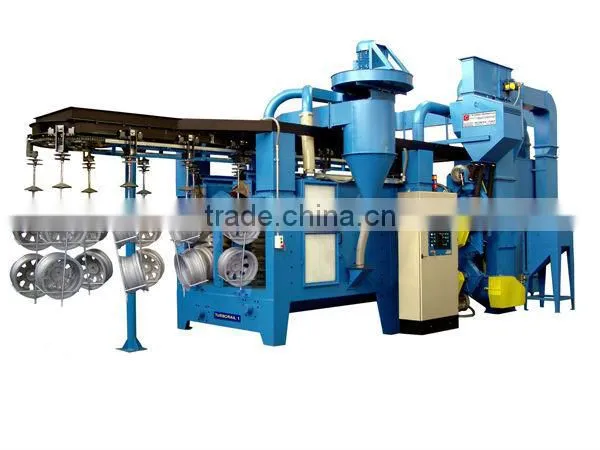

Help CenterQT37 Hanger Type Shot Blast Cleaning Machine
Related Products
-
Abrasive Trolley Shot Blasting MachineUS$ 30,000 - 60,000MOQ: 1 Set -
Rotary Table Shot Blasting MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
Q3515 Rotary Table Shot Blasting MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
Floor Shot Blasting MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Road Shot Blasting Machine/floor Shot Blasting Equipment/road Shot Bast Equipment/floor Shot BlasterUS$ 7,000 - 30,000MOQ: 1 Set
Specifications
1. Design based on requirements.2. Prompt delivery.
3. ISO 9001:2008.
4. Shot blast wheel.
5. Rotary blasting process.
•Founded in 2003, is mainly focus on the prouduction and development of casting machinery and enviromental protection.
•After exploring market for 10 years, it gradually formed three leading products: surface cleaning, sand treatment, environmental protection equipment.
•One of the industrialization of entity collecting scientific reseaech, development,production and operation.It has fomed the domestic engineering center of complete sets equipment for shot blast cleaning machine.
•Production desigh all adopt CAD computer aided design.The production base and thchnology development center of casting machinery which has whole variety, high technical content in China foundry machinery industry.
•As a foundry machinery professionaol manufactuers, the company has advanced level at technology, product quality and automation level in the same industry at home.
• Specially equipped with wear-resistant parts factory, to provide customers the best quality accessories service.
The series has three types: continuous mix, step-by-step and accumulating roller conveyor.
Q38 Q48 Q58 cleaning machines are suitable for processing large batches middle and small sized work pieces.

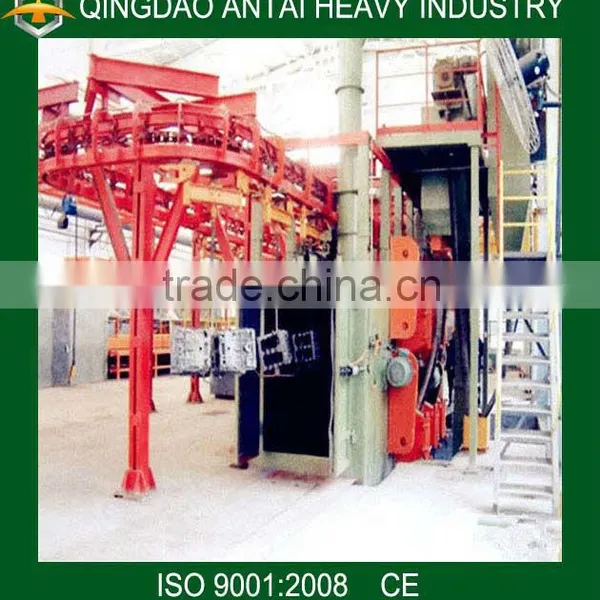

The work pieces, along with the pendent chain, move continuously or step-by-step, or by accumulating roller conveyor transportating.
They can stop at given position and shot-blasting room.
It is very easy and exact to finish the static loading/unloading and shot blasting works.
The single hook can load capacity of 50-2000kg, accumulating roller chains has unique advantages: high efficiency and reliable operation.
Technical specification:
Model Q483:
1. Maximum weight of single piece: 300 kg
2. Piece size: Φ1000*1400 mm
3. Capacity of shot-blasting: 2*250 kg/min
4. Productivity: 30-50 hook/h
5. Speed of pendant chain: 2.44 m/min
6. Lifting distance of pendant chain: 2560 min
7. Total ventilation capacity: 6000 m3/h
8. Power(excluding dedusting): 38.75 kw
Other models’specification:
No |
Item Model |
Pendant chain step-type blasting machine |
Pendant chain continuous blast machine |
||||
Q483 |
Q485 |
Q4810 |
Q583 |
Q5810 |
|||
1 |
Max weight of piece |
kg |
300 |
500 |
800 |
300 |
1000 |
2 |
Size of workpiece |
mm |
1000*1400 |
1200*1700 |
700*2400 |
1000*1500 |
750*2400 |
3 |
Abrasive flow rate |
kg/m |
2*250 |
3*250 |
6*360 |
4*250 |
6*360 |
4 |
Productivity |
Hook/h |
10 |
10 |
10 |
30-60 |
50 |
5 |
Speed of chain |
m/min |
2.44 |
7.34 |
2.44 |
Converter speed |
|
6 |
Lifting distance of pendant chain |
mm |
2560 |
2560 |
2560 |
1000 |
|
7 |
Ventilation capacity |
M3/h |
6000 |
10000 |
25000 |
18000 |
25000 |
8 |
Power(not include dust collector) |
kw |
38.75 |
58.43 |
85 |
127.25 |
160 |
9 |
Outline dimension |
mm |
8450*5350 |
12235*5410 |
4500*5350 |
18000*5960 |
17700*9615 |
Any steel plate shot blasting machine can be designed according to your requirement.
