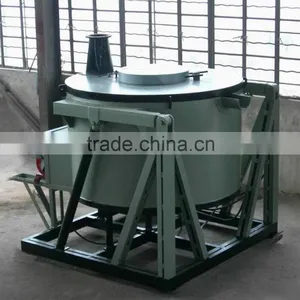

Foundry Equipment Stainless Steel Melting Furnace for Sale
Brief
This melting furnace is mainly used for aluminum for melting and heat preservation, also can be used for low-melting-point nonferrous metals and alloy such as zinc, stannum, copper, plumbum, cadmium for melting and heat preservation. This melting furnace has advantages of high heat efficiency, simple construction, user-friendly control, low power consumption etc.
Structure
This melting furnace is composed of furnace shell, furnace lining, furnace lid, crucible, electrical heater, temperature control system, aluminum leakage hole and aluminum leakage alarm device.
1. Furnace shell
Furnace shell is ring-shaped, welded by steel plate and section steel, furnace panel is made of 10 mm Q235 steel plate.
2. Furnace lining
Furnace lining is made of high alumina refractory brick , light-weight insulating brick and aluminum silicate fiber cotton. This energy-saving type furnace lining structure has advantages of fast temperature rising , excellent heat preservation performance, remarkable energy saving effect.
3. Electrical heater
Electrical heater using spiral shape high resistance electrical heating alloy 0Cr25Al5 resistance wire, Good corrosion resistance and shape stability, high efficiency.
4. Furnace lid
The furnace lid is split type, composed of two half-round furnace lid, one side is fixed in furnace panel by revolving shaft, and the other side have hand shank, which makes it flexible to open and close the furnace lid.
5. Crucible
Can equip with graphite crucible or stainless steel crucible according to user’s needs.
The advantage of graphite crucible: excellent thermal conductivity and high-temperature resistance performance, strong corrosion resistance.
The advantage of stainless steel crucible: long service life, more cost-effective.

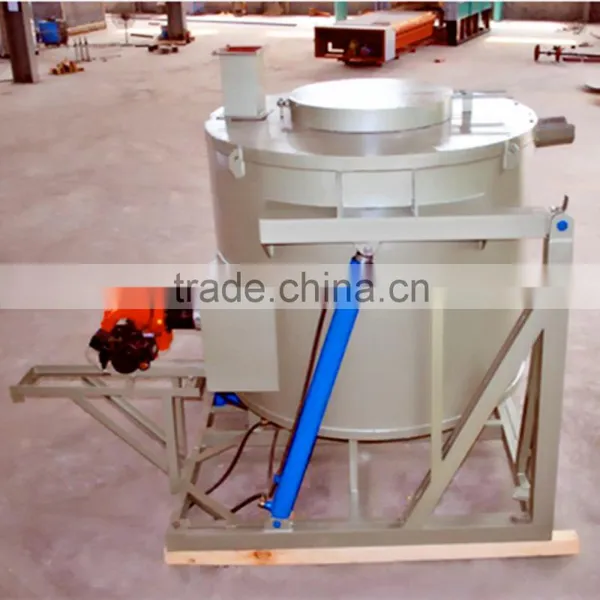

6. Tilting device:
This furnace can be designed into tilting type. There are manual tilt and electric tilt can be selected.
7. Control system
The furnace is controlled by intelligent digital display PID, have functions of temperature control, over-temperature alarming, automatic power off protection etc, can ensure a precise and reliable temperature control.
8. Aluminum leakage hole and aluminum leakage alarm device
aluminum leakage hole and aluminum leakage alarm device are installed at the bottom of furnace, easy and rapid to replace, can protect the furnace effectively.
Technical parameters
Model |
GR2-5-10 |
GR2-12-10 |
GR2-30-10 |
GR2-40-9 |
GR2-60-8 |
GR2-75-8 |
|
Rated power(kw) |
5 |
12 |
30 |
40 |
60 |
75 |
|
Rated voltage(V) |
220 |
380 |
380 |
380 |
380 |
380 |
|
Max.temperature(°C) |
1000 |
1000 |
1000 |
950 |
850 |
850 |
|
Working temperature(°C) |
0-850 |
0-850 |
0-850 |
0-850 |
0-850 |
0-850 |
|
Phase |
1 |
3 |
3 |
3 |
3 |
3 |
|
Furnace hearth size |
Diameter(mm) |
¢170 |
¢245 |
¢385 |
¢420 |
¢440 |
¢510 |
Depth(mm) |
200 |
265 |
480 |
500 |
570 |
680 |
|
Heating element connection |
parallel |
Y |
Y |
Y |
YY |
YY |
|
|
Non load heating up time (h) |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.5 |
≤3 |
|
Capacity(Aluminum)kg |
5 |
20 |
60 |
84 |
150 |
270 |
|
Rmarks: Various size melting furnace can be also designed and manufactured as user's needs.
Picture Show;
FAQ:
1. What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.
2. Are you a manufacturer or trade company?
We are a manufacturer. You can assure that we are a producer with full experience doing business in domestic and oversea.
3. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage hasn’t happened before, if happen, we will arrange replacement.
4. You are a green hand on Alibaba, how can I trust your company and machine?
Our factory have been in induction heating for around 12 years, just entering alibaba for ads .And our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints.
