water cooling spindle 5.5kw heavy duty cnc marble carving machinery
Products features:
1.lethe bed uses thick-walled square tube structure with good rigidity and strength that can load heavy materials weighting up to one ton.
2.High-power spindle provides large cutting intensity and high efficiency.
3.Tool cooling system ensures effectively processing effect and improves tool life.
4.Water/dust proff on three axes makes transmission system clean and rust-proff for good accuracy and longer life.
5.Automatic oiling system can lubricate rails to ensure working accuracy,effectively extending machine’s lifespan.
Technical specification:
Model |
QL-1325 |
Optional
|
Working area (X*Y*Z,mm) |
1300*2500*300 |
customization is available
|
Machine structure |
Thick-walled square tube structure lathe bed and T-slot table of sectional materials |
|
Working holding |
by clamps |
|
Overall dimension |
3050*2800*1700 |
|
Precision(mm) |
0.07
|
|
Position accuracy(mm) |
0.02
|
|
Repeatability(mm) |
0.02
|
|
Lding speed (mm/min) |
9,000
|
|
Working speed(mm/min) |
5,000 |
|
Spindle |
5.5kw,water-coolin(0-24000rpm) |
air-cooling(0-18000rpm),any KW
|
Available tools(mm) |
φ3.175~φ12.7
|
|
Drive system |
Stepper motor |
Servo motor
|
Working voltage |
AC380V±30V,50HZ |
|
Command code |
G Code(*.nc,*.mmg,*.u00,etc),*.eng
|
|
Control system |
NcStudio |
DSP or depend on your needs |
Compatible software |
Window98/XP/7 G code |
|

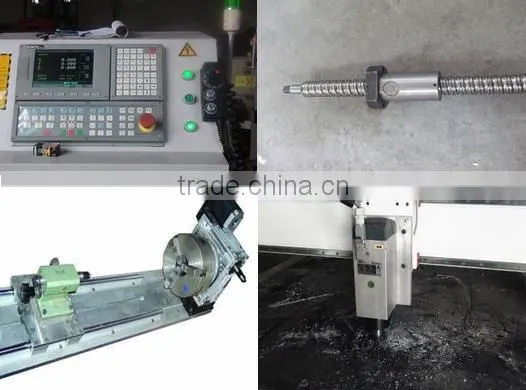

cnc router parts :

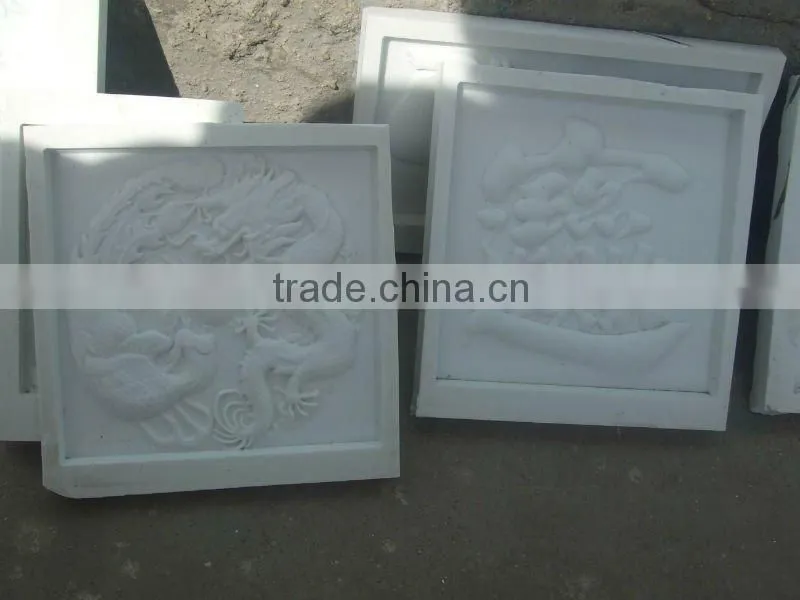

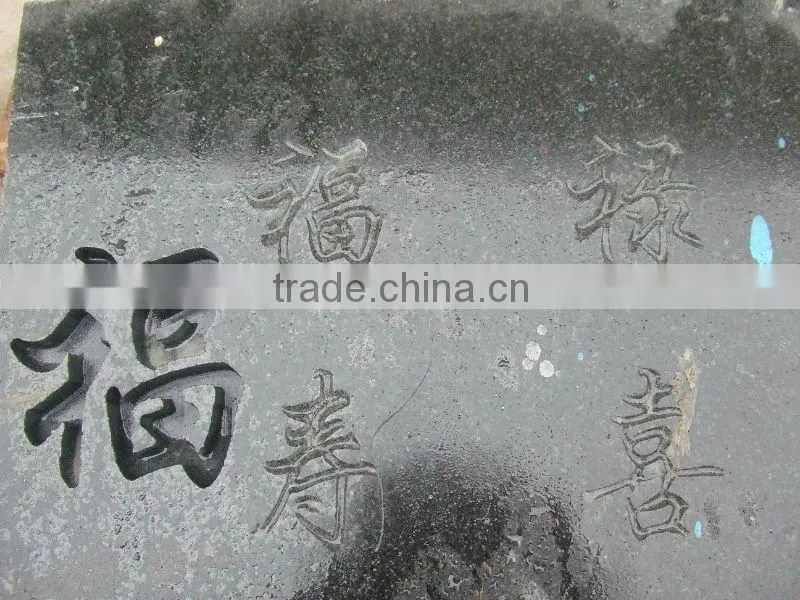

sample made by stone carving engraving cnc router:
Suitable to not only stone engraving for tombstone ,tile or other related industries,but also can do jobs with skill and ease on common material in woodworking ,advertising and metal industry with a wide range and application and high practicality.
looking for agents all over the world
welcome your inquiry or visit our factory
