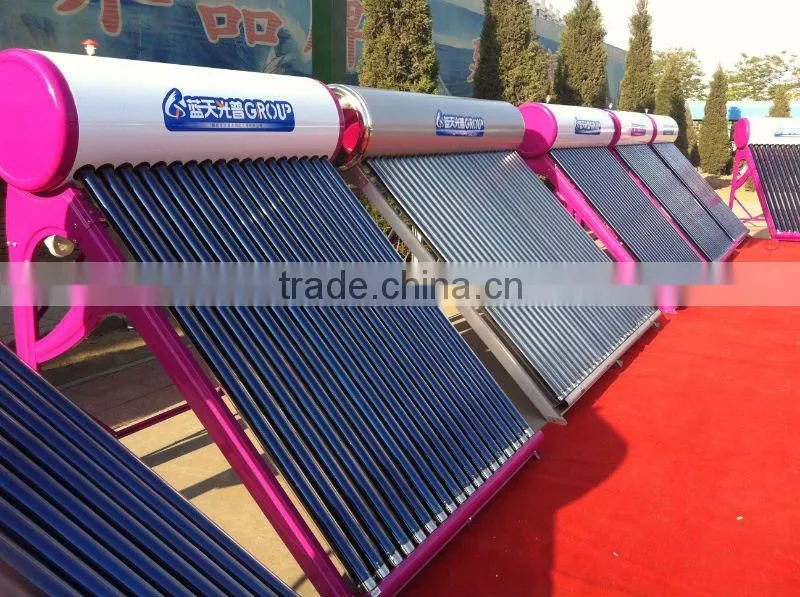

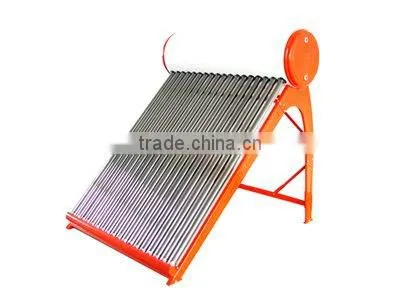

Help CenterDouble-vacuum All-glass Solar Collector Heater
Related Products
-
Double-vacuum All-glass Solar Collector HeaterUS$ 200 - 400MOQ: 5 Units -
Solar Energy Project (double Vaccum Tube)US$ 1,800 - 2,500MOQ: 2 Tons
-
Double-vacuum All-glass Solar CollectorUS$ 270 - 400MOQ: 10 Pieces
-
Double-vacuum All-glass Solar CollectorUS$ 270 - 400MOQ: 10 Pieces
-
Double-vacuum All-glass Solar Collector HeaterUS$ 270 - 400MOQ: 10 Pieces
Specifications
china patentating material SS-C/CU
2.certificate CE ISO9001
3.OEM is available
4.testing machine UV3600
Water tank inner cylinder: thickened SUS304 stainless inner cylinder, diameter Φ360mm, thickness δ=0.31mm
Water tank outer cylinder: white pearl board, diameter Φ470mm, thicknessδ=0.32mm
Insulated layer: adopting full-automatic constant temperature quantitative foaming process to manufacture the insulated layer(55 to 60mm), subjected to high-temperature curing treatment, compact and uniform cells, high thermal insulation effect
Bracket: red, hot-dipping zinc galvanized plate, adopting anti-corrosive treatment process to guarantee the tightness and anti-corrosion of the bracket, high bearing and windproof properties, long service life which is as long as more than ten years

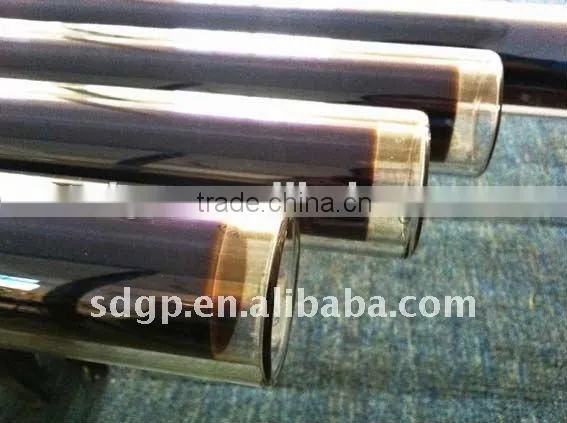

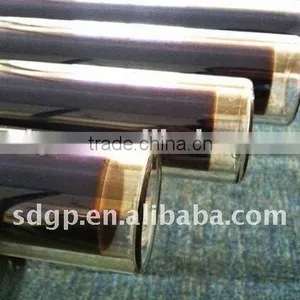

Vacuum tube: Φ58*1,800mm double-vacuum solar collector tube, the product is a high-tech product with proprietary intellectual property rights, manufactured by the company (the patent No. 99221421.1), and has the characteristics of high-temperature resistance, anti-freezing, high heat efficiency, long service life, no leakage of water in the tube, scaling resistance, no tube explosion, no water leakage, aging resistance, high efficiency, vacuum super heat conduction, one-way heat transfer, etc.
Volume (L): 160 to 350L
Number of persons: 3 to 12
Other models:
Shenzhou 7 Light Gathering Series 16GS18/Φ58--45°
Shenzhou 7 Light Gathering Series 18GS18/Φ58--45°
Shenzhou 7 Light Gathering Series 20GS18/Φ58--45°
Shenzhou 7 Light Gathering Series 24GS18/Φ58--45°
Shenzhou 7 Light Gathering Series 30GS18/Φ58--45°
Shenzhou 7 Light Gathering Series 30GS18/Φ58--45°
