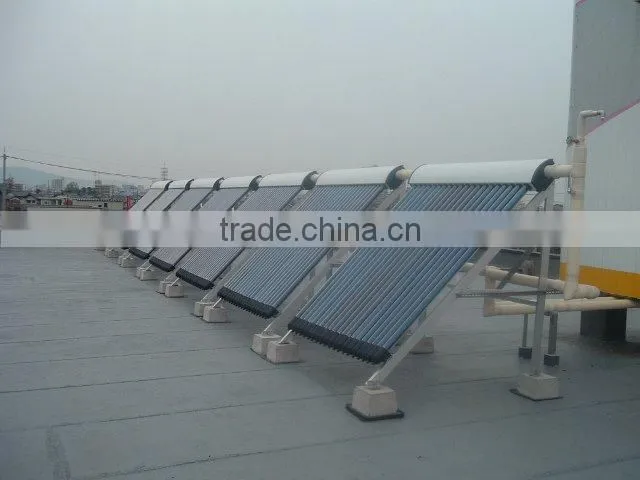

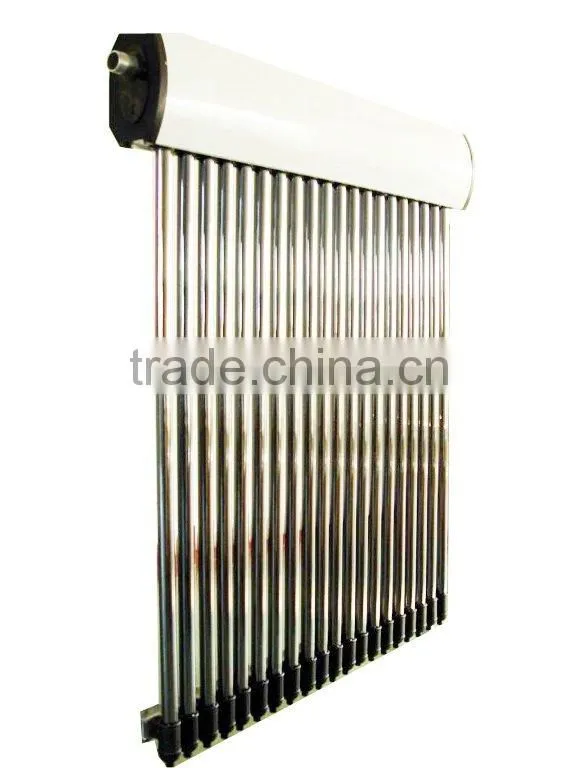

Help CenterDouble-vacuum All-glass Solar Collector Heater
Related Products
-
Full-glass Double-vacuum Shenzhou 7 Light Gathering SeriesUS$ 160 - 300MOQ: 10 Units -
Compact Solar Water HeaterUS$ 160 - 400MOQ: 10 Pieces
-
China Patented Split Double Vacuum Heat Pipe Solar Water HeaterUS$ 160 - 400MOQ: 10 Pieces
-
All Glass Double Vacuum Heat Pipe Solar Water HeaterUS$ 160 - 400MOQ: 10 Pieces
-
Solar Water Heater With China Patented Double Vacuum Solar Super Heat Conduction TubeUS$ 160 - 400MOQ: 10 Pieces
Specifications
china patentating material SS-C/CU/AL
2.certificate CE ISO9001
3.OEM is available
4.testing machine UV3600
| Specification | |
| Structure | All glass double concentric tubes |
| Material | Borosilicate glass 3.3 |
| Outer tube diameter | Φ47±0.7.mm &=1.6mm |
| Inner tube diameter | Φ58±0.7.mm &=1.6mm |
| Length | 47mm-1500mm/1600mm/1800, |
| 58mm-1500mm/1600mm/1800mm/2000mm/2100mm | |
| Coating | SS-C/Cu |
| Absorption rate after evacuating(AM1.5) | α= 0.88–0.90 |
| Emission rate after evacuating(AM1.5) | ε= 0.04–0.06(80°C±5°C) |
| Vacuum degree | P≤5.0×10¯³Pa |
| Average heat loss conficient | ULT = 0.4-0.6w(m².°c) |
| Max stagnation temperature | 260°C-300°C |
| (temperature inside of empty vacuum tube) | |
| Pressure | 0.6MPa |
| Impact Resistance | Φ≤25mm |
Water tank inner cylinder: thickened SUS304 stainless inner cylinder, diameter Φ360mm, thickness δ=0.31mm
Water tank outer cylinder: white pearl board, diameter Φ470mm, thicknessδ=0.32mm
Insulated layer: adopting full-automatic constant temperature quantitative foaming process to manufacture the insulated layer(55 to 60mm), subjected to high-temperature curing treatment, compact and uniform cells, high thermal insulation effect
Bracket: red, hot-dipping zinc galvanized plate, adopting anti-corrosive treatment process to guarantee the tightness and anti-corrosion of the bracket, high bearing and windproof properties, long service life which is as long as more than ten years
Vacuum tube: Φ58*1,800mm double-vacuum solar collector tube, the product is a high-tech product with proprietary intellectual property rights, manufactured by the company (the patent No. 99221421.1), and has the characteristics of high-temperature resistance, anti-freezing, high heat efficiency, long service life, no leakage of water in the tube, scaling resistance, no tube explosion, no water leakage, aging resistance, high efficiency, vacuum super heat conduction, one-way heat transfer, etc.
Volume (L): 160 to 350L
Number of persons: 3 to 12
