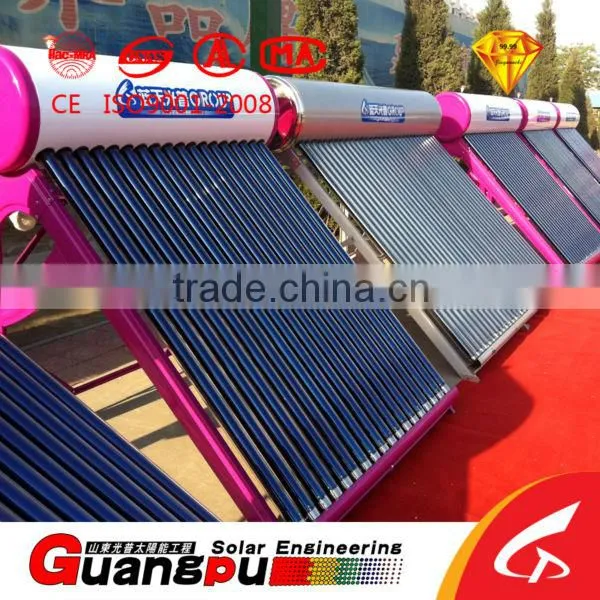

Compact Evacuated Tube Solar Water Heater for Home Use

Name: Compact Evacuated Tube Solar Water Heater for Home Use
Brand: Guangpu or OEM
SKU: 110494779

US$ 160 - 320 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Guangpu or OEM

Model Number:

47/58 120 150 160 180 190 210

Shandong Guangpu Solar Energy Project Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Guangpu or OEM

Model Number 47/58 120 150 160 180 190 210

Type Other, Non-Pressure, double vacuum heat pipe solar water heater

Application Water Heater

Pipe Material Glass

Specifications

1. 19years manufacturer for solar item
2. compact evacuated tube solar water heater for home use
3. stainless steel tank

Compact evacuated tube solar water heater for home use:

THE ADVANTAGE OF US

1. China patented, -60degree centigrade without broken.

2. Certificate CE ISO9001,famous brand.

3. OEM is available, fast delivery, all details can be changed according customer required.

4. 19years professional solar manufacturer

Description	Un-Pressurized Solar Water Heater
Water tank outer cylinder	White pearl board, diameter Φ470mm, thicknessδ=0.32mm
Water tank inner cylinder	Food grade SUS304 stainless inner cylinder, diameter Φ360mm, thickness δ=0.31mm
Tank insulating layer	55-60mm thickness,high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4
Solar vacuum tube	High Borosilicate 3.3 glass with SS-Cu-ALNx coating
Thickness of glass tube	1.6mm
Air-drying temperature	P≤2x10^-3Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80°C±5 °C )
Maximum stagnation	Y=250m²°C /kw
Average heat loss coefficient	ULT=0.4~0.6W/(m²°C )
Bracket	Galvanized steel or Aluminum alloy
Absorber area	3.25m²
Heat pipe size	High efficient 58x1800mm triple target tube
Heat pipe material	All glass
Temperature tolerance	from -60 °C to 300 °C
Tube quantity	10/16/18 / 20 /24 / / 30 / 36/42 tubes
Tank capacity	80L/100L/ 130L / 150L/ 165L / 200L / 250L / 300L/ 350L
Number of persons	3-12
