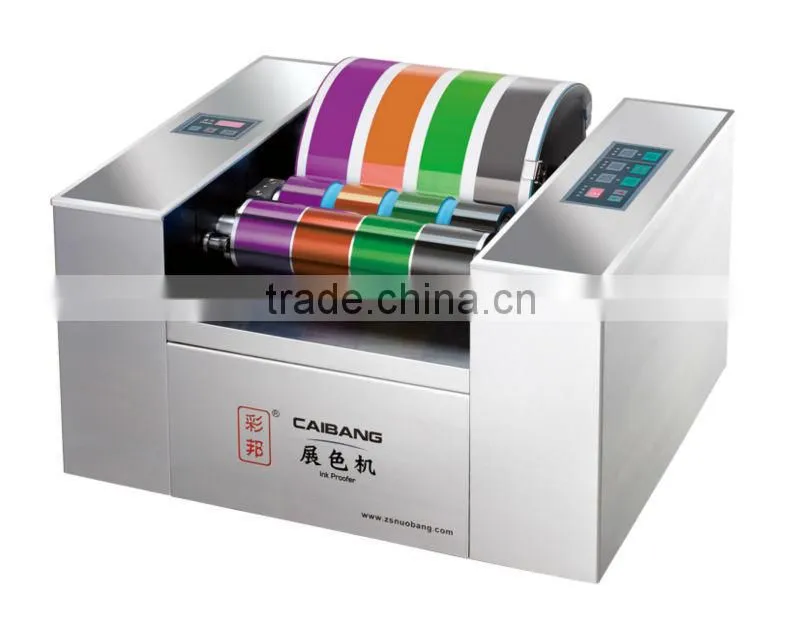

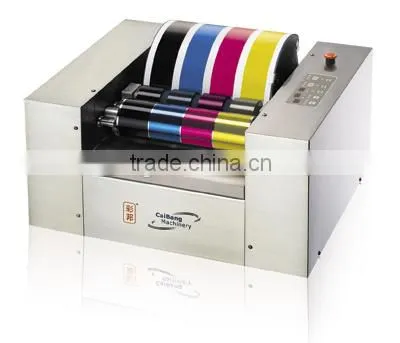

Help CenterNB229T Automatic Ink Proofer for Label &packaging Printing Inks Proofing
Related Products
-
NB229T Automatic Offset Ink ProoferNegotiableMOQ: 1 Piece -
NB229T Offset Ink ProoferNegotiableMOQ: 1 Piece
-
Printing Machine for Offset Ink ProofingNegotiableMOQ: 1 Piece
-
Label Printing Proofer Inks Spot Color ProoferNegotiableMOQ: 1 Piece
-
Caibang Cans,tin Plate Automatic Ink ProoferNegotiableMOQ: 1 Piece
Specifications
Spot color proofing;95% users in ink industry,90%users in printing&packaging industry;closest to printer
CB225A NB229T
BIG USERS:
DIC Co.,Ltd
Toyo Ink SC Holdings Co.,Ltd
Siegwerk
T&K Toka Co.,Ltd
Dainichiseika Color&Chemicals
............
Appliacable printing ink : uv flexo printing ink ,lithographic printing ink ,offset printing ink
1.Main technical parameters of Caibang NB229T automatic color mixing simulation machine
Power: AC220V, 50Hz, 250W
Net weight: About 90kg
Effective area of ink color bar: 40 x 220mm (4 bars), 60 x 220mm (3 bars), 100 x 220mm (2 bars), optional.
Dimension of printing material: 290 x 250 mm
Outline dimension: 555x440x365mm
Ink uniforming speed: Three directly selectable rates on the control panel of the equipment, that is 400, 500 and 700rpm. Each rate can be set freely from 0 to 1,000rpm, with stepless frequency conversion speed regulation.
Printing speed: Three directly selectable rates on the control panel of the equipment, that is 10, 15 and 20rpm. Each rate can be set freely from 0 to 30rpm, with stepless frequency conversion speed regulation.
Ink uniforming duration: 1 to 800s, adjustable.
Advantages of Caibang NB229T automatic color mixing simulation machine:
Printing pressure: -1 to +1mm, automatically adjustable basing on paper thickness.
Ink uniforming pressure: Automatically adjustable basing on wear condition of printing roller and error arising from roller change.
Ink uniforming speed setting mode: Manual or automatic.
Ink uniforming manner: Multi-function intermittent chain movement middle positioning is added to reduce the left-right unevenness in color mixing simulation. Four sections of different manners of ink uniforming can be set, providing higher accuracy and convenience.
Color mixing simulation effect: 10mm secondary color mixing simulation (light color) is added, so that difference between two colors can be compared more accurately.
Standard printing roller: Two-use roller for common and UV printing.
Main technical parameters
Power: AC220V, 50Hz, 250W
Net weight: About 90kg
Effective area of ink color bar: 40 x 220mm (4 bars), 60 x 220mm (3 bars), 100 x 220mm (2 bars), optional.
Dimension of printing material: 290 x 250 mm
Outline dimension: 555x440x365mm
Ink uniforming speed: Three directly selectable rates on the control panel of the equipment, that is 400, 500 and 700rpm. Each rate can be set freely from 0 to 1,000rpm, with stepless frequency conversion speed regulation.
Printing speed: Three directly selectable rates on the control panel of the equipment, that is 10, 15 and 20rpm. Each rate can be set freely from 0 to 30rpm, with stepless frequency conversion speed regulation.
Ink uniforming duration: 1 to 800s, adjustable.
