aluminum Linear led strip,SMD5630 LED Bars
LED Aluminum bar,widely used in jewelry,star hotel,high-end clubs,museum,professional windows,counters and other key lighting place,it is an alternative replacement to traditional old halogen and other light.
superiority
1.High brightness, adopt high brightness SMD5630 as light sources
2.Well Radiates, PCB board and Out shell, all made with Aluminum materials, low heat and easy output
3.Low power and less light decay: energy saving can reach into 90% for you
4.Without any radiation, non-UV / Infrared, and heat radiation, environmental friendly
5.Outer covering with aluminum alloy, and surface anodizing,very unique design with high level
6.Install easy, the unique structural desing, easy installation, all person not professional do well
specifications of SMD LED Bar
features of aluminum led bar
1.Item No.: BG-1707-5630-60 led bar 5630
2.LED type: High brightness SMD5630
3.Color available: White, Warm white, Cold white
4.Color temperature: White : 6000~6500K, Warm white:2900~3200K, Cold white: >8000K
5.Viewing Angle: ≥120° Linear led strip
6.Product size: 1000*14*7mm
7.LED quantity: 60leds 5360 Led rigid Strip
8.Luminous Flux: 35~40lm/led, 2050-2300Lm per meter!
9.Voltage /Power: 12VDC , Max 30W/m
10.Waterproof : IP65 Linear led strip
11.Working temperature:- 35°C~+60°C
12.Storing temperature: -40°C~ +70°C

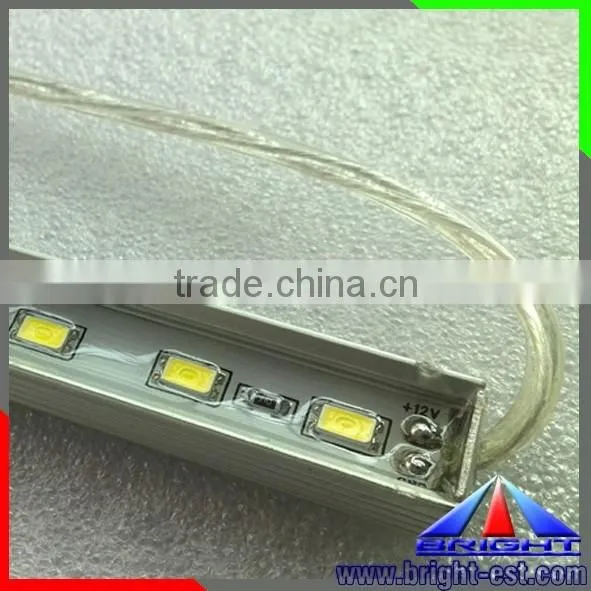

picture of 5630 led bar:
Application places
Certificate
Our company:
Matters needing attention:
1. Supply voltage of this product is 12v; never connect to other high voltage.
2. Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers.
