Touch Panel Color Temperature Controller,Intelligent Temperature Controller,Touch Panel LED Controller
Product Description
Summarization
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Technical Parameters
working temperature: -20-60 ℃
supply voltage: DC12~24V
output: 1 channel
connection mode: common anode

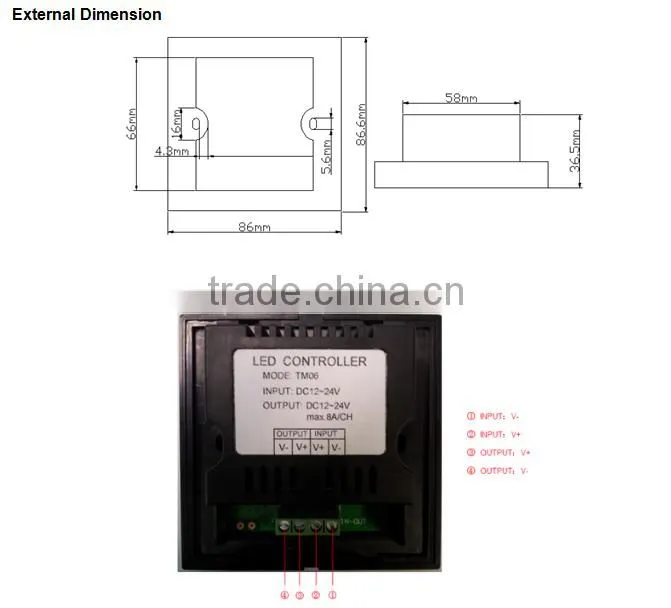

external dimension: L86 Χ W86 Χ H36 mm
packing size: L115 Χ W110 Χ H56 mm
net weight: 126g
gross weight: 185g
static power consumption: <1W
output current: <8A

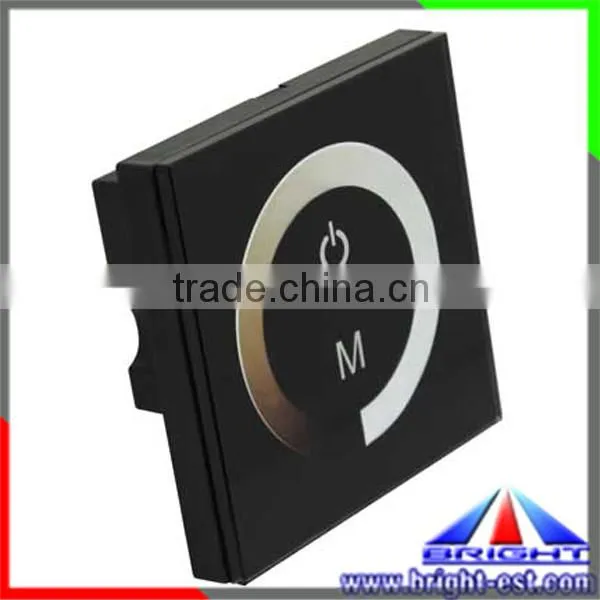

Product Pictures
Other Controllers Pictures
1.Packaging :Neutral Package or according to customers' request
2.Delivery Time: 5-7days
