Product Summarize
This RF 8 Keys RGB controller is mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.
Technical Parameters
1. Working temperature:-20-60℃
2.Input voltage:DC5V, 12V~24V optional
3.Output:3 circuit
4.Connection mode:Common anode
5.Controller size:L61×W35×H22mm
6.Remote control size:L61×W35×H22mm
7.Net weight:35g
8.Gross weight:40g
9.Static power consumption:<1W
10.Output current:<2A/ch
11.Output power: 5V<30W, 12V<72W, 24V<144W

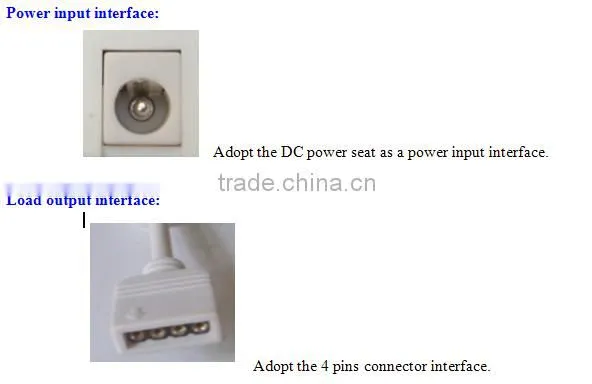

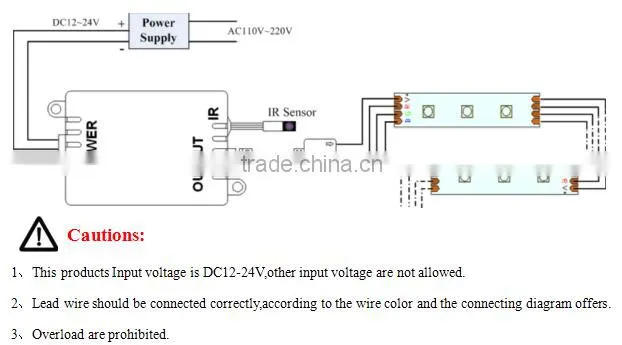

Connection description

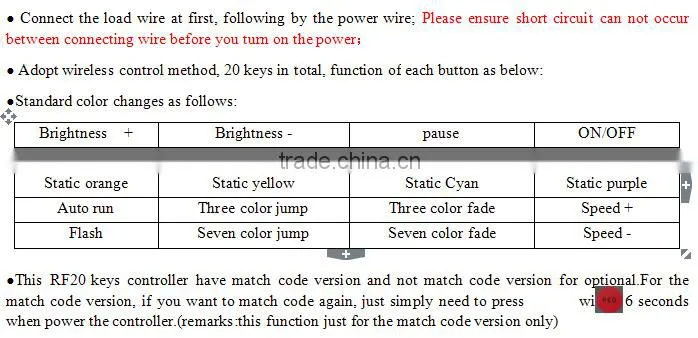

Direction for use
Typical Applications

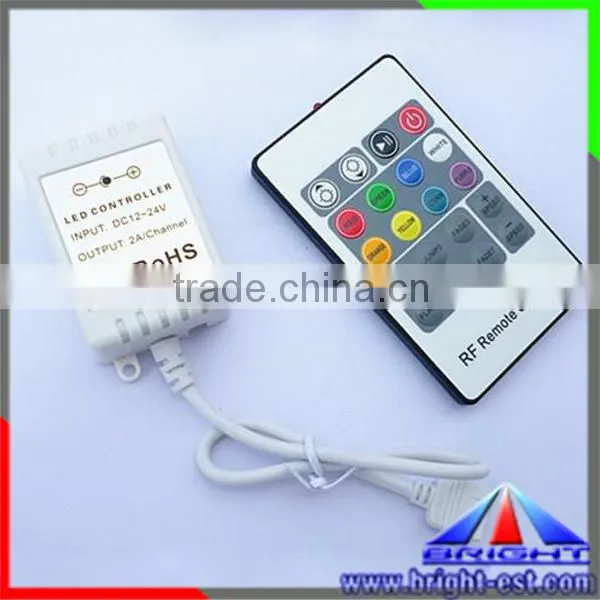

Product Pictures
