led panel controller, touch controller
Electrical Specification:
Working temperature |
-20-60℃ |
Working voltage |
DC12~24V |
Power consumption |
<3W |
Connect method |
Common anode |
WIFI brightness level |
100 |
WIFI speed level |
100 |
N.W. |
65g |
G.W. |
86g |
Case dimension |
L86*W86*H36 mm |
Box dimension |
L115*W110*H56 mm |
Output |
3 channels |
Output current |
≤4A(each channel) |
frequency |
RF |
Output gray scale |
256 |
Receiving sensitivity |
802.11b:DSSS(-5dBm) 802.11b:CCK(-10dBm) 802.11g:OFDM(-15dBm) |
||
Output power |
12V: ≤144W 24V: ≤288W |
||
Features:
1. Auto adaptation of 12-24V DC working voltage and with input polarity protection function
2. The newest touch control technology, delicate light performance, no flicker
3. High power dimmer control MOS tube with stable and reliable performance
4. 8-15 meters remote control distance
5. Multi-level, multi-color, multi-change flexible control effects
6. Multi-type memory functions for color, modes, speed, and brightness
7. Smart appearance, standard input and output port, easy installation and high cost performance.

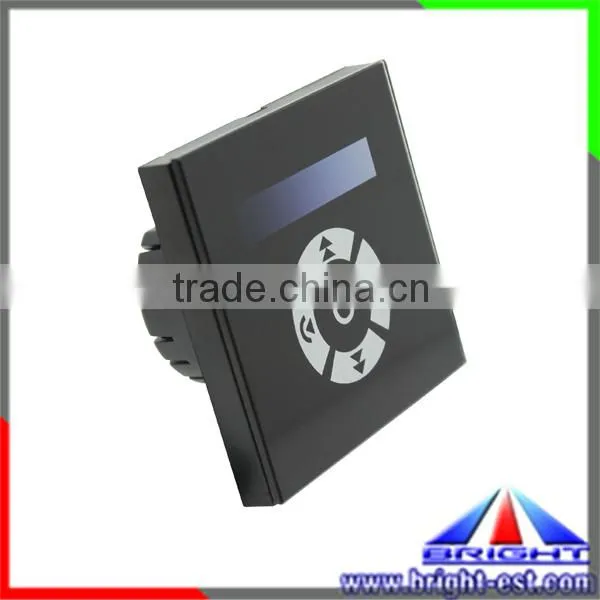

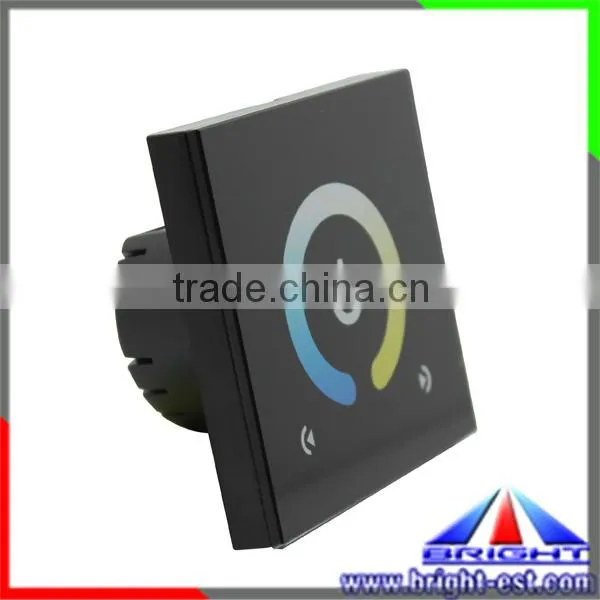

Pictures:
Express Delivery:
Payment Terms:
1.T/T (in advance)
2.Paypal
3.Western Union
1.Your inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information
Why choose us
Advanced machinery, well trained workers.
5 years experience in LED lighting industry.
Unique designed, good quality, competitive price.
Full range of indoor and outdoor LED lighting solution.
Zero improper after-sales service if any quality issue happened
If there any questions, pls don't hesitate to contact me!!!
