Product Description

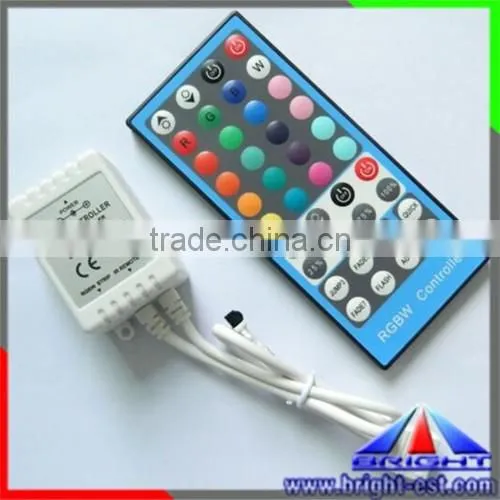

40-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices, customize any color and various dynamic changes in lighting effects through infrared remote control.
Specifications
Working temperature:-20-60
Input voltage:DC5V,DC 12-24V
Connection mode:Common anode
Output current:<2A
Static power consumption:<1W
Controller size:L61xW35x H22 mm
Packing size:L136*W48*H59 mm
Net weight:80g
Gross weight:90g
Output current:5V<40W,12V<96W, 24V<192W
Key Functions
The key-press functions are shown in the table as below (in accordance with the key position order):
Brightness rise |
Brightness fall |
OFF |
ON |
Static red |
Static green |
Static blue |
Static white |
Static orange |
Static light green |
Static dark blue |
Static milk white |
Static dark yellow |
Static cyan |
Static lyons blue |
Static white pink |
Static yellow |
Static light blue |
Static purple |
Static green-white |
Static light yellow |
Static sky blue |
Static brown |
Static blue white |
Brightness rise |
Brightness fall |
OFF |
ON |
25% |
50% |
75% |
100% |
JUMP3 |
FADE3 |
JUMP7 |
QULCK |
FADE7 |
FLASH |
AUTO |
SLOW |
Supplement:This RGBW Controller is divided into RGB and W two parts, it can be Turn on/OFF RGB Part and W part independently , and can controlled their brightness and their color independently.such as,when turn on RGB part, it can change RGB part's color and brightness;and can turn on W parts at the same time ,and can turn on/OFF W part or adjust its brightness .when at 3/7 color Fade model,can adjust their changing speed;when at 3/7 Color Jump mode,can adjust their brightness and adjust changing speed.
Typical Application
Cautions
1. Supply voltage of this product is DC5V~24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. Overload are prohibited
