Optical 3D Scanner for Reverse Engineering and CNC Router

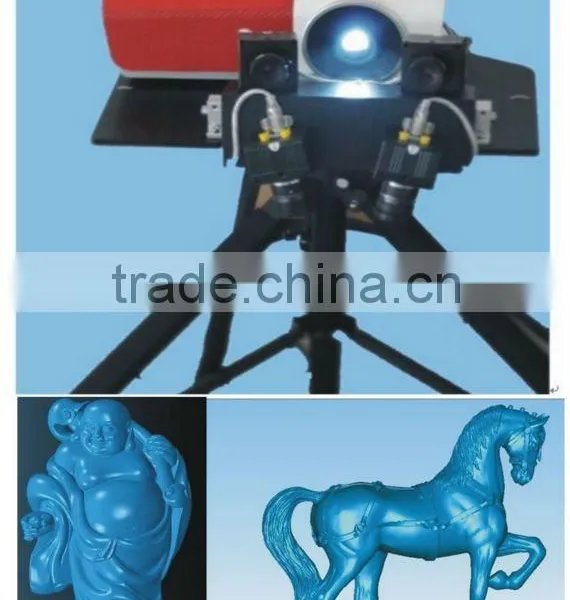

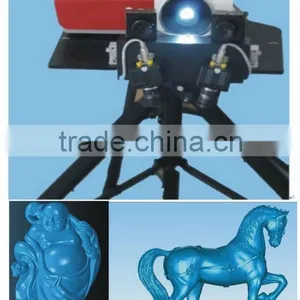

Reverse Engineering Optical 3D Scanner for Industry
1. Compact and lightweight, weighing less than 1.5kg, can be easily hand-held use.
2. Single scan time of less than 0.15 seconds, two-striped light cast scanning camera scanning.
3. High-precision, high density, high-speed, full-color scan to ensure high-quality scan data.
4. White light-based scanning, on human healthy and eyes safety absolutely.
5. Internal storage low tension, 12V battery, no need high-voltage power supply, without high-voltage power cables,
and operation of scanning the human body is absolute safe, continuous power supply time is not less than 8 hours.
6. Use calibration accuracy without on-site, opening the box you can start to use it.
Optical path adopt solidification structure of rigid, avoid movement, scanner structure instability or vulnerability.
7. Using high-brightness white LED cold light source, light source life of 100hours.
8. Matched data processing software with autonomous property, the user needs can be targeted for development, increase the special function module.
Scope of application:
1. Reverse engineering, industrial inspection:
Detection and measurement of industrial products, products and reverse engineering of the mold (automotive, aerospace, appliance industry), the shape deformation detection components, industrial line detection, industrial product modeling in the reverse three-dimensional reconstruction of the industrial research laboratory detection tools, dies Design and testing areas.
2. Other applications: dealing with human digital, digital museum, three-dimensional animation,
virtual reality modeling and other fields
Main technology parameter:
|
ET-400 model |
|
Single shooting range(mm) |
400*320 |
|
Shooting distance(mm) |
1000 |
|
Depth (mm) |
-120~+120 |
|
Measurement accuracy (mm) |
±0.015mm |
|
Image-resolution |
1280 * 1024 |
|
Texture colors (bit) |
24 or 8 |
|
Shutter (sec) |
0.4 |
|
Power Source |
220V 100VA/DC12-18V |
|
Function:
1, 3 D three-dimensional optical scanner can scan three-dimensional data of the object surface quickly , can scan free-form object, can scan the surface with a hole, groove and breaking; Adopts mixed-phase technology,
scan one side every time, speed is very fast.
2, providing marking point automatic splice function, scan lock destination time after time, after scan finished, mach the cloud data automatically, and delete the overlap automatically. Can also obtaine marking point frame above all, and then start scanning from any angle, easy to operate.
3, the unique global error correction module, ensure that there are no hierarchical scan data; can scan large objects, the use of global error correction, can eliminate the accumulated error, this technology was created by company originally.
4, with three-dimensional graphics editing features, you can rotate, translating, zoom point cloud data arbitrarily,
and edit and adjust point cloud.
5, can generate a variety of data formats for other software, including sfl. ply, asc, etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form, Image Ware and then carry on post-processing.
Related services:
1 3 D three-dimensional optical scanner, 1 year warranty, lifetime maintenance, provide technical support.
2 can provide the module for easy integration into the relevant system.

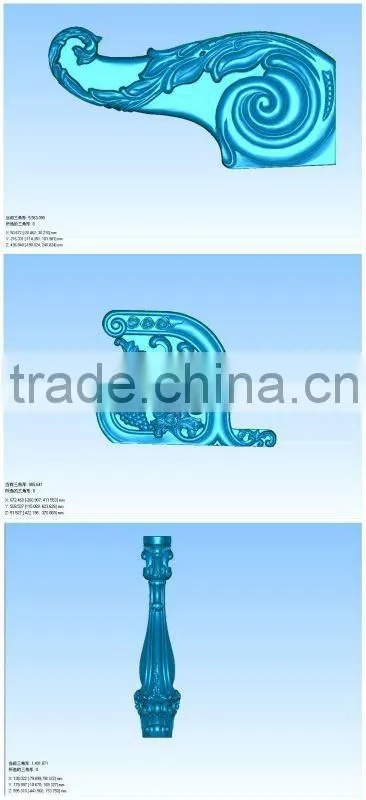

Samples:
