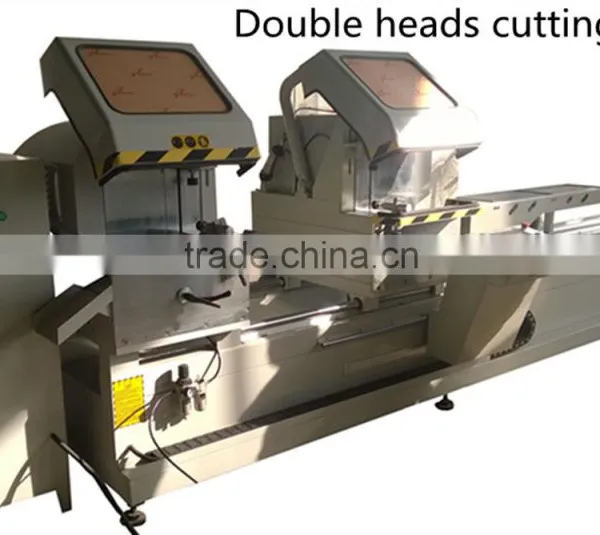

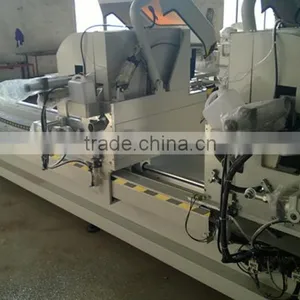

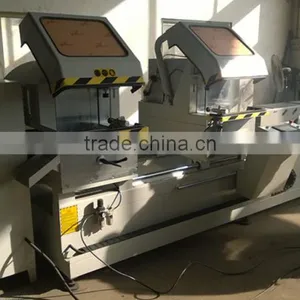

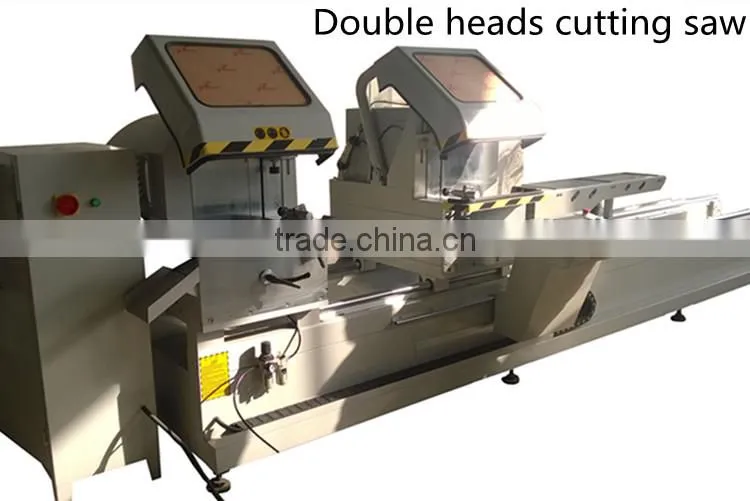

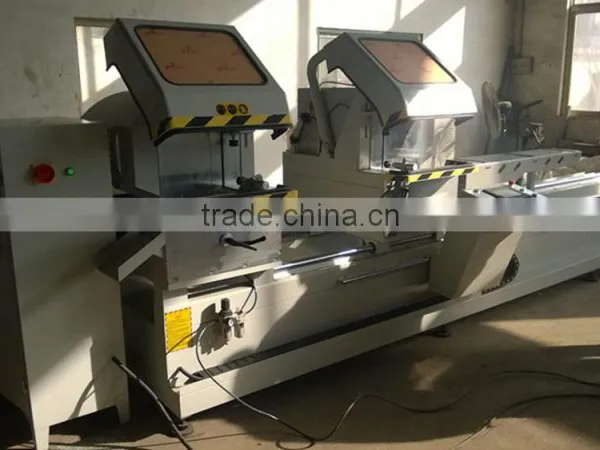

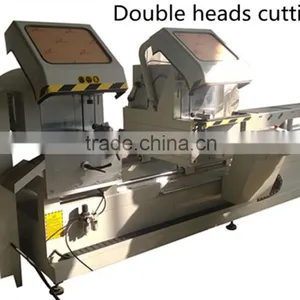

Double heads cnc cutting saw for aluminum profile with air filter ,air gun,and Automatic lubeication
1. Motor rotary speed 2800r/min Double heads cnc cutting saw
2. Cutting angle 90-67.5-45 degree Double heads cnc cutting saw
3. Cutting length 435-4200mm Double heads cnc cutting saw
4. Cutting width and height 135*300-90, 135*200-45 Double heads cnc cutting saw
-Used for cutting aluminum for doors and windows, curtain wall etc.

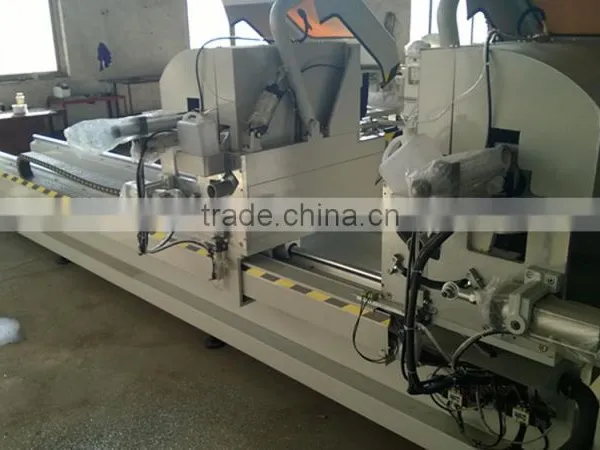

-The feeding system adopts the imported linear guide pair, with high accuracy and stability.
-Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
-Two saw heads are adjustable and cut the profiles in45°, 90°freely.
-Imported carbide saw blade features accurate processing and high endurance.
-Imported linear guiding pair ensures steady processing accuracy.
-Saw blade rotates smoothly due to high accurate main spindle.
-Uniform speed feeding and smooth motion are due to air hydraulic damping cylinder.

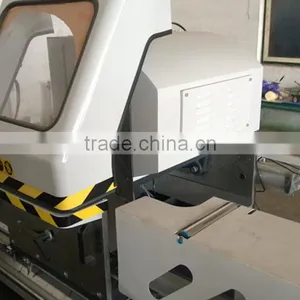

-Auto-opening shield makes the operation more safety.
-Middle auto-induction profile supporter and following profile sup porter made the loading and clamping convenient.
Power 5.6KW
voltage AC 380V,50-60HZ
Air pressure 0.5-0.8Mpa
Motor rotary speed 2800r/min
Saw blade specification 500*300
Cutting angle 90-67.5-45 degree
Cutting length 435-4200mm
Cutting angle tolerance ±5
Cutting width and height 135*300-90, 135*200-45
Other machines
Jinan Penn CNC Machine Co.,Ltd. is specialized in manufacturing CNC Router,Laser engraving and cutting machine,CNC Plasma cutting machine,CNC machining centre,CNC milling machine,CNC lathe,and Laser Marking machines.
Up to now, our machines have exported to many countries and areas, customers always give highly speak of the quality and great after-sale service of PC series machines. Our customers find our machines to be a reliable and indispensable addition to their company.
