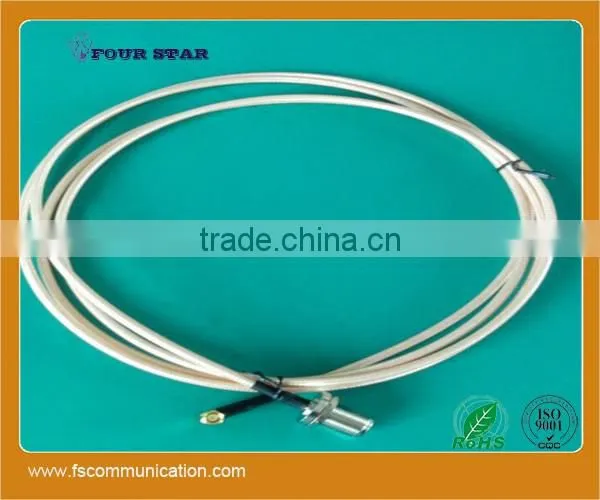

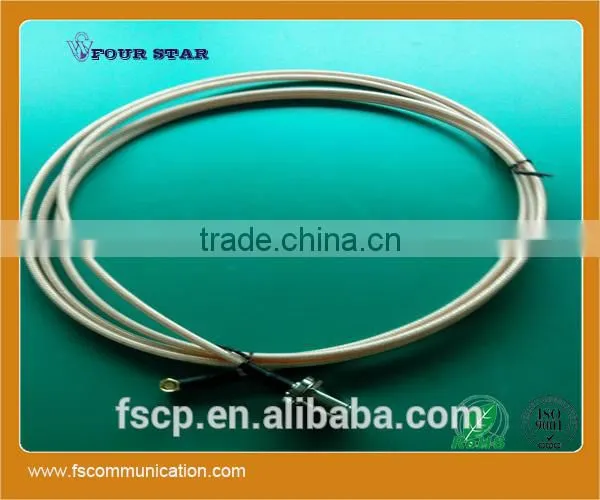

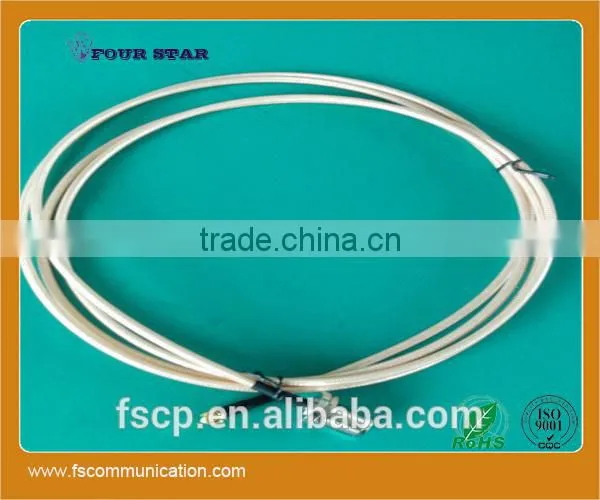

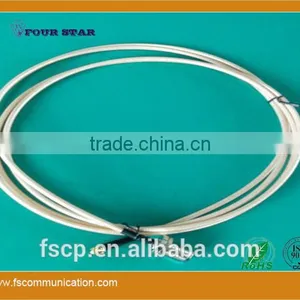

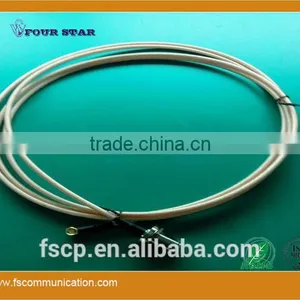

RG142 Cable Assembly With SMA Male Right Angle Crimp to N Female Bulkhead Crimp Connectors

Name: RG142 Cable Assembly With SMA Male Right Angle Crimp to N Female Bulkhead Crimp Connectors
Brand: Four Star
SKU: 110652601

US$ 6.36 - 6.82 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

SMA-C-JW142/N-C-KY142-2000

Four Star Communication Parts Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Four Star

Model Number SMA-C-JW142/N-C-KY142-2000

Type Coaxial

Number of Conductors 1

Product Description

2000mm RG142 Cable Assembly with SMA Male Right Angle Crimp to N Female Bulkhead Crimp Connectors
Model No.	SMA-C-JW142/N-C-KY142-2000
Connector Type	A Side: SMA Connector Male Right Angle Crimp for RG142 Cable
	B Side: N Connector Female Bulkhead Crimp for RG142 Cable
Cable Type(Name)	RG142 Cable
Cable Length	2000mm (Customized Length Available)
Connector Interface	IEC 60169-15;IEC 60169-16
Typical Frequency Range	DC-8GHz
VSWR	≤1.30@DC-6GHz
Intermodulation 3rd (PIM3)	—
Durability	≥500 cycles
Parts Name	Material	Plating
Body	Brass	Ni/Au
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni/Au
Gasket	Silicone Rubber	—
Washer	Brass	Ni
Ferrule	Brass	Ni
Operating Temperature	_45 ℃-85 ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
