Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > LOGO Insertion up to 8 Streams(720p) Hdmi Iptv Encoder

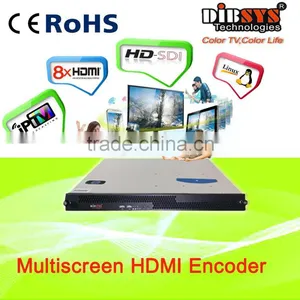

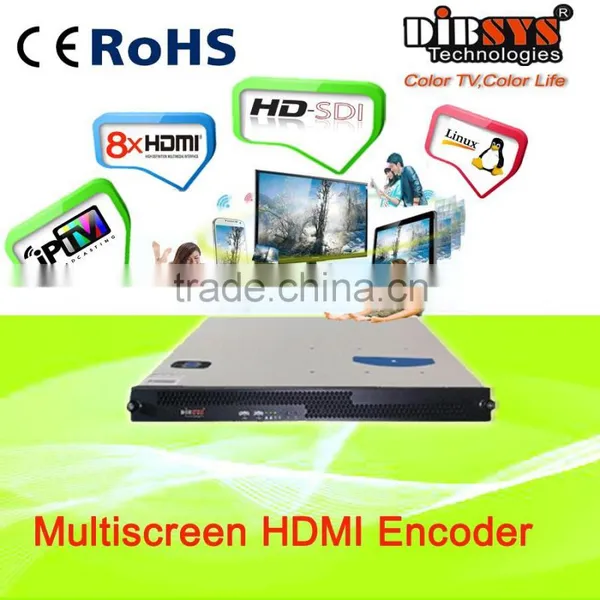

LOGO Insertion up to 8 Streams(720p) Hdmi Iptv Encoder

Name: LOGO Insertion up to 8 Streams(720p) Hdmi Iptv Encoder
Brand: DIBSYS
SKU: 110662275

US$ 1,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

Caster-T310H

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number Caster-T310H

Superior video quality multiscreen HD Encoder

Overview

Caster-T310H high-performance High definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner.a real-time multi-channel,codec,format IP-based encoder for multi- screen delivery(TV, Mobile, and Web). With the support for various encapsulation formats base on embedded Linux operating system appliances. It relies on an Intel 4 or more Core CPU as an accelerator.

Key Features ü Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

ü Up to 8x HDMI per chassis in 1RU

ü Multiple output streams per input service to support Broadcast,VOD,IPTV and OTT,mobile/ web,Set top box applications

ü HD MPEG2/H.264 to any resolution encoding

ü Mulltiple Codec,Protocol,Bitrate,Resolution, Profile per channel

ü GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP

ü M3u8 playlist files

ü Up to 8 streams(720p) concurrent out

ü Audio support: AAC,MPEG,MP3 or Dolby Digital AC-3

ü High quality pre-processing including filtering,Deinterlacing,cross scaling,image insertion

ü Based on embedded unbuntu Linux

ü Superior video quality at ultra-low bitrates, generally video advised SD about 500- 800kbps , 720p about 800-1500kbps

ü Selectable any resolution from QSIF to 720p

ü Easy-to-Use System Management

ü Web Management

Technical specifications

INPUTS
Baseband input	8 channels HDMI v1.3a
OUTPUTS
IP Output type	Two Gig Ethernet Ports
ASI output type	Mutliplexed (optional)
Streaming format	Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP; MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3 TS Over UDP/RTP/HTTP 3GP Over RTP FLV Over HTTP/RTMP HTTP Live streaming Apple HLS (m3u8)
Multi-stream per one source	Two streams
	Three streams
File Output
Encoding	3GPP/3GPP2/WMV/FLV/TS
	File output support timing and capacitive record
Pre-processing
Image setting	Video adjustments(Brightness, contrast, Saturation, Hue)
Frame rate	from 2fps to 30fps
Aspect ratio	4:3 and 16:9, WSS control
Image insertion	LOGO insertion
Subtitle Overlay	Static or roll subtitle,up to 3 way (optional)
PID Configuration	Depending on the configuration, it forwards selected programs via IP datacasting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.
Video encoding
Bitrate mode	VBR,CBR
Resolutions	80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240 352x288 • 400x300 • 480x360 • 720x576 • 854x480(16:9) 1280x720p
Max channels per RU	Singal Input	H.264 Out	Channels	Notes
	8xHDMI	720p in 2Mbps	Up to 8 streams
	Up to multiple concurrent outputs per one stream input
Video codec	H.263 Profile0, Levels 10,20,30 MPEG-4 SP, Levels 0,0b, 1,2,3 H.264 Baseline Levels 1,1b,2,3; H.264 Main Profile/High Profile 3.0- 5.1 MPEG-2 MP@ML 4:2:0
GOP Size	I-Frame Time Interval; B-Frame Number; Reference Frame
