Help CenterAir Cooled Aluminum Heater
Related Products
Specifications
aluminum heater with cooing effects1. cast in aluminum
2. Cr20Ni80 wire,SS304
3. ISO9001, CE, RoHS
4. connect to air fan
Description

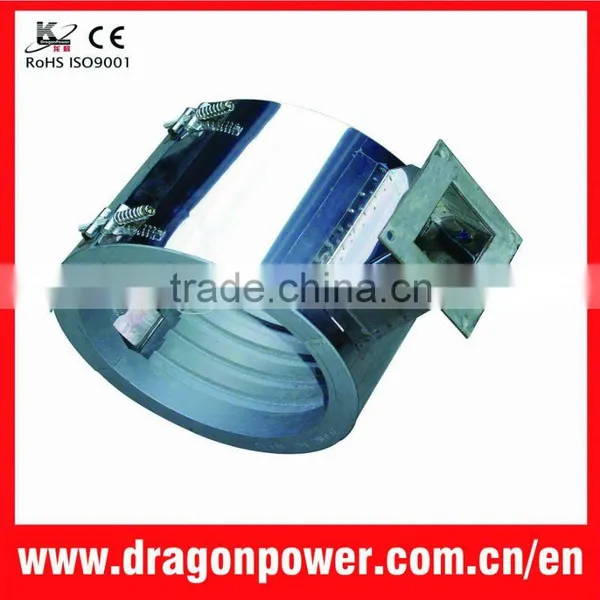

This air cooled aluminum heater is mianly used for complete extrusion parts. It consists of several heaters connected with temperature reducing systems. Depending on specific application requirements, the number and layout of this item can be combined into one system. As the extrusion cylinder is completely covered, it has a uniform temperature flow. Also due to the enlarged surface of heating radiation, the efficiency is improved.It can remove friction heat from extrusion. It consists of several band heaters connected with ceramic fins for heat dispersion. Then the set is covered by an individual mounted cooling jacket with a fan connection box and air outlet device fixed. In addition, the band heater can be removed and replaced. The maximum temperature the heater can stand is 500 °C. Currently, this heater is the most advanced cooling & heating device for extrusion machine and cylinder of injection plastic machine. This type of heater is recommended to customers who demand heaters with highest quality-price ratio.
Table
Model |
Extr Model |
Zone # |
Dimension (mm) |
Voltage(V) |
Power(W) |
LK-FQTC-Φ250X255 |
Twin-screw 58 |
1 |
Φ250X255 |
3X400 |
8000 |
LK-FQTC-Φ200X175 |
3 |
Φ200X175 |
230 |
2400 |
|
LK-FQTC-Φ152/Φ140X310 |
4 |
Φ152/Φ140X310 |
230 |
3600 |
|
LK-FQTC-Φ305X295 |
Twin-screw 68 |
1 |
Φ305X295 |
3X400 |
1000 |
LK-FQTC-Φ245X215 |
3 |
Φ245X215 |
230 |
3540 |
|
LK-FQTC-Φ165/Φ185X365 |
4 |
Φ165/Φ185X365 |
230 |
4600 |
|
LK-FQTC-Φ217X190 |
Twin-screw 45 |
1 |
Φ217X190 |
230 |
4000 |
LK-FQTC-Φ123X220 |
3 |
Φ123X220 |
230 |
2600 |
|
LK-FQTC-Φ375X345 |
Twin-screw 80 |
1 |
Φ375X345 |
3X400 |
16000 |
LK-FQTC-Φ215/Φ195X430 |
4 |
Φ215/Φ195X430 |
230 |
5930 |
|
LK-FQTC-Φ350X360 |
Twin-screw 92 |
1 |
Φ350X360 |
3X400 |
18000 |
LK-FQTC-Φ250X290 |
5 |
Φ250X290 |
3X400 |
4200 |
|
LK-FQTC-Φ250/Φ210X510 |
6 |
Φ250/Φ210X510 |
3X400 |
8600 |
|
LK-FQTC-Φ75X162 |
Single-screw 25 |
Φ75X162 |
230 |
1400 |
|
LK-FQTC-Φ90X220 |
Single-screw 30 |
Φ90X220 |
230 |
1500 |
|
LK-FQTC-Φ130X280 |
Single-screw 45 |
Φ130X280 |
230 |
2200 |
|
LK-FQTC-Φ140X325 |
Single-screw 60 |
Φ140X325 |
230 |
4000 |
|
LK-FQTC-Φ150X420 |
Single-screw 75 |
Φ150X420 |
400 |
5000 |
|
LK-FQTC-Φ175X460 |
Single-screw 90 |
Φ175X460 |
400 |
7000 |
|
LK-FQTC-Φ200X550 |
Single-screw 120 |
Φ200X550 |
400 |
12000 |
|
Order Guide
Please specify the following when ordering:
- The accurate inner diameter (mm) of heaters (specify the tolerance zone if applicable)
- Voltage and power densityThe position and size of the hole for connecting thermocouple OR of the incision.
- Wiring type and position
- Whether need air blowers
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/picturesc
