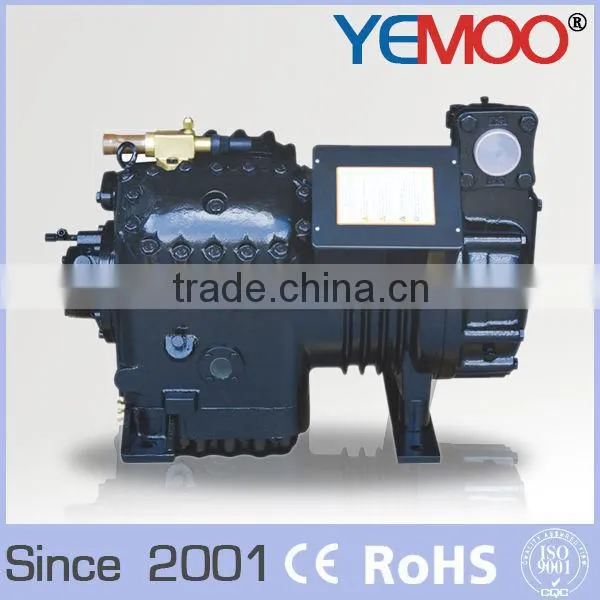

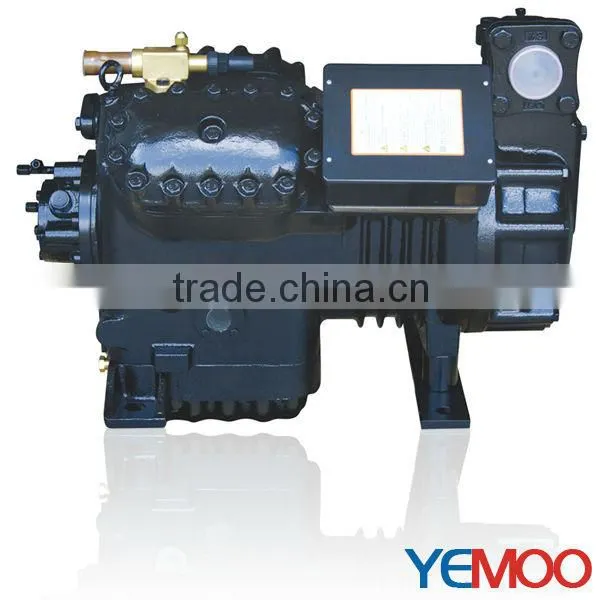

YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage

YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage thumbnail-1
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage thumbnail-2
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage thumbnail-3
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage thumbnail-4
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage thumbnail-5
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage photo-1
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage photo-2
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage photo-3
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage photo-4
YEMOO 30hp High Capacity Copeland Compressor Used Refrigeration for Freezer Room / Cold Storage photo-5
US$ 400 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Yemoo
Model Number:
YMC4-301(high capacity refrigeration compressor)
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Yemoo
Model Number YMC4-301(high capacity refrigeration compressor)
Type Other, Refrigeration Compressor, high capacity refrigeration compressor
Application Refrigeration Parts
Certification CE



Product Description

1. Features:



1) Introduction

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the high capacity refrigeration compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

   The high capacity refrigeration compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

   The high capacity refrigeration compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

  The high capacity refrigeration compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.



Technical Data
Refrigerant Gas   R22 Refrigerating Capacity Q0 (W)
Model Condensing Temperature  oC Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMC4-150 30           52300 42700 34450 27350 21300 16400 12000 8310
40           46850 38100 30500 24050 18500 13840 9800 6440
50           41700 33700 26800 20900 15800 11500 7920 4970
YMC4-251 30 99300 91200 83600 76500 63700 52600 42950 34650 27500 21400 16260
40 89700 82300 75400 68900 57300 47150 38350 30800 24250 18670 13940
50 80500 73800 67600 61700 51100 41950 33950 27050 21100 16030
YMC4-200 30           60000 48950 39500 31400 24500 18940 13920 9670
40           53700 43700 35100 27750 21500 16080 11430 7530
50           47800 38750 30950 24200 18350 13390 9230 5790
YMC4-301 30 114200 104800 96000 87800 73100 60400 49300 39800 31650 24700 18840
40 103000 94500 86500 79100 65700 54000 44000 35350 27950 21650 16330
50 92300 84600 77400 70700 58600 48100 39000 31200 24500 18810





Refrigerant Gas R404A/R507A Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMC4-150 30       58500 48400 39700 32200 25750 20250 15560 11630 8350
40       49850 41150 33600 27100 21500 16730 12660 9240 6380
50         33950 27600 22050 17330 13270 9820 6920
YMC4-251 30 90700 83200 69700 59700 47750 38950 31350 24800 19210 14460 10460
40 77400 71000 59500 49400 40650 33000 26450 20800 15930 11800 8320
50 64500 59100 49500 41000 33600 27200 21600 16830 12740 9260 6340
YMC4-200 30       67100 55500 45400 36750 29350 23000 17600 13060 9260
40       57200 47300 38700 31200 24800 19250 14540 10540 7160
50         38750 31650 25450 20100 15480 11510 8120
YMC4-301 30 103800 95300 79900 66500 54900 44900 36250 28800 22450 17040 12480
40 89100 81800 68600 57000 47000 38250 30700 24200 18610 13860 9850
50 74300 68200 57100 47400 38900 31500 25100 19580 14840 10810 7410



YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage











 YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage



Detailed Images

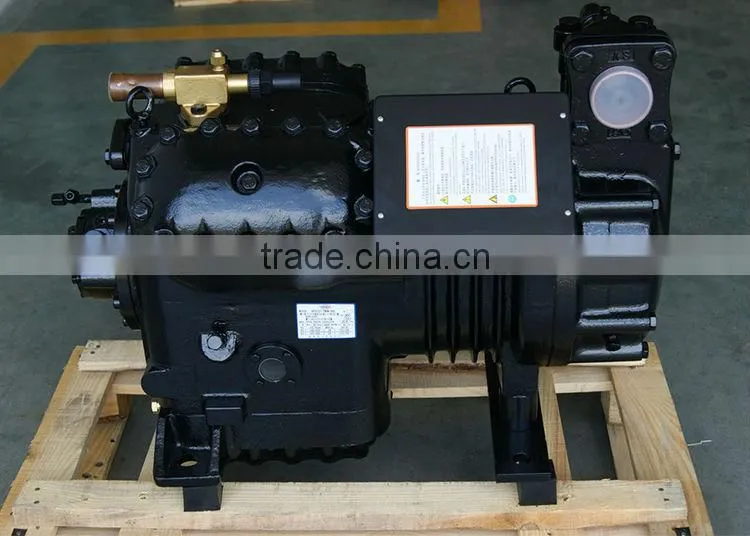

YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage

YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage

 YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage





Packaging & Shipping







Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Our workflow



YEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storageYEMOO 30hp high capacity Copeland compressor used refrigeration for freezer room / cold storage
