Home > Lights & Lighting > LED Interior Lighting > LED Tube > 10W T8 LED Tube

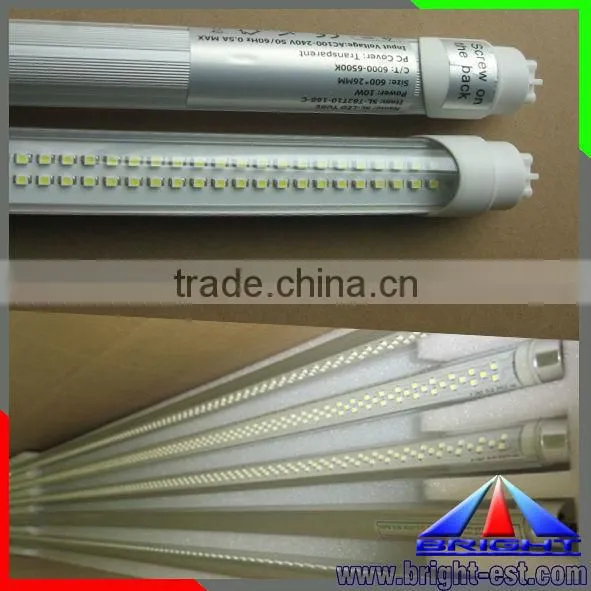

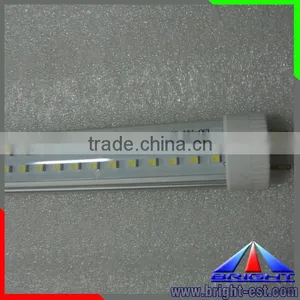

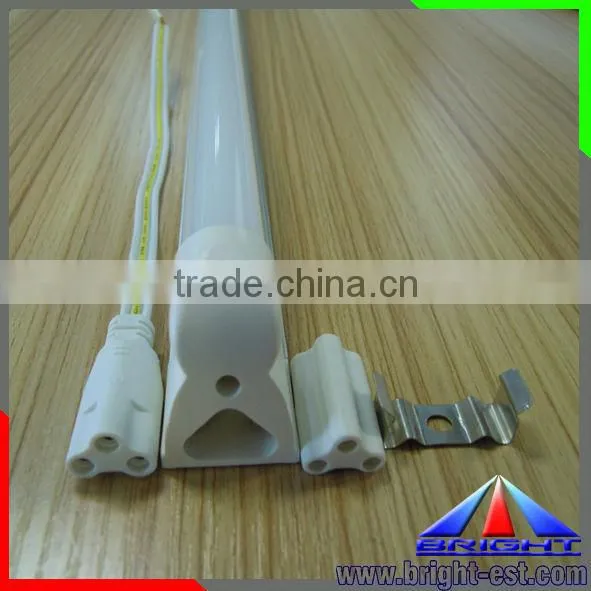

10W T8 LED Tube

Name: 10W T8 LED Tube
Brand: BRIGHT
SKU: 110698065

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD3528

Warranty(Years):

Input Voltage(V):

AC100-240V

Contact Supplier Request Quote Chat Now

Shenzhen Bright Technology Industrial Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENGZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3528

Warranty(Years) 2

Input Voltage(V) AC100-240V

Lamp Power(W) 10

Lamp Luminous Flux(lm) 900

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, 45

Working Lifetime(Hour) 50000

Lamp Body Material Glass

IP Rating IP44

Certification CE

Place of Origin Guangdong, China

Brand Name BRIGHT

Model Number Other, T8, BG-409-T8-10W, T8

Specifications

10W T8 LED TUBE
1.AC 85-265
2.CE and RoHS approv
3.Long Life Span--30,000hrs
4.High brightness smd3528

10W T8 LED TUBE

Description

LED Fluorescent Tube has a delicate shape, replacement of common fluorescent tube, it’s doesn’t needs to change circuit; adopt aluminum alloy as base, the shine side uses PC tube(transparent PC, ivory white frosted PC and strip PC available), The above picture is aluminum + transparent PC, diameter is φ 26mm .

T8 Light Parameters

Item NO

Wattage (W)

LED

(pcs)

Dimension

(mm)

Luminous

Flux

(LM)

Luminous Intensity

(LUX)

Weight(kg)

Lamp cap

Packing

(mm)

YH-SMDT8-10W

10W

182

φ26x906

1040

177

0.24

G13

1031*23*23

Light Source	Input Voltage	Color Rendering Index	Efficacy	Work Frequency	Constant Circuit Error	Static Power Consumption
Super Brightness LED	AC85-300V	>75%	>85%	25KHZ	<2%	,0.5W
Work Temperature	Storage Temperature	Open Protection	Short Circuit Protection	Microwave/ Noise	Power Factor	Lifespan
-20 -85°C	0°C -65°C	OK	OK	<240mV	>90%	50000H

Installment Instruction(T8 holder,electronic holder,inductance holder,Japanese Ballast type Holder)

1,inductance holder installment

To unsling starter from the light before installment, fit on led Fluorescent Tube and then it lighting, the ballast could retain

2,electronic holder installment
You need to separate electric lamp holder, and remove off the inside circuit. Keep Corridor by wire, That will be OK in according with LED fluorescent installation using principle.
3,Ballast type holder installmen
You need remove off the ballast and keep the path by wire. That will be OK in according with LED fluorescent installation using principle.

Luminous Intensity Graph

illumination(LUX) distance(CM)	below	deviated 1M	deviated 2M
50CM	950	50	11
100CM	310	89	20
150CM	177	66	20
200CM	109	51	23
300CM	65	38	20
Remarks: The above figures are measured based on single transparent lamp pipe 90-degree angle,for reference only.

Recommend Application Places

Uses widely in production line, station, office, family lighting, school, hospital, underground parking lot, warehouse, supermarket, advertisement lighting etc.

After Sales Service

Our LED Fluorescent Tube has three years guarantee time,Artificial damage or disconnected are out of the guarantee scope.
