AC 220V 3KW 3000W Spiral Tubular Water Heaters Heating Element Tube Heater Size 10.5cm x 5cm (L*Max W)
AC 220V 3KW 3000W Spiral Tubular Water Heaters Heating Element Tube Heater Size 10.5cm x 5cm (L*Max W) Description:
1) Spring heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.
2) Spring heater is also known as high performance tubular heaters or cable heaters. 3) Spring heater can be produced with or without built in thermocouples.
4) Spring heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields
AC 220V 3KW 3000W Spiral Tubular Water Heaters Heating Element Tube Heater Size 10.5cm x 5cm (L*Max W) Technical Parameter:
1) Customized voltage and power
2) Various sizes of cross section, including 1.8, 2*4, 2.2*4.2, 3.0, 3*3, 3.5*3.5, 4*6 and other specifications.
3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.
| Model | Dimension(MM) | Voltage(V) | Power(W) | Key technical indexes |
| LKTH-Φ45x50 | Φ45x50 | 220 | 1000 |
1.Use condition: environment temperature -20~+60°C, 2.Leakage current <0.5MA 3.Insulation resistance ≥5M 4.Ground resistance <0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 100-1200°C |
| LKTH-Φ22X160 | Φ22X160 | 230 | 1200 | |
| LKTH-Φ40X40 | Φ40X40 | 220 | 400 | |
| LKTH-Φ30X50 | Φ30X50 | 220 | 400 | |
| Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||

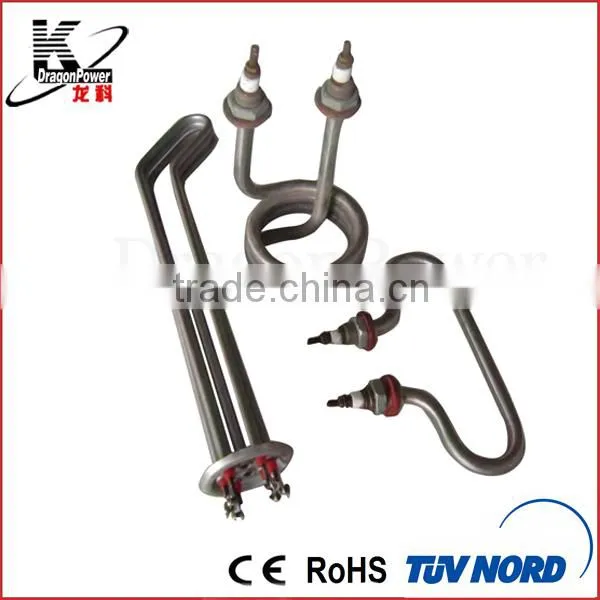

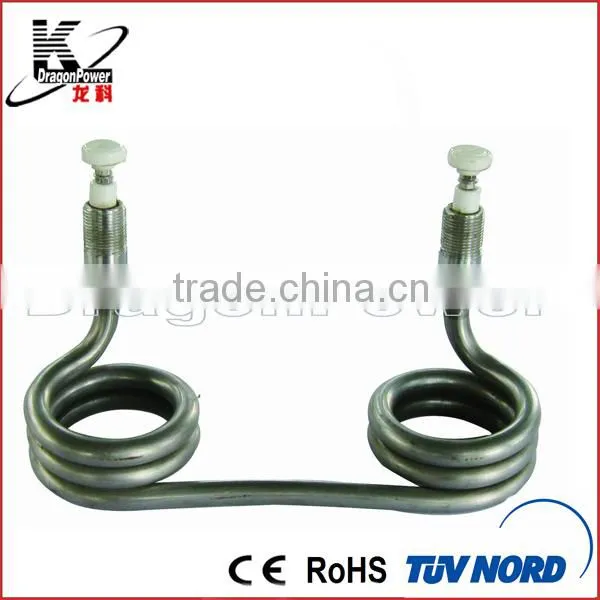

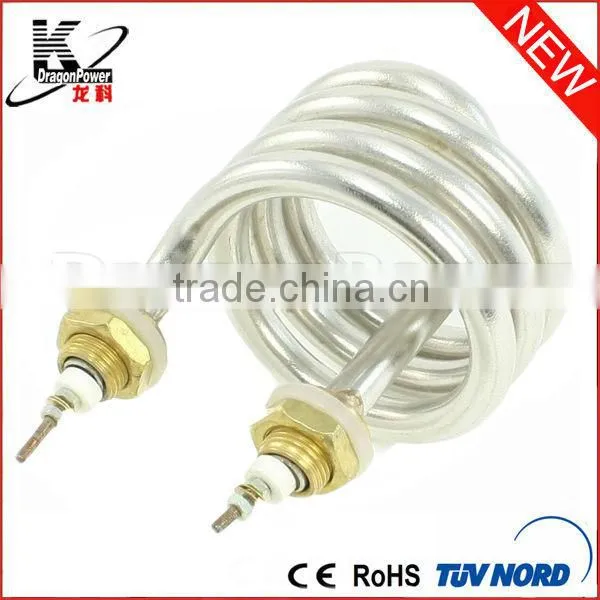

AC 220V 3KW 3000W Spiral Tubular Water Heaters Heating Element Tube Heater Size 10.5cm x 5cm (L*Max W) Images:
Order Guide
Please specify the following when ordering:
1. Diameter(mm) and length (mm) of heaters
2. Type of leads and length(mm)
3. Voltage and power density
4. Content of the stamping if needed
5. Order quantity
6. Delivery date
**Better to provide drawings/pictures.
