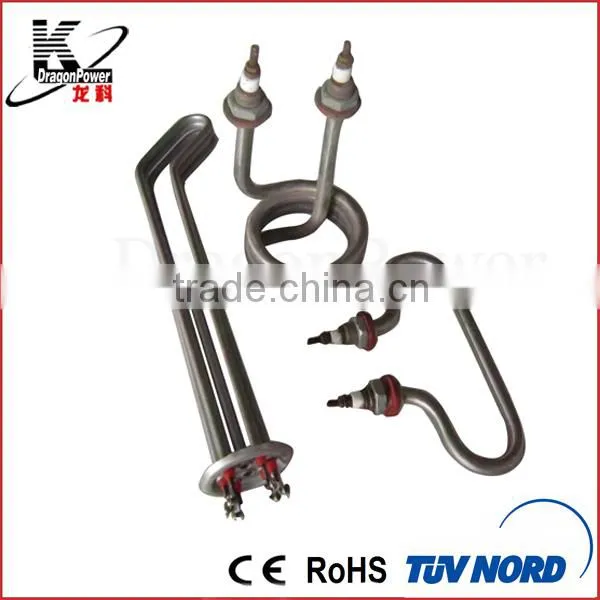

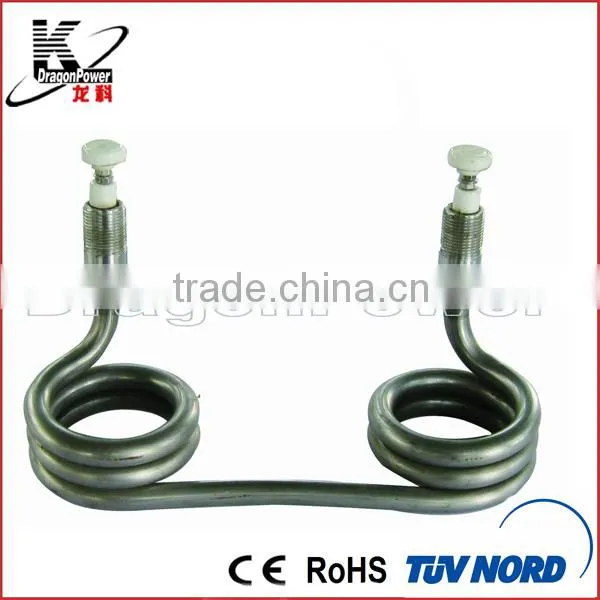

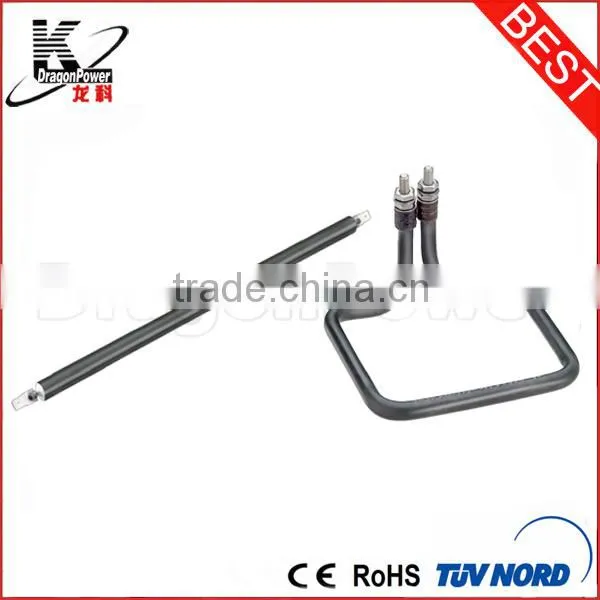

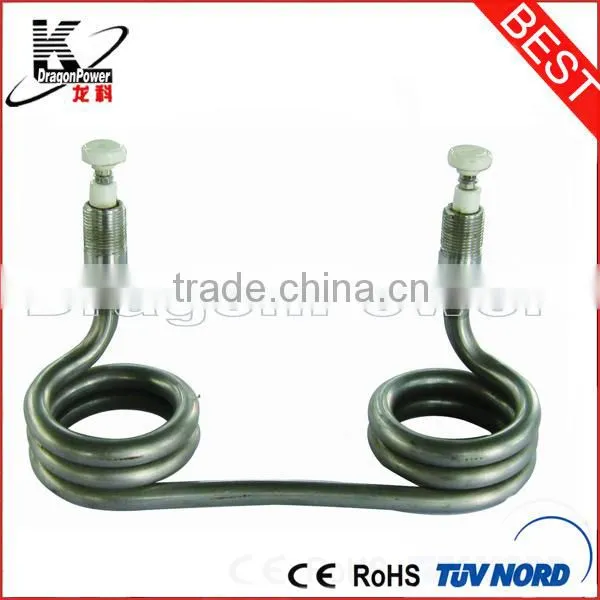

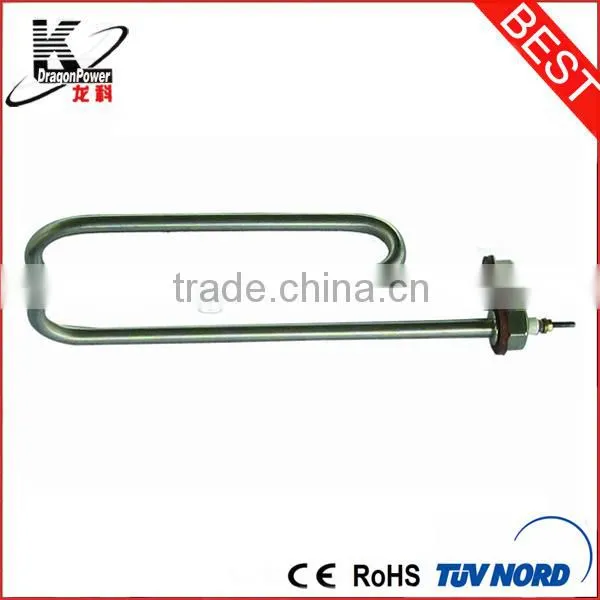

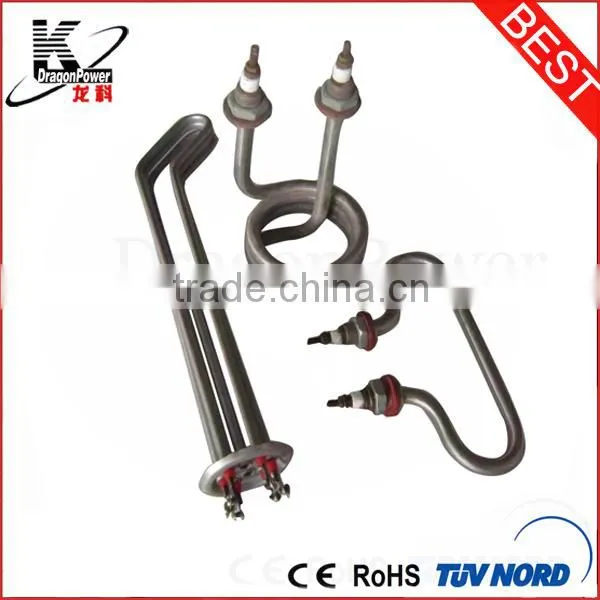

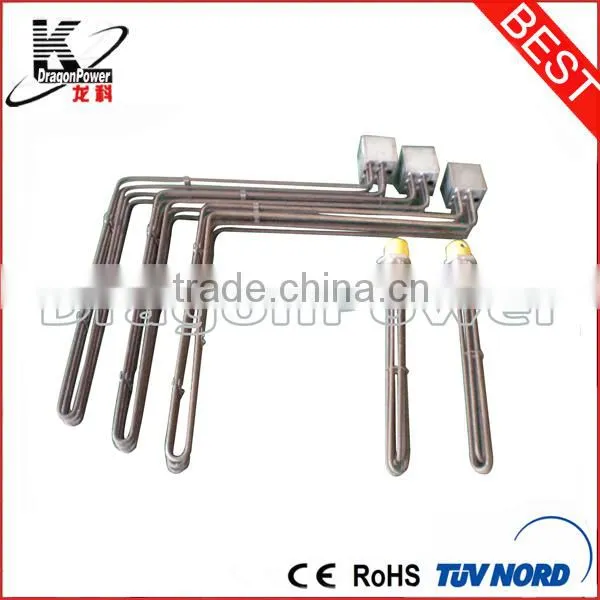

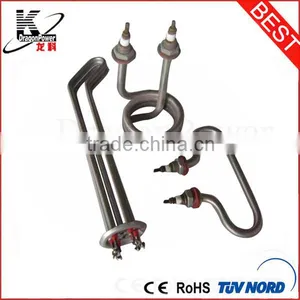

Help CenterMade to Order Manufacturer Immersion Electric Heating Tubes
Related Products
Specifications
1.Certificate: CE, ROHS,ISO, CSA
3. High Thermal Efficiency
4. Balanced Heating
5. Long lifetime
6. Sample structure
7. Reliable and safe operation
Material :
Resistance wire:
The standard nickel chromium wire is computer calculated for gauge, length and spacing, wound on a supporting core and precisely centered to guarantee uniform temperatures and long life.
Sheath:
SUS 304 stainless steel.
Insulation:
We use only high purity agnesium oxide (MgO), compacted to a carefully predetermined and closely monitored density. This assures high dielectric strength and fast heat transfer.
Lead wire:
high temperature, flexible and fray-resistant wire available from certified suppliers.
Application:
1. Plastic processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
The tubular heaters are mainly used in aerospace, petrochemical, rubber and plastic industries, and the like. It can be used to heat still or flowing air, water, oil, nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long lifetime, and high thermal efficiency, reliable and safe operation and so on.
Reference parameter table:
| Model | Diemension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
| LK-GZ- Φ12x1000 | Φ12x1000 | 220 |
2000 | 1. Use Condition: environment temperature -20 to +60°C. |
| LK-GZ- Φ14x1500 | Φ14x1500 | 220 |
3000 | 2. Leakage current: <0.5MA |
| LK-GZ- Φ16x2000 | Φ16x2000 | 220 |
4000 | 3. Insulation resistance: ≥ 5MΩ |
| LK-GZ- Φ20x1600 | Φ20x1600 | 220 |
4500 | 4. Ground resistance: <0. 1 Ω |
| Note: all our products made customized,we can make it according to your details! | 5 Temperature endurance: 100-1200 °C | |||
| Packaging Detail: | Plycase or paper carton |
Customized service
One year warranty period
Professional purchasing guid
Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.
DragonPower had passed CE ,Rohs,ISO ,SGS certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.
Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.
Order Guide:
* It’s better to provide us with the drawings/pictures or technical details
