Low FOB T8 LED Tube Light, T8 Fluorescent Tube Light,LED Tube

Low FOB T8 LED Tube Light, T8 Fluorescent Tube Light,LED Tube photo-1

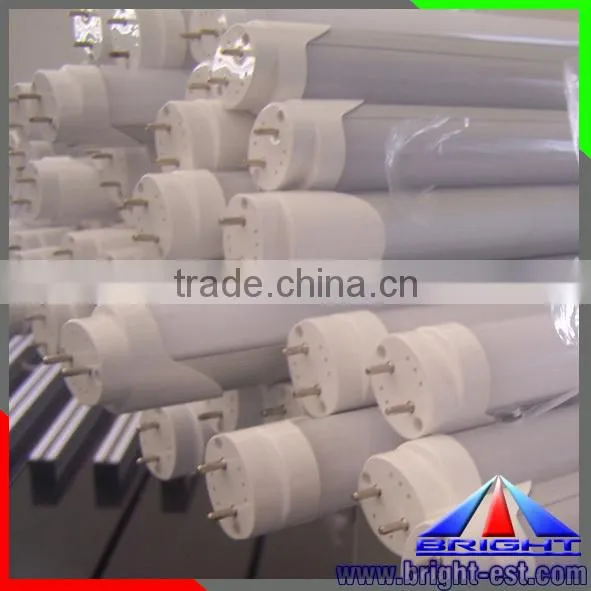

Low FOB T8 LED Tube Light, T8 Fluorescent Tube Light,LED Tube photo-2
Low FOB T8 LED Tube Light, T8 Fluorescent Tube Light,LED Tube photo-3
Low FOB T8 LED Tube Light, T8 Fluorescent Tube Light,LED Tube photo-4
US$ 5 - 50 MOQ: 25 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
100-240
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD2835
Warranty(Years) 3
Input Voltage(V) 100-240
Lamp Power(W) 10
Lamp Luminous Flux(lm) 800
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE
Place of Origin Guangdong, China
Brand Name Bright
Model Number T8

Specifications

T8 fluorescent tube light
1. 85-265V T8 Tube
2. Super high SMD3528/3014 LED
3. 50,000hrs
4. 5 years warranty



T8 fluorescent tube light, T8 Tube " TÜV" LED Lighting:

We have different size: 300mm , 600mm, 900mm, 1200MM, 150MM, 2400MM.

Description



LED Fluorescent Tube has a delicate shape, replacement of common fluorescent tube, it’s doesn’t needs to  change circuit; adopt aluminum alloy as base, the shine side uses PC tube(transparent PC, ivory white frosted PC and strip PC available), The above picture is aluminum + transparent PC, diameter is φ 26mm .



T8 Light Parameters

Item NO

Wattage (W)

LED

(pcs)

Dimension

(mm)

Luminous

Flux

(LM)

Luminous Intensity

LUX

Weight(kg)

Lamp cap

Packing

(mm)

BG-409-T8-8W

8W

144

φ26x602

792

130

0.16

G13

713*230*230



Light Source

Input Voltage

Color Rendering Index

Efficacy

Work Frequency

Constant Circuit Error

Static Power Consumption

Super Brightness LED

AC85-265V

>75%

.85%

25KHZ

<2%

<0.5W

Work Temperature

Storage Temperature

Open Protection

Short Circuit Protection

Microwave/Noise

Power

Factor

Lifespan

-20 -85°C

0°C -65°C

OK

OK

<240mV

>90%

30000H



Installment Instruction(T8 holder,electronic holder,inductance holder,Japanese Ballast type Holder)

1,inductance holder installment

To unsling starter from the light before installment, fit on led Fluorescent Tube and then it lighting, the ballast could retain

2,electronic holder installment
You need to separate electric lamp holder, and remove off the inside circuit. Keep Corridor by wire, That will be OK in according with LED fluorescent installation using principle.
3,Ballast type holder installment
You need remove off the ballast and keep the path by wire. That will be OK in according with LED fluorescent installation using principle.



Luminous Intensity Graph

illumination(LUX)

distance(CM)

below

deviated 1M

deviated 2M

50CM

850

35

6

100CM

210

60

13

150CM

130

62

20

200CM

70

56

24

300CM

50

32

19

Remarks: The above figures are measured based on single transparent lamp pipe 90-degree angle,for reference only.



Recommend Application Places



Uses widely in production line, station, office, family lighting, school, hospital, underground parking lot, warehouse, supermarket, advertisement lighting etc.



After Sales Service



Our LED Fluorescent Tube has three years guarantee time,Artificial damage or disconnected are out of the guarantee scope.
