Photosensor for Aviation Warning Light
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
IP Rating:
IP65
Lamp Body Material:
Aluminum Alloy
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JB02 Junction Box for Aircraft Warning Light/FAA L-810 Obstruction Light/Aviation Warning LightUS$ 0.1 - 99MOQ: 1 Piece -
Control Box for Aviation Warning LightUS$ 0.1 - 499MOQ: 1 Piece
-
MBL10 Flange Mounting Pole for Low Intensity Aviation Obstruction LightUS$ 9 - 99MOQ: 1 Piece
-
JB04 Junction Box for Aircraft Warning Light/ICAO Obstruction Light/Aviation Warning LightUS$ 0.1 - 99MOQ: 1 Piece
-
TY32D Double LED Solar Powered Aircraft Obstacle Light/aviation Warning Light(Type B)US$ 0.1 - 999MOQ: 1 Piece
IP Rating
IP65
Lamp Body Material
Aluminum Alloy
Place of Origin
Shanghai, China
Brand Name
LANSING
Model Number
PHC01
Obstruction light Photosensor
Aviation obstacle light photocell
On/off switch for aircraft warning light
navigation photosensor

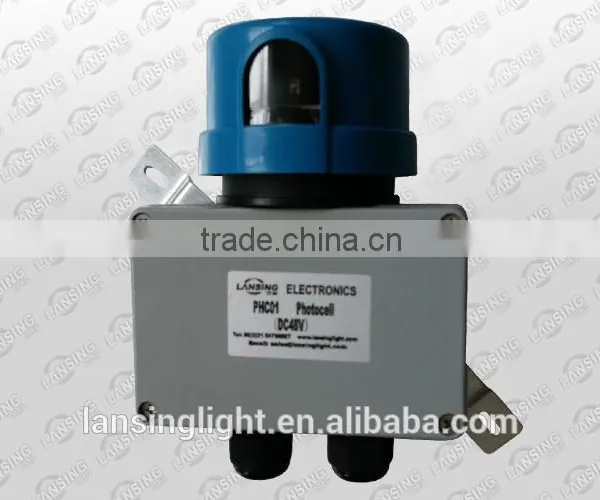

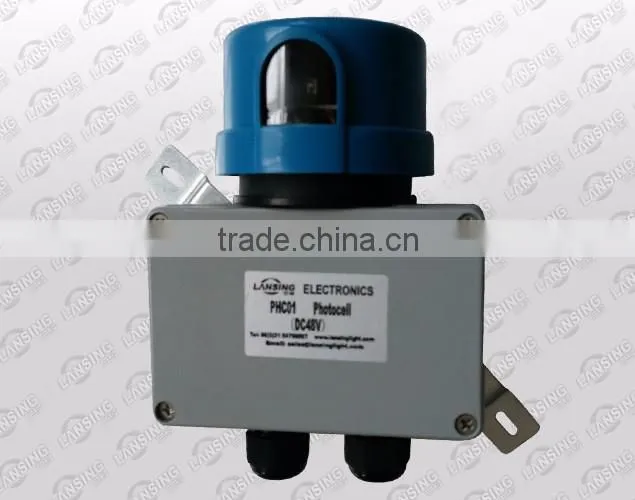

PHC01 Photocellfor aircraft warning light
Product Description
Photocell, also known as photo sensor, is a device to detect environment intensity illumination. It is often used in street light system and obstruction light system. When working in an obstruction light sytem, it can turn the light on at dusk & turn off the light at dawn, automatically.
The installation will requires it face north sky, a top of Base Station or on steel tower. It is also important that there is no other light source disturbance around the photocell in order to keep it working right.
Functions Features
- An auto swith for street light&obstruction light.
- Delay response prevents false switching due to light from vehicles lighting, etc.
- Regulated voltage and silicon photocell maintain accurate turn on/off control points
- Low power consumption through a unique regulator circuit, resulting low internal temperature rise which also ensures longer serving lifetime.
Description |
Parameter |
Operation voltage |
Input: 12-60VDC, 120-277VAC
(It should keep the same voltage as control panel when working in OB light system)
|
Output: 18-65VDC |
|
Maximum load |
1000 watt/1800VA |
Life cycle |
5000 operations mininum(about 13 years) |
On/off |
70/100 lux |
Delay Time |
3 to 5 seconds |
Dielectric strength |
5000 volts between current carrying parts and metal surfaces |
Ambient Temperature |
-40-+70C |
Photocell |
Cadmium sulphide(cds) |
