IEC60695 20N Ball Press Testing Equipment & Cord Ball Pressure Tester
US$ 120 - 600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZCX
Model Number:
CX-BP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IEC60695 20N Ball Pressure Test Equipment for Samples Heat TesterUS$ 120 - 600MOQ: 1 Piece -
IEC60068-2-750.70J Spring Impact Hammer TestingUS$ 280 - 2,300MOQ: 1 Piece
-
Digital Electronic Tensile Test MachineUS$ 100 - 200MOQ: 1 Set
-
IEC60061 IEC60968 Digital Lamp Cap Torque Test ApparatusUS$ 100 - 400MOQ: 1 Set
-
IEC60884-1 Control Low-temperature Automatic Impact Testing Machine / Charpy Impact TesterNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
SZCX
Model Number
CX-BP
Power
Electronic
Usage
Plastic Testing Machine
IEC60695 20N ball press testing equipment & cord ball pressure tester
Specifications
Ball Pressure Test for Fire Hazard testing is one of the methods to test the heat resistance of non-metallic materials.

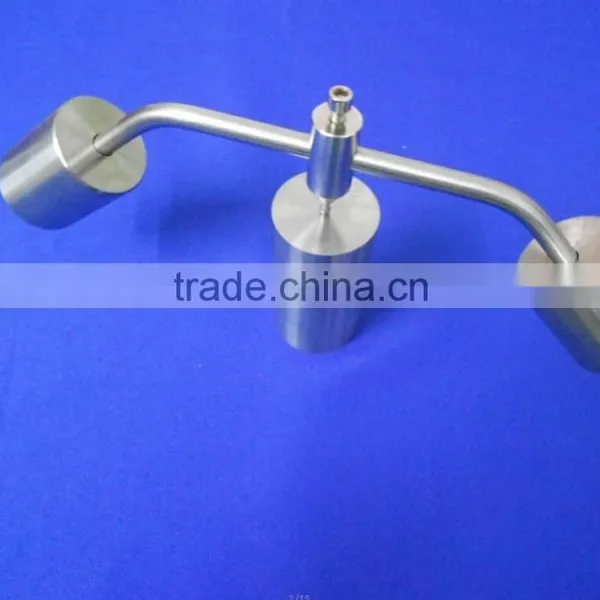

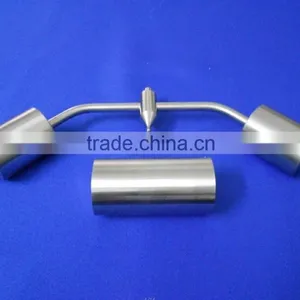

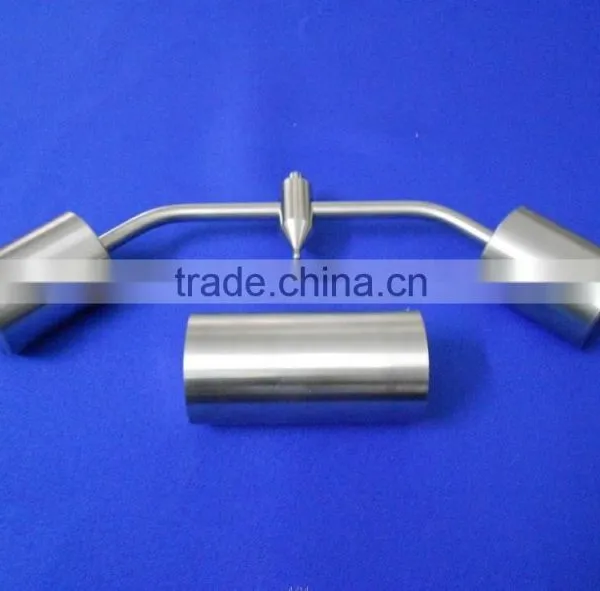

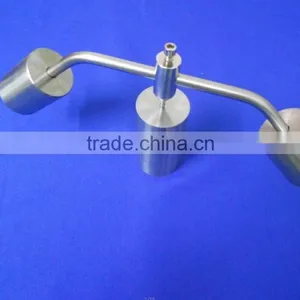

Ball Pressure Apparatus IEC60695
Construction:
- ball holder with bore and clamping screw for the bow
- Precision 5mm pressure ball
- Thermocouple for the test stand
- Nickel plated steel materials for good thermal stability
Technical Parameters:
| Ball diameter | 5mm (R2.5mm) |
| Total test pressure | 20N±0.2N |
| Samples bearing | diameter 50mm, length 100mm, solid stanless steel cylinder |
| Production of materials | all used stainless steel materials |
| Remark | Ball pressure instrument takes another a hot box (oven) supporting the use. |
Conforms to standard:
IEC60238, IEC60309, IEC60320, IEC60335, IEC60598, IEC60601, IEC60669, IEC60670, IEC60745, IEC60884, IEC60950, IEC60998, IEC61058, IEC61558.
