The Bent Offset printer of DAKE-250T barrel printer machine
Company profile:
Shanghai DAKE Machinery co., ltd was founded in1999 ,and our main product are The Bent Offset Printer, The Coiling machine, The Thermoforming Machine, Extrusion Line and Mould. We integrate developing, producing ,selling and service as a whole. We preserve in the prosecution tenet of “survival on quality, development on innovation and winning credit on consummate service”, and we pay much attention to clients’feedback.Our company has strong technical strength, advanced equipment , excellent staff, and consummate after-sale service system and import&export rights. Our products sold all over the world.
1,USE
Model DAKE-250T Automatic Plastic Barrel Printer is used for printing plastic barrel which is six or nine colors.
2,Characteristic of machine
a. Very quick change over of mandrels
b. Automatic equip UV on-mandrel curing system
c. Controlled by frequency conveniently and quickly
d. Checking accurately, conveniently and quickly
e. Control and error check
f. Layer printing effects
g. Corona before printing
e. Color station opening structure
3, Main parts of the equipment
DAKE- Bent Offset Printer for buckets is the type of machine which enter into cups by 45 degrees, and lay cups levelly in a line, standard printing. It is widely used for plastic cups, bowls, and barrel as well as pipes and so on. The whole device is composed of the feeding frame, in&out-cup frame, separate tanks, performance dealing, oil ink drying and main head of the machine etc.
4,Main Technical parameters
Model |
DAKE-250T |
Colors |
6 or 9 |
Total power |
25KW |
Air consumption |
0.5m³/min |
Barrel taper |
2°-10° |
Diameter of rim |
dia100-250mm |
Printing area max |
Dai100*h120mm |
|
Automatic |
Plate Type |
Letterpress |
Printing speed highest |
135pcs/min |
Curing system |
Location UV |
Machinery size |
3m*2.8m*2.8m |
Weight |
6.2T |
5,Others
Place of origin |
Shanghai, China (Mainland) |
Shipment |
FOB to SHANGHAI PORT |
Payment |
By T/T or Cash |
Delivery Date |
30 Days |
After-sales Service Provided |
Engineers available to service machinery overseas |

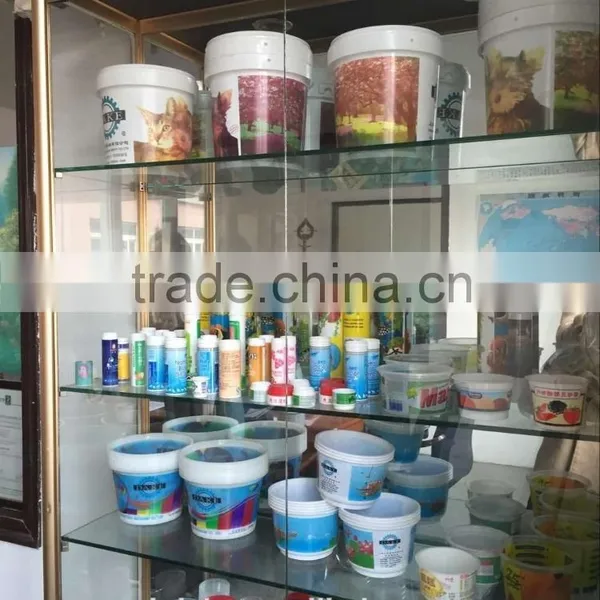

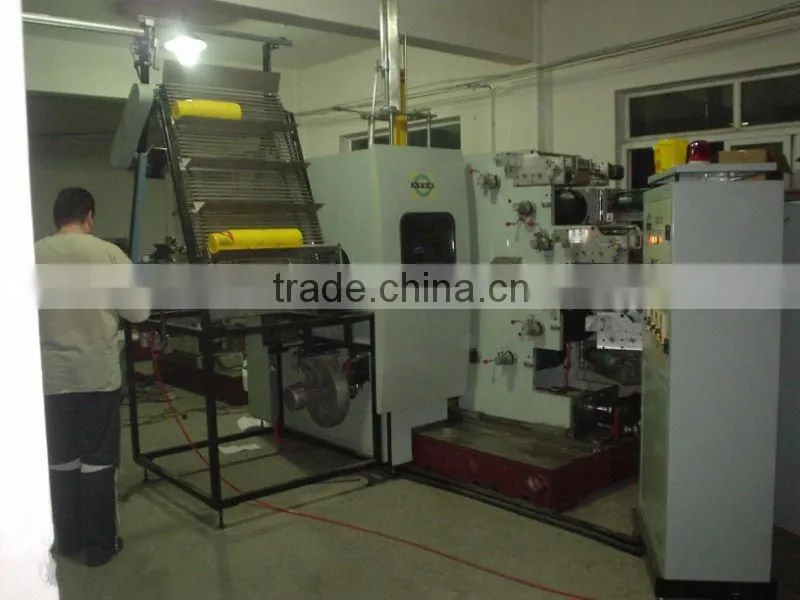

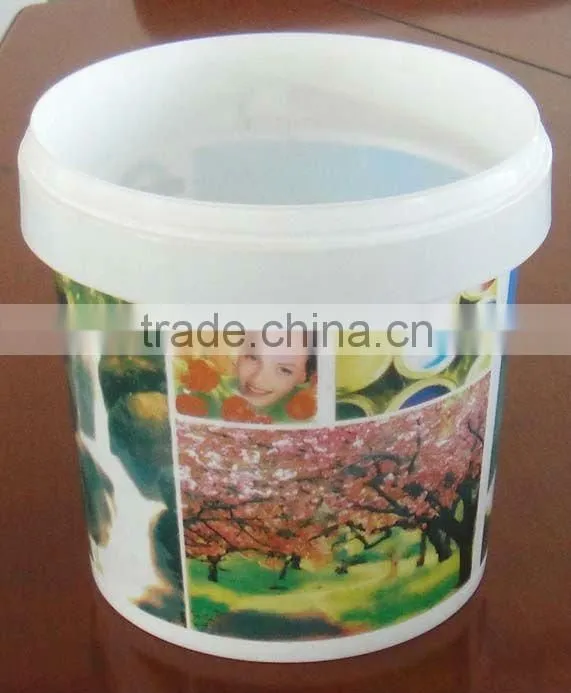

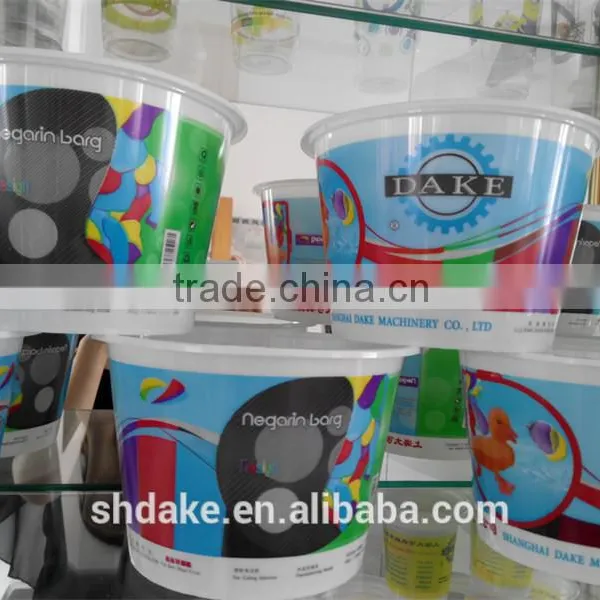

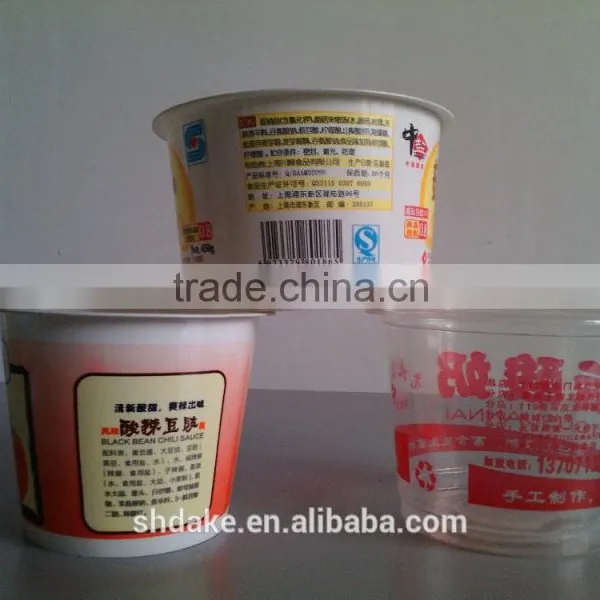

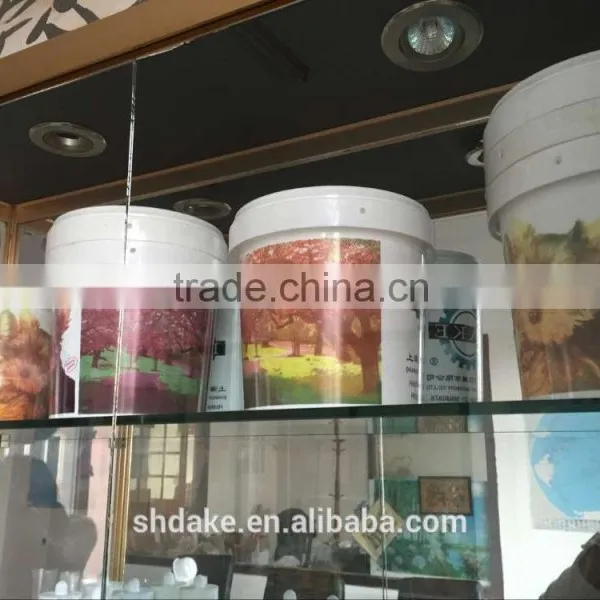

6, Pictures
Shanghai DAKE Machinery co., ltd
ADD:No.4685Fujin Road, Baoshan District, Shanghai .China
Fax:0086-21-36133258
Tel:0086-21-56680978
