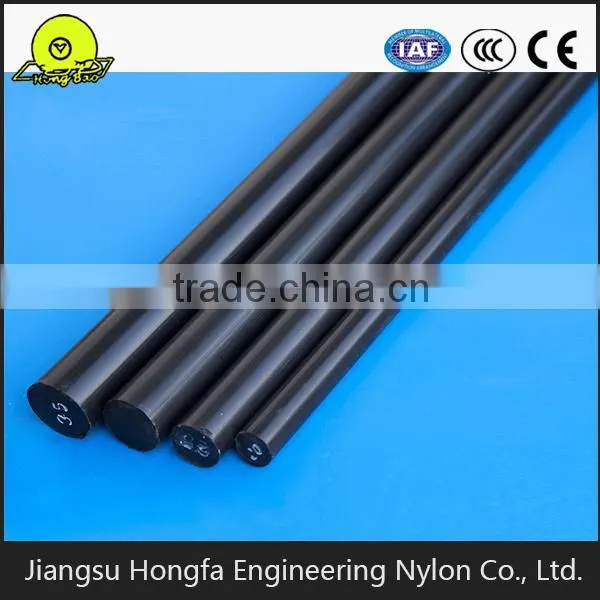

MC nylon rod diameter plastic rod hard plastic rod
MC Nylon Rod (PA6) also named Monomer Casting Nylon is a engineering plastic rod which is widely usded in all industrial area . It’s light,high strength,wear-resisting,insulating and so on. So it is mainly used as gears and parts,chemical machinery,electric parts,automobile parts,chemical equipment,etc…
| Category | Performance | Units (conditions) | Numerical | ||
| Physical Performance | Density | g/cm3 | 1.14~1.16 | ||
| Water Absorption | % | 0.9 | |||
| Thermal Performance | Martin Heat Resistance | ℃ | 67~74 | ||
| Highest temperature | ℃ | 120 | |||
| Minimum temperature | ℃ | -40 | |||
| Distortion Temperature | ℃ | 120 | |||
| Heat Conductivity Coefficient | w/m .℃ | 0.28~0.29 | |||
| Coefficient of linear expansion | 10-5/℃ | 4~7 | |||
| Combustibility | self-extinguish | ||||
| Mechanical Performance | Tensile Strength | Mpa > | 75 | ||
| Elastic Tensile modulus | 104Mpa | 0.392(40000) | |||
| Compressive Strength | Mpa > | 100 | |||
| Bending strength | Mpa > | 140 | |||
| The impact strength (no gap) | KJ/m2 > | 510 | |||
| Elongation | % | 20 | |||
| Hardness | HPM(*) > | 80~90 | |||
| Fatigue Strength | 107kg/cm2 | 200 | |||
| Friction Coefficient | oil-free lubrication | 0.09~0.3 | |||
Advantages
1. High strength and stiffness
2. High impact and notch impact strength
3. High heat deflection temperature
4. Good at dampening
5. Good abrasion resistance
6. Low coefficient of friction
7. Good chemical stability against organic solvents and fuels
8. Excellent electrical properties, ease of printing and dyeing
9. Food safe, noise reduction
30 Years of production experience
Established in 1986, Jiangsu Hongfa specializes in researching, developing and manufacturing different kinds of Special Casting Nylon and composite reinforced nylon.
Various kinds of products
The company can provide steel frame reinforced nylon pipe, MC nylon pipe, nylon gear, nylon bushing, nylon pulley, nylon machine tool shield and etc.
Comprehensive quality management system
The company approved by GB/T 19001,ISO9001.2000, and has the professional QC team which can control the raw material purchase, products production, and after service.
